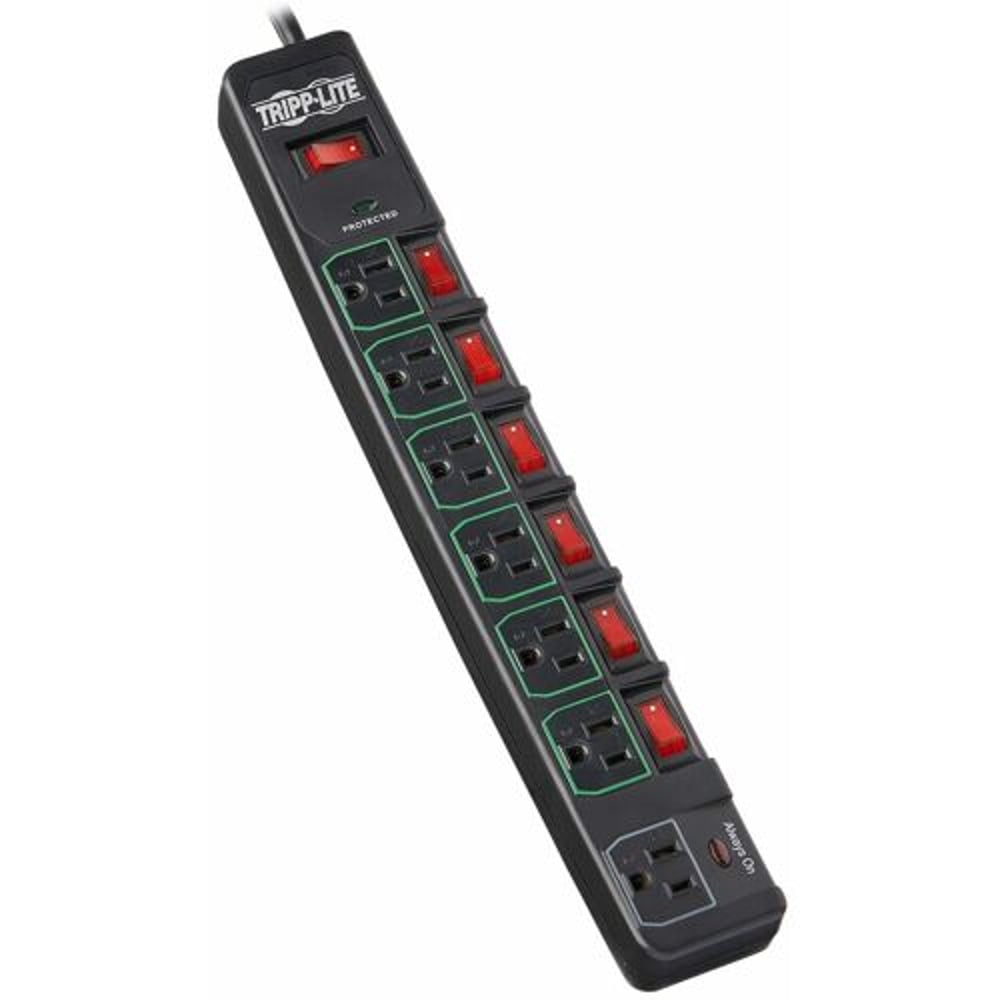

Eaton TLP76MSGB – 7-Outlet ECO-Surge Protector with Outlet Control

Product Overview

The Eaton TLP76MSGB is a 7-outlet ECO-Surge protector with individually controlled outlets, giving AV integrators and facilities teams an energy-saving surge protector for conference room and workstation installations. Rated at 1080 joules, six of its seven outlets can be switched off independently to cut standby power draw from displays, peripherals, and idle AV equipment, while one always-on outlet keeps essential devices powered. It functions as a commercial-grade surge protector for data closet, credenza, or desktop deployment wherever both surge protection and outlet-level power management are needed.

Product Description

The TLP76MSGB addresses a common facilities request: reduce phantom power draw from AV equipment and peripherals without adding a separate power management system. Six of the seven NEMA 5-15R outlets have individual on/off switches, so a technician can power down a projector, secondary display, or docking station when a room isn't in use while leaving the seventh outlet — typically reserved for a network switch, control processor, or other always-on device — continuously powered. The 1080-joule surge rating with sub-1-nanosecond response time provides more headroom than baseline surge strips, suiting AV racks and workstation clusters with multiple connected devices. A 14 AWG, 6-ft. cord gives installers reach into credenzas or under conference tables, and the compact housing accommodates up to four bulky transformer plugs alongside standard cords. As an energy-saving surge protector for conference room and shared workstation environments, the TLP76MSGB pairs surge protection with outlet-level control that helps facilities teams manage standby power costs across a fleet of rooms.

Key Features

• 1080-Joule Surge Suppression — Provides extra protection headroom for AV racks and multi-device workstation clusters.
• 6 Individually Controlled Outlets — Lets technicians power down idle equipment outlet-by-outlet to cut standby energy use.
• 1 Always-On Outlet — Keeps network switches, control processors, or other critical devices powered continuously.
• Sub-1-Nanosecond Response Time — Reacts fast enough to shield connected electronics from surge events.
• 6-ft. Cord — Reaches into credenzas, under tables, or across data closet racks.
• Accommodates Bulky Transformer Plugs — Fits up to 4 oversized power adapters without blocking adjacent outlets.
• Lifetime Limited Warranty with $25,000 Insurance — Covers the unit and connected equipment in the U.S., Canada, and Puerto Rico.

Technical Specifications
