Eaton SUINT3000LCD2U – 3000VA Double-Conversion Rack UPS
Eaton SUINT3000LCD2U – 3000VA Double-Conversion Rack UPS is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

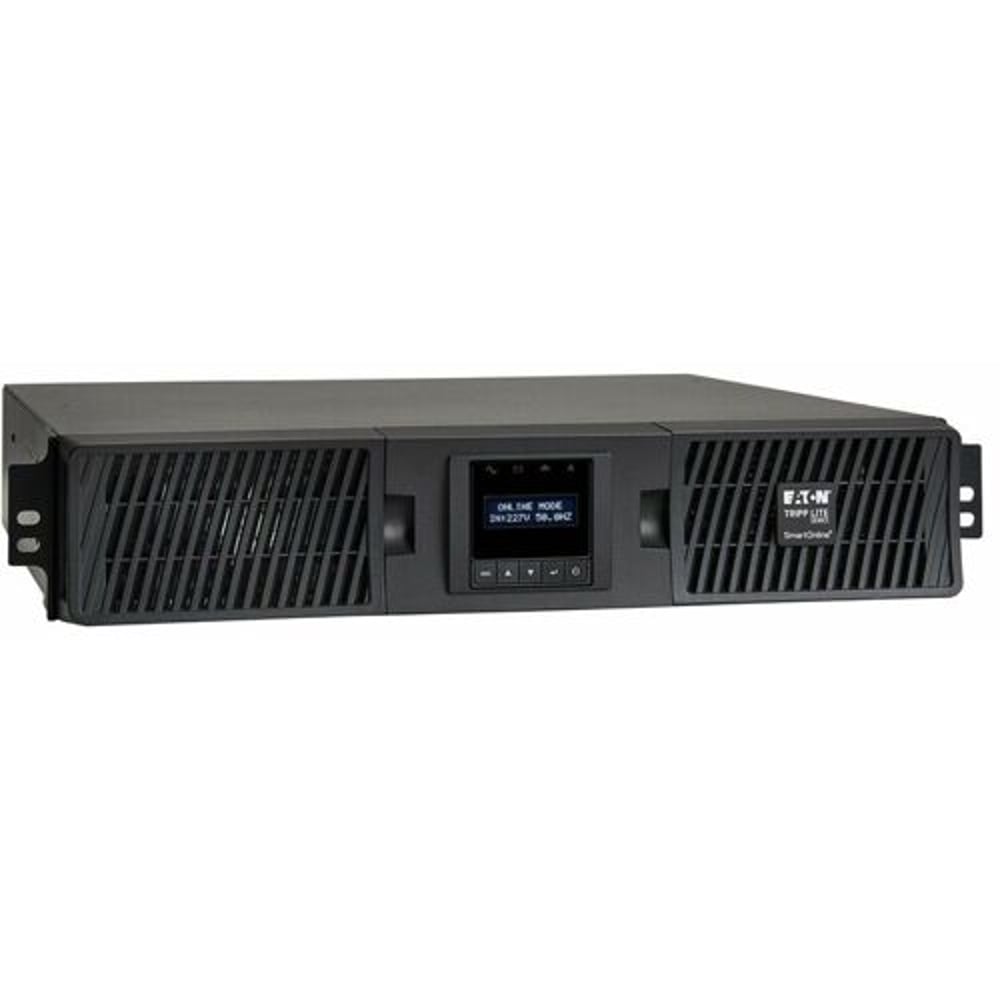

Eaton SUINT3000LCD2U – 3000VA Double-Conversion Rack UPS
Product Overview
The Eaton SUINT3000LCD2U is a 3000VA/2700W double-conversion online UPS designed for facilities that need a double-conversion UPS for AV rack and network equipment where zero transfer time and clean sine wave output are non-negotiable. Operating on 208/230V input, it is well suited for commercial UPS battery backup installation in data closets and equipment rooms feeding higher-voltage AV and IT infrastructure. Because it continuously regenerates output power rather than switching to battery, it is a preferred choice for an online UPS for commercial AV rack deployments protecting DSP processors, matrix switchers, and network core equipment.
Product Description
The SUINT3000LCD2U uses double-conversion (online) topology, meaning connected AV and IT equipment is always powered from the UPS's inverter rather than raw utility power, eliminating any transfer delay when the utility fails. This makes it a strong fit for a double-conversion UPS for AV rack deployment where processors and switchers cannot tolerate even momentary power interruption. The unit provides 10 total outlets, 8 IEC C13 and 2 IEC C19, in a 2U rack/tower chassis, giving integrators flexibility to power a mix of AV amplifiers, network switches, and higher-draw equipment from a single unit. An LCD front panel displays load, battery status, and input/output conditions at a glance, useful for facilities staff performing routine checks in a data closet. The UPS includes a network card slot, USB, and RS-232 ports for integration with building monitoring systems, along with RPO/ROO remote shutdown terminals commonly required in commercial UPS battery backup installation projects with centralized emergency power-off requirements. The VRLA battery is expandable with external battery modules for facilities needing longer runtime, positioning this unit as a capable online UPS for commercial AV rack and network infrastructure applications where uptime is the priority.
Key Features
- Double-Conversion (Online) Topology — Provides zero transfer time by continuously regenerating output power, protecting sensitive AV processors from even brief interruptions.
- 10 Total Outlets (8x C13, 2x C19) — Accommodates a mix of AV and networking equipment power cords in a single rack unit.
- 208/230V Multi-Voltage Input — Supports flexible commercial power configurations common in AV equipment rooms.
- LCD Status Display — Gives facilities staff at-a-glance visibility into load, battery, and power conditions.
- Network Card Slot — Accepts an optional SNMP card for centralized remote monitoring.
- RPO/ROO Remote Shutdown Terminals — Integrates with building emergency power-off systems required in many commercial installations.
- Expandable Battery Runtime — Supports external battery modules for facilities requiring longer ride-through time.
- 2U Rack/Tower Chassis — Fits standard equipment racks or freestanding deployment in a data closet.
Typical Applications
- Government space data and communications rooms
- Commercial meeting space AV infrastructure
- Broadcast studio equipment racks
- Auditorium AV and control system racks
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 3000VA / 2700W |
| Topology | Double-conversion (online) |
| Input Voltage | 200/208/220/230/240 VAC |
| Outlets | 8x IEC C13, 2x IEC C19 (10 total) |
| Dimensions (W x H x D) | 17.33 in x 3.41 in x 23.82 in |
| Weight | 61.29 lb |
| Runtime (full load / half load) | 3.8 min / 10.8 min |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Communication | USB, RS-232, RPO/ROO terminal, network card slot |
| Warranty | 2-year limited, worldwide |
Frequently Asked Questions
What makes this UPS different from a line-interactive model?
The SUINT3000LCD2U uses double-conversion (online) topology, meaning it continuously regenerates output power rather than switching to battery, resulting in zero transfer time during a utility failure.
What outlet types does this UPS provide?
It provides 10 total outlets: 8 IEC C13 and 2 IEC C19, suitable for mixed AV and networking equipment loads.
Is this unit compatible with 208V commercial power?
Yes, it accepts input at 200, 208, 220, 230, or 240 VAC, making it suitable for commercial buildings running higher-voltage circuits to equipment rooms.
Can this UPS integrate with building emergency power-off systems?
Yes, it includes RPO/ROO remote shutdown terminals for integration with facility emergency power-off requirements.
How is the UPS monitored remotely?
An optional network card slot supports SNMP-based monitoring, in addition to onboard USB and RS-232 ports.
What is the warranty coverage?
The unit carries a 2-year limited warranty, honored worldwide.
Can runtime be extended beyond the built-in battery?
Yes, the unit supports external battery modules for facilities that require longer runtime during extended outages.
