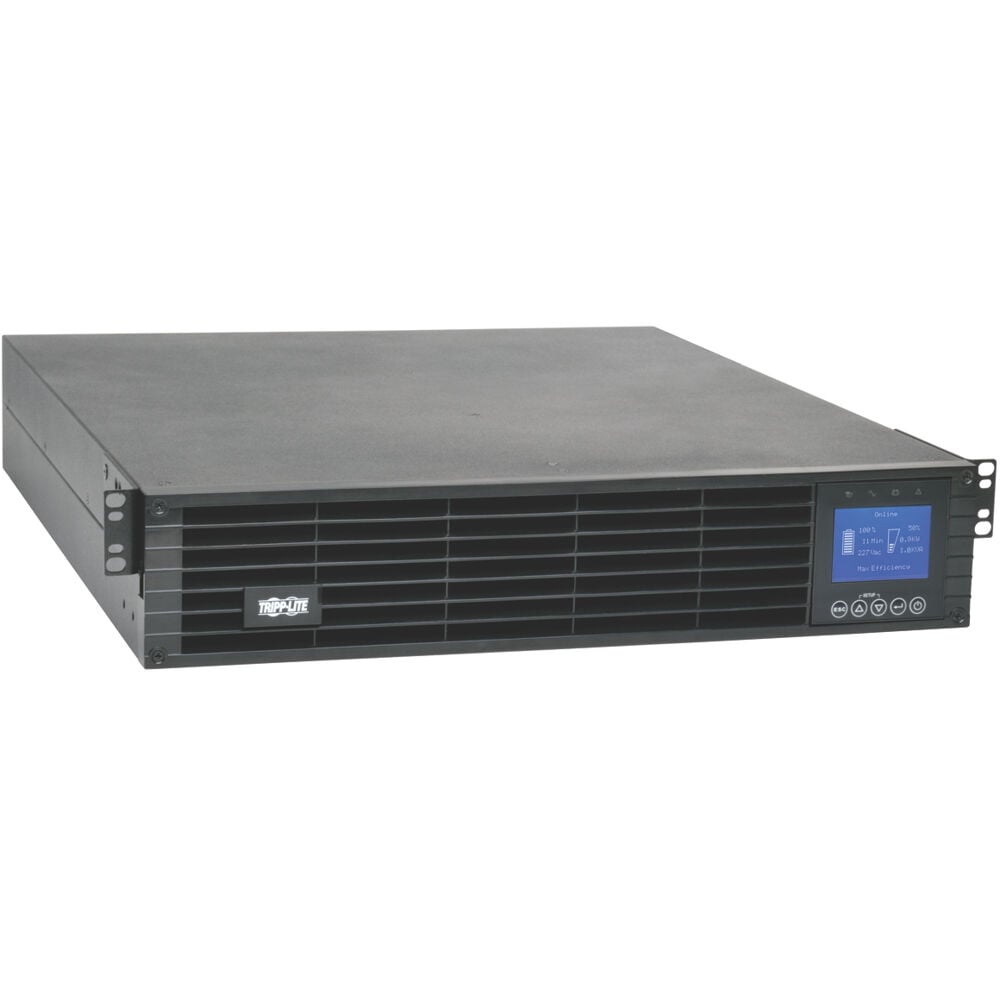

Eaton SUINT2200LCD2U – 2200VA Online Double-Conversion Rackmount UPS

Product Overview

The Eaton SUINT2200LCD2U is a 2200VA/1980W online double-conversion UPS built for 208/230V commercial and international deployments, making it a rack-mount UPS for AV rack and data closet installations outside standard North American voltage. As an online double-conversion UPS for data closet and equipment room use, it isolates connected servers, AV control processors, and network switches from utility power entirely, delivering pure sine wave output with zero transfer time. Its 2U rack/tower chassis and dual load-bank design suit boardrooms, government facilities, and commercial meeting spaces running 230V infrastructure that need dependable commercial UPS battery backup installation without downtime risk.

Product Description

The SUINT2200LCD2U converts incoming 200-240V AC to DC and back to a clean, regulated sine wave, so equipment on the output side never sees a raw utility waveform — a meaningful advantage in AV racks or IT closets fed by generators, older building wiring, or unstable local grids common outside North America. Eight C13 and two C19 outlets split across two independently switchable load banks let an integrator sequence non-critical loads (displays, auxiliary lighting) separately from critical loads (control processors, network switches, DSP units) during a graceful shutdown. The front-panel LCD reports load, battery status, and input/output voltage without needing a laptop connected. At full 2000W load the internal battery delivers roughly 6 minutes of runtime — enough for an orderly shutdown or generator transfer — and the design accepts up to four external battery modules for sites that need longer ride-through. USB and RS-232 ports ship standard, with an optional WEBCARDLXE network card available for SNMP monitoring from a building management or AV control system. At 2U and a 26.8-inch rack depth requirement, this is a rack-mount UPS for AV rack cabinets, data closets, and equipment rooms running international voltage, and it functions equally well as a commercial UPS battery backup installation for standalone tower placement next to a rack.

Key Features

• Online Double-Conversion Topology — Continuously regenerates output power so connected equipment never experiences a transfer event during a utility outage.
• 208/230V International Voltage Support — Accepts and outputs 200-240V nominal, matching electrical infrastructure outside North America.
• Two Independently Switchable Load Banks — Allows sequenced shutdown of non-critical devices to extend runtime for critical AV or IT equipment.
• Ten Total Outlets (8x C13, 2x C19) — Powers a mix of servers, network switches, and rack-mount AV processors from a single unit.
• Front-Panel LCD Display — Shows real-time load, battery, and voltage status for on-site diagnostics.
• Expandable Battery Runtime — Supports up to four external battery modules for extended ride-through beyond the internal 6-minute full-load runtime.
• USB, RS-232, and Optional SNMP Card — Integrates with building management or AV control systems for remote monitoring and automated shutdown.

Typical Applications

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the SUINT2200LCD2U compatible with 120V North American equipment?

No. This model is built for 200-240V input and output. For 120V AV racks in North America, use a domestic-voltage Eaton SmartOnline model such as the SU2200XLCD instead.

Can this UPS be rack-mounted in a standard AV equipment rack?

Yes. It ships in a 2U rack/tower chassis compatible with standard 19-inch rack rails, provided the rack has at least 26.8 inches of usable depth.

How is this UPS integrated with an AV control system?

The unit includes USB and RS-232 ports for direct monitoring, and accepts an optional WEBCARDLXE network card so control processors or building management platforms can poll status and trigger scheduled shutdowns over SNMP or the network.

How long will connected equipment run during a power outage?

At full 1980W load, internal battery runtime is approximately 6 minutes — sufficient for an orderly shutdown sequence. Runtime can be extended with optional external battery modules.

What warranty does Eaton provide on this UPS?

The SUINT2200LCD2U carries a 2-year limited warranty, with optional connected equipment insurance coverage up to $250,000 available in eligible regions.

Does Creation Networks provide installation support for rack UPS deployments?

Yes. Our team can advise on rack placement, load bank configuration, and network card setup as part of a commercial UPS battery backup installation for your project.
