Eaton SU3000RTXLCD2U – 3000VA Online Rackmount UPS, 2U

Product Overview

The Eaton SU3000RTXLCD2U is a 3000VA/2700W online double-conversion UPS built for mission-critical AV racks, broadcast equipment, and data closet installations that cannot tolerate a power interruption. As a rackmount UPS for AV rack deployments needing high output capacity, its 2U chassis and dual switchable load banks make it a strong fit for larger conference rooms, auditoriums, and broadcast studios running dense equipment stacks. With zero transfer time and expandable battery runtime, it functions as a dependable commercial UPS battery backup installation wherever downtime isn't an option.

Product Description

The SU3000RTXLCD2U scales Eaton's SmartOnline double-conversion platform up to 2700W of continuous output, sized for AV racks carrying multiple displays, amplifiers, matrix switchers, and control processors rather than a single low-draw device. Seven outlets — six 5-20R plus one L5-30R — are organized into two independently switchable load banks, letting an integrator shed non-critical loads first during an extended outage while keeping core signal processing and network equipment powered. At full 2700W load the internal battery provides about 4.8 minutes of runtime, rising to 13.9 minutes at half load, and the unit accepts up to four optional external battery modules for sites needing longer bridge time to generator power. A front-panel LCD reports real-time status, and included USB and RS-232 connections support direct monitoring, with an optional WEBCARDLXE network card available for SNMP-based facility integration. The 2U rack/tower chassis fits standard AV racks in auditoriums, broadcast studios, and large conference rooms where equipment density is high and reliability requirements are strict. For teams standardizing on a rackmount UPS for AV rack systems across multiple rooms, the SU3000RTXLCD2U offers the headroom needed for larger installs without stepping up to a permanently installed 3-phase system.

Key Features

• 3000VA/2700W Online Double-Conversion Capacity — Supports dense AV racks with multiple displays, amplifiers, and processors on continuously regenerated power.
• Two Independently Switchable Load Banks — Enables sequenced shutdown of non-critical equipment to extend runtime for core systems.

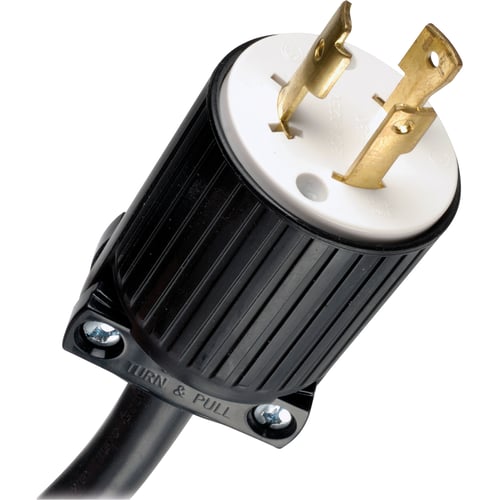

• Seven Outlets (6x 5-20R, 1x L5-30R) — Accommodates a mix of standard and high-draw AV and IT equipment.
• Expandable Battery Runtime — Supports up to 4 optional external battery modules beyond the internal 4.8-minute full-load runtime.

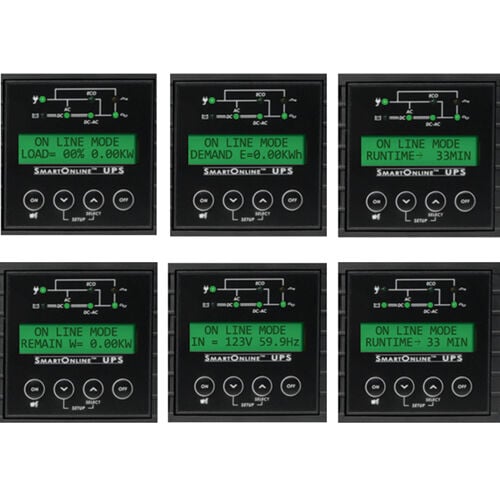

• Front-Panel LCD Display — Provides real-time load, voltage, and battery status without a separate monitoring device.
• USB, RS-232, and Optional SNMP Card — Integrates with control systems and facility monitoring platforms.
• Extended Service Plans Available — 5-year extended service options supplement the standard warranty for long-term installations.

Typical Applications

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

How much AV or IT load can this UPS support?

The SU3000RTXLCD2U supports up to 2700W continuous, enough for a densely populated AV rack with multiple displays, amplifiers, and processing equipment.

Does this UPS mount in a standard 19-inch AV rack?

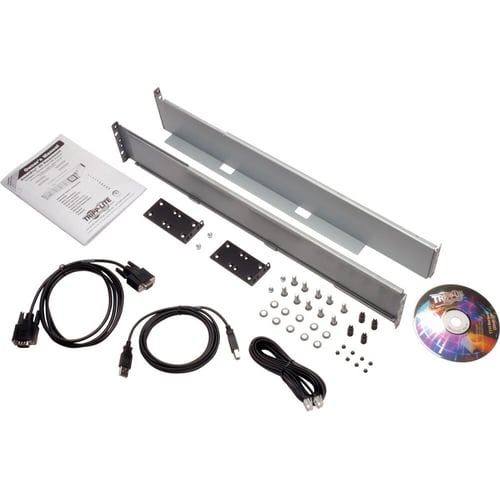

Yes. It ships in a 2U rack/tower chassis compatible with standard rack rails and can also be used as a freestanding tower.

How long will it power equipment during an outage?

At full 2700W load, expect approximately 4.8 minutes of runtime; at half load, approximately 13.9 minutes. Optional external battery modules extend that further.

Can this UPS integrate with a control system or network monitoring platform?

Yes. USB and RS-232 ports are included, and an optional WEBCARDLXE network card adds SNMP monitoring for integration with a control processor or building management system.

What warranty and support options are available?

The unit includes a 2-year limited warranty, with 5-year extended service plans available and optional $250,000 connected equipment insurance in eligible regions.

Is this UPS suitable for a broadcast studio or auditorium install?

Yes. Its 2700W capacity and expandable battery runtime make it appropriate for the equipment density typical of broadcast studios, auditoriums, and large conference rooms.

Can Creation Networks help plan the rack layout and battery sizing?

Yes. Our team can review your equipment load and room requirements to confirm capacity, runtime, and rack placement before installation.
