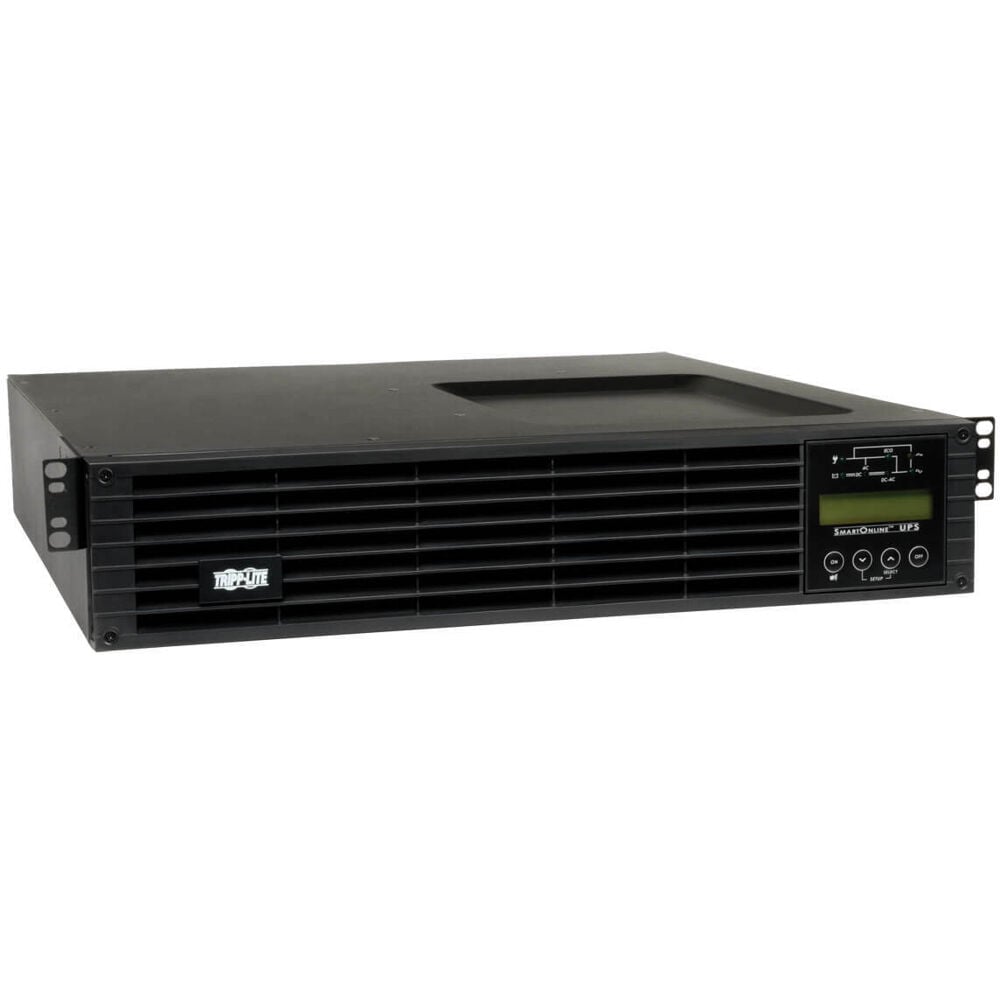

Eaton SU2200RTXLCD2U – 2200VA Online Rackmount UPS

Product Overview

The Eaton SU2200RTXLCD2U is a 2200VA/1800W online double-conversion UPS designed for higher-load AV racks, data closets, and commercial equipment rooms. As an online rackmount UPS with zero-transfer-time protection, it supports commercial UPS battery backup installation for racks carrying multiple switches, matrix switchers, and rack-mounted amplifiers. The 2U rack/tower unit provides seven outlets, an LCD status display, and a network card slot, making it well suited to double-conversion UPS for AV equipment rack projects where load density is higher than a typical single-device installation.

Product Description

The SU2200RTXLCD2U supplies 2200VA/1800W of true sine wave power using online double-conversion topology, which keeps connected equipment running from a continuously regenerated waveform rather than a switched source. This is an important distinction for a 2U rackmount UPS with LCD display serving a rack carrying multiple pieces of sensitive AV or network equipment, since even a momentary transfer gap can reset processors or interrupt signal chains. The unit accepts 100/110/120 VAC input and holds output regulation to ±1% in line mode, which helps stabilize power quality in commercial buildings with variable utility conditions. Its 2U rack/tower chassis includes both rack rails and tower support stands for flexible mounting in an equipment rack or as a standalone tower in a data closet. Seven outlets, comprising six 5-20R receptacles and one L5-20R, accommodate higher-current rack devices alongside standard equipment on the same unit. The front-panel LCD reports load percentage, input/output voltage, and battery status, giving on-site technicians a quick health check without a laptop or software tool. A network card slot supports the WEBCARDLXE accessory for SNMP-based remote monitoring, letting facilities teams track this UPS alongside others across a building or campus. Given its higher capacity, the SU2200RTXLCD2U is a good fit for commercial UPS battery backup installation in larger AV equipment racks, multi-device data closets, and broadcast or production spaces where load headroom and clean power quality both matter.

Key Features

• Online Double-Conversion Topology — It continuously regenerates output power for zero transfer time, protecting sensitive AV and network equipment from switchover gaps.
• 2200VA/1800W Capacity — Higher-density rack loads, including multiple switches and matrix switchers, run comfortably within capacity.
• 2U Rack/Tower Convertible Design — It includes rack rails and tower stands for flexible installation in racks or data closets.
• Seven Outlets Including L5-20R — It supports both standard and higher-current rack-mounted devices from one unit.
• LCD Status Display — It provides at-a-glance load, voltage, and battery information for on-site diagnostics.
• Network Card Slot — It accepts a WEBCARDLXE card for SNMP monitoring and remote alerting.
• True Sine Wave Output — It matches clean utility power quality for stable operation of connected electronics.

Typical Applications

• Boardroom and conference room AV racks with higher equipment density
• Broadcast studio equipment racks requiring continuous, clean power
• Government space and multi-purpose room data closets supporting several connected systems
• Auditorium AV equipment rooms with multiple rack-mounted devices

Technical Specifications

Frequently Asked Questions

Can this UPS support a rack with multiple AV switchers and network equipment?

Yes. At 2200VA/1800W it offers more headroom than smaller rack UPS models, making it appropriate for racks with several connected devices.

What is the difference between this unit's outlets and a standard rack UPS?

It includes six standard 5-20R outlets plus one higher-current L5-20R outlet, allowing it to power both typical AV equipment and higher-draw devices from one unit.

Does it require special installation in an AV rack?

No special installation is required. It ships with standard rack rails for 2U mounting or tower stands for standalone use.

Is remote monitoring available for multi-rack deployments?

Yes. A network card slot supports the WEBCARDLXE card, which provides SNMP-based remote monitoring across multiple UPS units on a network.

What warranty and support options are available?

The unit carries a 2-year limited warranty, with 5-year extended service plans available separately.

Can Creation Networks help determine if this UPS is correctly sized for our rack load?

Yes, our team can review your connected equipment list and recommend appropriate UPS capacity and runtime for your specific rack configuration.
