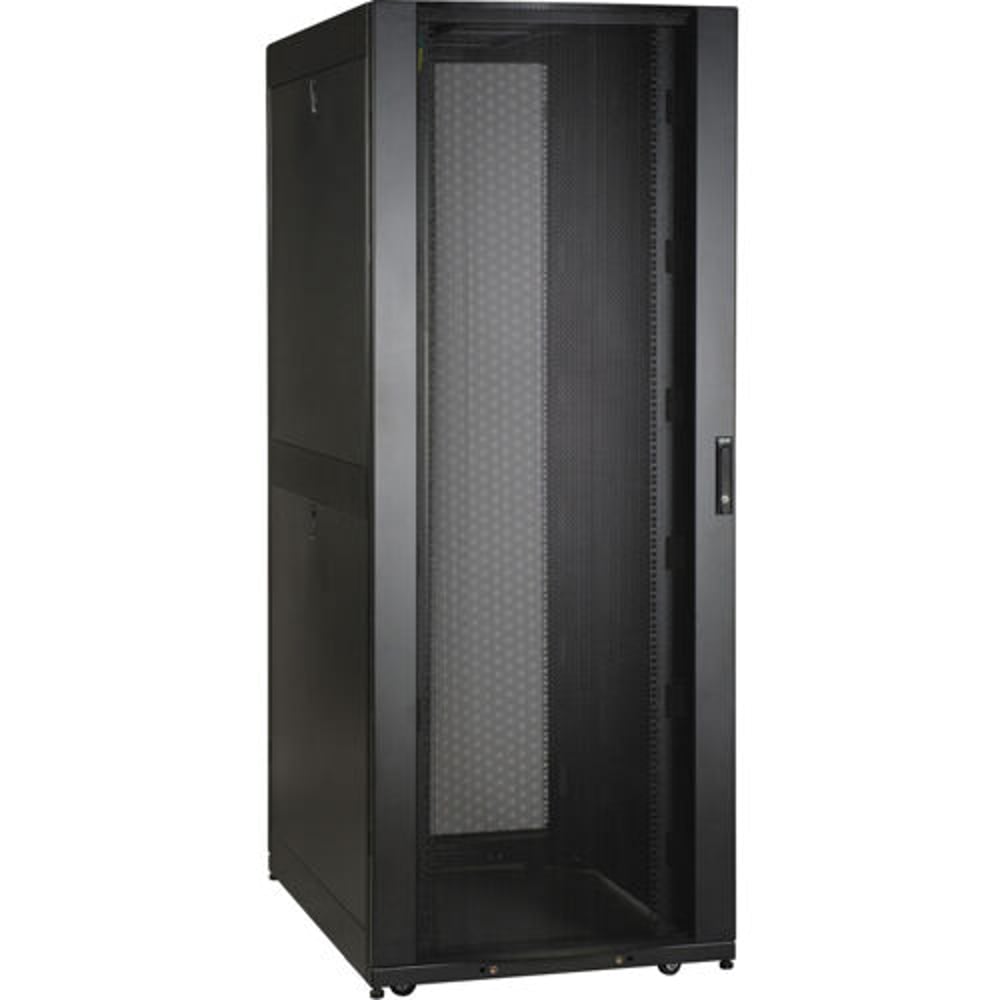

Eaton SR45UBWD – 45U Wide SmartRack Enclosure Cabinet
Eaton SR45UBWD – 45U Wide SmartRack Enclosure Cabinet is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Eaton SR45UBWD – 45U Wide SmartRack Enclosure Cabinet
Product Overview
The Eaton SR45UBWD is a 45U wide rack enclosure cabinet built for commercial data closets and AV equipment rooms that need extra internal width for cable management alongside standard 19-inch rack rails. At 29.53 inches wide, it is a practical wide server rack enclosure for AV equipment where cabling, patch panels, and power distribution units compete for space inside the cabinet. This 45U rack cabinet with doors and side panels ships fully assembled with pre-installed casters, locking removable side panels, and reversible front and rear doors, making it suitable for commercial rack enclosure cabinet deployments in network operations centers and AV integration rooms.
Product Description
The SR45UBWD provides 45U of standard 19-inch rack mounting capacity in a wide-body cabinet measuring 29.53 inches wide, roughly 6 inches wider than a standard 23.6-inch SmartRack, giving integrators extra room inside the cabinet for cable management, PDUs, and cable trays without crowding the mounted equipment. This makes it a strong choice as a wide server rack enclosure for AV equipment where AV switchers, amplifiers, and network gear share space with substantial cabling infrastructure. The cabinet supports a stationary load capacity of 3500 pounds and a rolling load capacity of 2250 pounds on its pre-installed casters, allowing the fully loaded enclosure to be repositioned within a data closet or equipment room when needed. Locking, removable side panels and reversible front and rear doors give technicians flexible access during installation and ongoing maintenance, while built-in cable management channels help organize AV and network cabling runs. With a maximum device depth of 37 inches, the enclosure accommodates deep servers, UPS units, and PDUs commonly found in commercial AV equipment rooms. This 45U rack cabinet with doors and side panels is UL 60950-1 listed, RoHS compliant, and CE marked, meeting standard requirements for commercial rack enclosure cabinet installations.
Key Features
- 45U Capacity in a Wide-Body Frame — Provides 29.53 inches of width, roughly 6 inches wider than standard SmartRack enclosures, for extra internal cable management room.
- 3500 lb Stationary Load Capacity — Supports heavy AV, server, and UPS equipment loads.
- 2250 lb Rolling Load Capacity — Pre-installed casters allow repositioning of the fully loaded cabinet.
- Locking, Removable Side Panels — Provide secure access for cabling and maintenance from either side.
- Reversible Front and Rear Doors — Adapt to room layout and airflow requirements during installation.
- Built-In Cable Management — Helps organize AV and network cabling runs within the wider cabinet body.
- 37-Inch Maximum Device Depth — Accommodates deep servers, UPS systems, and PDUs.
- Ships Fully Assembled — Reduces on-site installation time compared to knock-down cabinets.
Typical Applications
- Government space data and communications rooms
- Broadcast studio equipment racks
- Commercial meeting space AV infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Rack Capacity | 45U |
| Height | 83.75 in |
| Width | 29.53 in |
| Depth | 43 in (product); 27.75 in factory preset rack depth |
| Max/Min Device Depth | 37 in max / 4 in min |
| Product Weight | 340 lb |
| Stationary Load Capacity | 3500 lb |
| Rolling Load Capacity | 2250 lb |
| Vertical Mounting Rails | 4 |
| Color | Black |
| Certifications | UL 60950-1, RoHS, CE |
Frequently Asked Questions
How much wider is this cabinet than a standard SmartRack enclosure?
The SR45UBWD is 29.53 inches wide, roughly 6 inches wider than the standard 23.6-inch SmartRack, providing extra room for cable management and PDUs.
Does this cabinet ship assembled or does it require assembly?
It ships fully assembled with pre-installed casters and includes mounting hardware such as M6 screws, cage nuts, and washers.
Can the fully loaded cabinet be moved once equipment is installed?
Yes, the pre-installed casters support a rolling load capacity of 2250 lb, while the stationary load capacity is 3500 lb.
Is this cabinet compatible with standard UPS units and PDUs sold by Creation Networks?
Yes, the enclosure supports standard 19-inch rack-mount equipment, including rack UPS systems such as the Eaton SMART3000RMXL2U.
What is the maximum device depth this cabinet supports?
The enclosure supports a maximum device depth of 37 inches, accommodating deep servers, UPS systems, and PDUs.
Does the cabinet include doors and side panels?
Yes, it includes reversible front and rear doors and locking, removable side panels for secure access from either side.
What certifications does this cabinet carry?
It is UL 60950-1 listed, RoHS compliant, and CE marked.
