Eaton SMX2200XLRT2U – 2200VA International Rack UPS

Product Overview

The Eaton SMX2200XLRT2U is a 2200VA international line-interactive UPS with AVR built for critical server, network, and telecommunications equipment operating on 230V power. As a line-interactive UPS for server and network equipment, it delivers network-grade power protection with an enhanced LCD interface for real-time status reporting. This 2U rack-mount UPS with AVR is well suited for facilities running international UPS for telecommunications equipment installations that need dual-stage voltage correction in poor-power environments.

Product Description

Built with automatic voltage regulation (AVR) that actively corrects brownouts and overvoltages back to usable levels, the SMX2200XLRT2U maintains a full battery charge in reserve rather than draining it on minor utility fluctuations. Its two separate levels of voltage boost handle both slight undervoltages and severe brownout conditions, making it a strong fit for regions or facilities with inconsistent utility power. This commercial UPS battery backup installation option delivers 98% line-mode efficiency, reducing heat output and operating costs in server rooms and equipment closets where multiple UPS units run continuously. The interactive LCD interface reports UPS operating mode, load, and site-power data directly on the front panel, and enables setup and configuration changes without external software, useful for integrators servicing an LCD interface UPS for network closet installations. Switchover from line to battery power occurs within milliseconds, keeping connected server, network, and conferencing equipment running without interruption or reboot. With eight C13 outlets split across two switchable load banks and a 2U rack/tower chassis, this unit is a practical choice for a conference room server rack, telecommunications equipment room, or network closet needing dependable, network-grade power protection.

Key Features

• Automatic Voltage Regulation (AVR) — Corrects brownouts and overvoltages without switching to battery power.
• Dual-Stage Voltage Boost — Handles both slight undervoltages and severe brownout conditions in poor-power environments.

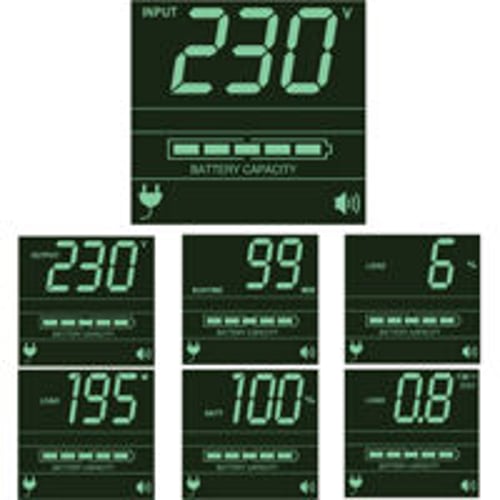

• Enhanced LCD Interface — Displays operating mode, load, and site-power data with on-panel setup and configuration.
• Millisecond Switchover to Battery — Maintains uninterrupted operation of connected equipment during a power failure.
• 98% Line-Mode Efficiency — Reduces heat emissions and operating costs during continuous operation.

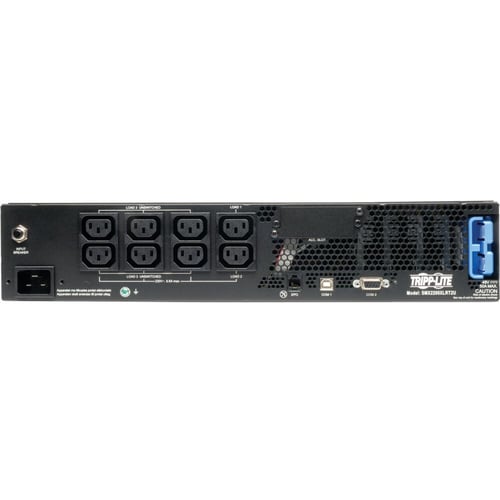

• Eight C13 Outlets on Two Switchable Load Banks — Allows staged shutdown or restart of connected equipment groups.
• Hot-Swappable VRLA Battery — Uses an RBC94-2U replacement battery for field service without powering down loads.
• 2U Rack/Tower Form Factor — Fits standard 19-inch racks or freestanding tower deployment.

Typical Applications

• Conference room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Will this UPS fit a standard conference room AV rack?

Yes, the SMX2200XLRT2U is built in a 2U rack/tower chassis compatible with standard 19-inch AV and IT racks.

How does the AVR feature reduce battery wear?

The AVR circuitry corrects brownouts and overvoltages in real time without transferring to battery power, preserving full battery charge for an actual outage.

Can the battery be replaced without an electrician?

Yes, the VRLA battery is designed to be hot-swappable and field-replaceable using the RBC94-2U replacement cartridge.

Does the LCD panel allow configuration changes on-site?

Yes, the interactive LCD interface allows setup and configuration adjustments directly from the front panel without external software.

Is this UPS suitable for telecommunications equipment rooms?

Yes, its dual-stage voltage boost and network-grade power protection are designed for telecommunications, server, and networking equipment in variable-power environments.

What is the warranty on the SMX2200XLRT2U?

Contact Creation Networks for complete manufacturer warranty documentation for this model.
