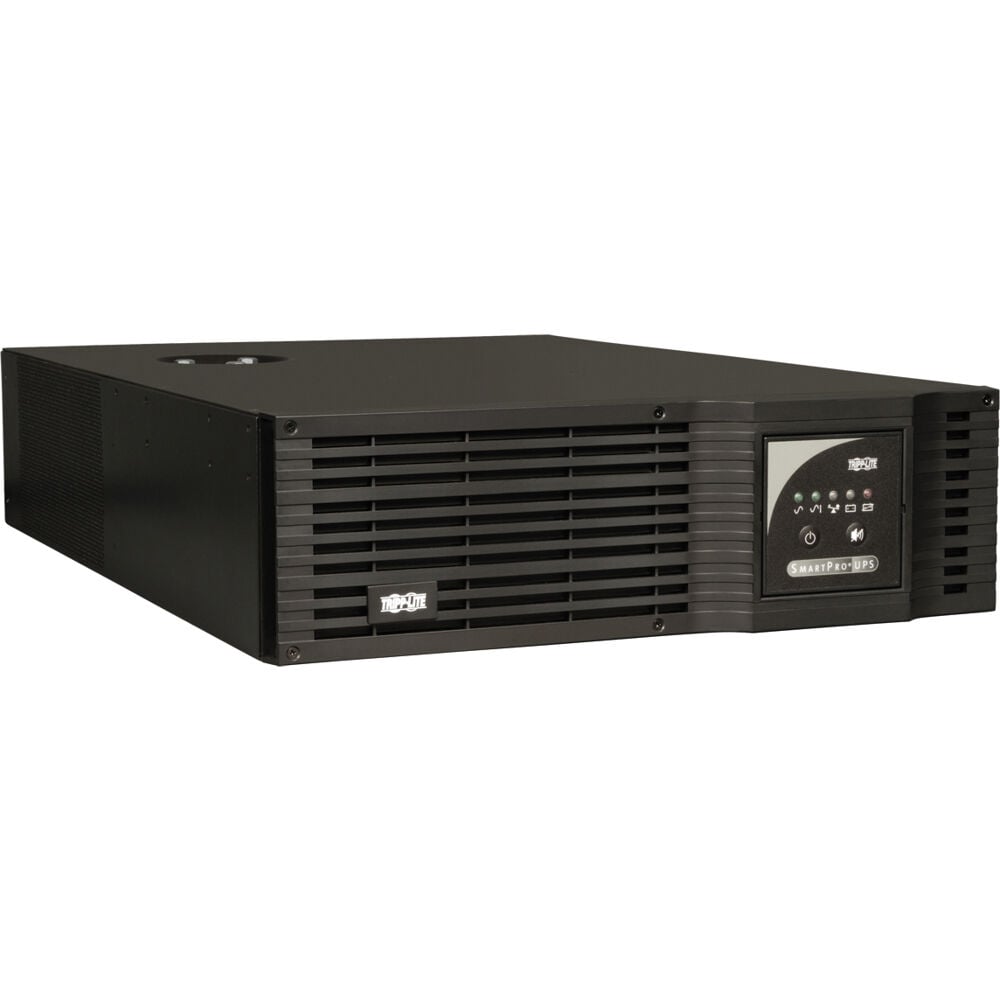

Eaton SMART5000TEL3U – 5kVA 3U Rackmount UPS AVR 208V

Product Overview

The Eaton SMART5000TEL3U is a 5kVA rack-mount UPS for AV rack applications that require high-capacity, line-interactive power protection in a compact footprint. Occupying only 3U in a standard 19-inch rack, this 208V line-interactive UPS for server rack deployments delivers 5000VA/3750W of regulated power to servers, networking gear, and telecommunications equipment. It is built for commercial UPS battery backup installation in data closets, broadcast racks, and large-scale AV equipment racks where high current 208V loads and mixed 120V accessories share the same rack. Integrators specifying a 3U rackmount UPS for AV equipment rack projects get automatic voltage regulation (AVR), hot-swappable batteries, and full remote monitoring in one enclosure.

Product Description

The SMART5000TEL3U is engineered for commercial AV integrators and IT facilities teams who need to protect high-density racks without sacrificing rack space. At 5.25 inches tall (3U), it is one of the smallest 5kVA-class UPS systems on the market, and it ships with hardware to mount in 4-post rack enclosures. The unit accepts raw 208V AC input and regulates output automatically, correcting brownouts and overvoltages without switching to battery, which extends battery life in AV racks that see frequent utility fluctuations. Five output receptacles — two L6-20R, one L6-30R, and two 5-15R — allow a single UPS to power high-current 208V switchgear alongside low-voltage 120V monitors or control processors, a common requirement in commercial AV integration work. An internal slot accepts an optional network management card, and built-in USB and dual DB9 ports support unattended shutdown scripting for unmanned equipment rooms. This is a high-capacity UPS for broadcast rack and data closet installs where downtime is not an option, and where rack-mount power protection for AV integrators must coexist with tight U-space budgets. The NEMA L6-30P input connector supports either a user-supplied 30A circuit or hardwired connection, giving electricians flexibility during rough-in.

Key Features

• 3U Form Factor — Delivers 5000VA/3750W of protected power in only 3 rack units, preserving valuable rack space in commercial AV and data closet installations.
• Automatic Voltage Regulation — Corrects under- and over-voltage conditions from 174V to 282V without draining the battery, extending runtime availability for actual outages.
• Mixed Voltage Output — Two 120V outlets support monitors and low-voltage accessories alongside five 208V-rated receptacles for switches, servers, and AV processors.
• Hot-Swappable Batteries — Internal VRLA batteries can be replaced without powering down connected equipment, minimizing planned downtime.
• Network Management Card Slot — Accepts an optional SNMP/web card for remote monitoring and control across a facility network.
• USB and Dual DB9 Ports — Enable unattended shutdown software and integration with building management or NOC monitoring systems.
• ENERGY STAR Certified Efficiency — Line-interactive topology operates at approximately 97% efficiency, reducing operating cost in always-on rack environments.
• 1020 Joules of Surge Suppression — Protects connected AV and IT equipment from transient voltage spikes on the incoming feed.

Typical Applications

• Broadcast studio racks requiring high-current, mixed-voltage power protection
• Government space equipment rooms with mission-critical AV and networking loads
• Commercial meeting space AV racks consolidating servers, switches, and control processors
• Auditorium technical racks powering amplification, control, and networking equipment

Technical Specifications

Frequently Asked Questions

Can the SMART5000TEL3U be installed in a standard 4-post AV rack?

Yes. The unit ships with mounting hardware for 4-post rack enclosures and occupies only 3U of vertical space, making it suitable for standard commercial AV racks.

Does this UPS support both 208V and 120V equipment in the same rack?

Yes. It provides five 208V-rated receptacles alongside two 120V outlets rated up to 600VA, so a single unit can power high-current switches and low-voltage monitors or controllers.

What network monitoring options are available?

The UPS includes an internal slot for an optional network management card in addition to built-in USB and dual DB9 ports for unattended shutdown and remote status monitoring.

Can the batteries be replaced without shutting down connected equipment?

Yes. The internal VRLA batteries are hot-swappable, allowing battery replacement while the UPS continues to supply power to the load.

What is the input connection requirement for this UPS?

The unit uses a NEMA L6-30P plug and requires a dedicated 208V, 30A circuit. Licensed electricians can also hardwire the input during installation.

What warranty does Creation Networks support on this unit?

The SMART5000TEL3U carries a 2-year standard manufacturer warranty, extendable to 3 years with product registration. Contact Creation Networks for support on warranty claims and replacement parts.

Is this UPS suitable for broadcast or government facility racks?

Yes. Its combination of high capacity, mixed-voltage outlets, and remote monitoring makes it well suited for broadcast studio racks and government or commercial facility equipment rooms with mission-critical loads.
