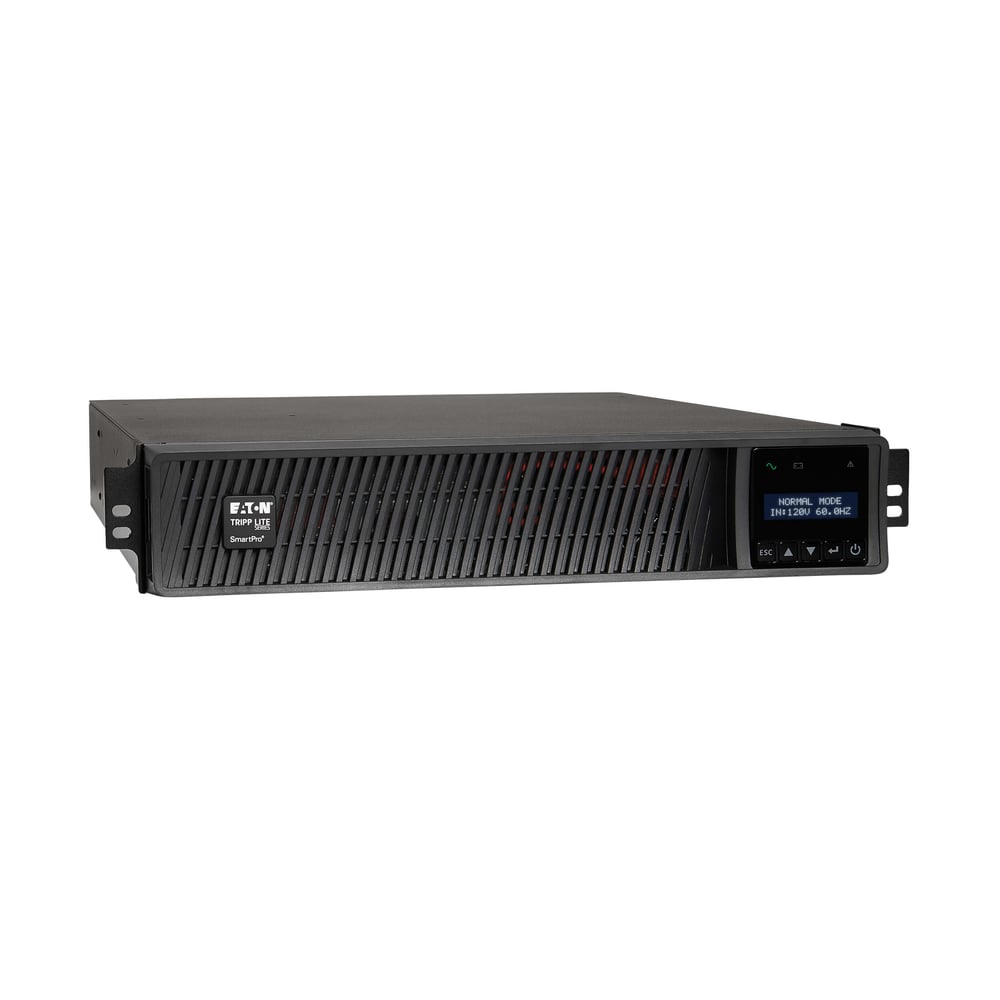

Eaton SMART3000RXLTAA – 3000VA Rack UPS, TAA-Compliant

Product Overview

The Eaton SMART3000RXLTAA is a TAA-compliant 3000VA/3000W rack-mount UPS for data center, server room, and high-end AV equipment that requires uninterrupted power. Built with hot-swappable VRLA battery modules, this hot-swappable battery UPS for server room use supports field replacement without powering down connected equipment. As a TAA-compliant UPS for government AV install projects, it meets Trade Agreements Act sourcing requirements common in federal, state, and municipal procurement. Seven total outlets and millisecond switchover make it suitable for large network devices, high-end workstations, storage, and security equipment.

Product Description

This line-interactive UPS 7 outlets configuration includes six NEMA 5-20R outlets, four of which are grouped into two programmable load banks, plus one L5-30R outlet for higher-draw equipment, giving integrators granular control over which devices stay powered longest during an extended outage. The unit runs on valve-regulated lead-acid (VRLA) battery modules that are hot-swappable, so a failed or aging module can be replaced without disconnecting the load being protected, which matters for high-capacity UPS for AV rack and IT equipment supporting always-on broadcast, security, or server workloads. At full 3000W load, the unit provides about 3 minutes of runtime, extending to roughly 9 minutes at half load; for facilities that need longer bridge time, up to four optional BP72VRXLTAA extended battery modules can be connected for additional runtime. Automatic restart after power is restored, regardless of battery charge level, means the SMART3000RXLTAA can recover from an outage without a technician visiting the site, which is valuable for AV racks in remote or after-hours facilities. Input voltage is adjustable from 80V to 151V, and the unit maintains 120V nominal sine wave output in battery mode, protecting equipment sensitive to non-sinusoidal power. At 3.4 inches high and rated for a 27-inch rack depth, the 2U form factor fits most standard commercial and data center racks, though depth should be confirmed against the specific cabinet before ordering.

Key Features

• TAA-Compliant Sourcing — Meets Trade Agreements Act requirements for government and federally-funded procurement.
• Hot-Swappable VRLA Battery Modules — Allows field battery replacement without powering down connected equipment.
• 3000VA/3000W Capacity — Supports large network devices, high-end workstations, and storage or security equipment.
• Seven Total Outlets — Six NEMA 5-20R outlets (four in programmable load banks) plus one L5-30R outlet.
• Automatic Restart — Restarts once power returns regardless of battery charge level, avoiding a required site visit.
• Expandable Runtime — Supports up to four optional BP72VRXLTAA extended battery modules for longer backup time.
• Millisecond Switchover — Transitions from line to battery power without interrupting or rebooting connected equipment.

Typical Applications

• Government space server rooms and AV racks requiring TAA-compliant equipment
• Broadcast studio and auditorium equipment racks supporting high-draw AV and IT gear
• Commercial meeting space data closets needing extended-runtime battery backup

Technical Specifications

Frequently Asked Questions

Is this UPS approved for government procurement?

Yes. The SMART3000RXLTAA is TAA-compliant, meeting Trade Agreements Act sourcing requirements common in federal, state, and municipal purchasing.

Can I replace the battery without shutting down connected equipment?

Yes. The VRLA battery modules are hot-swappable, allowing field replacement without disconnecting the load being protected.

How can I extend the runtime beyond the standard battery?

Up to four optional BP72VRXLTAA extended battery modules can be connected to the SMART3000RXLTAA for additional backup time. See the BP72VRXLTAA extended battery module for compatible options.

What rack depth is required for installation?

The unit requires approximately 27 inches of rack depth; confirm available depth in your specific cabinet before ordering.

Does this UPS restart automatically after a power outage?

Yes. It restarts automatically once utility power is restored, regardless of the battery's charge level, avoiding the need for a technician site visit.

What warranty and equipment protection does this UPS include?

It carries a 2-year standard warranty, extendable to 3 years with registration, plus $250,000 Ultimate Lifetime Insurance coverage for connected equipment in the U.S., Canada, and Puerto Rico.
