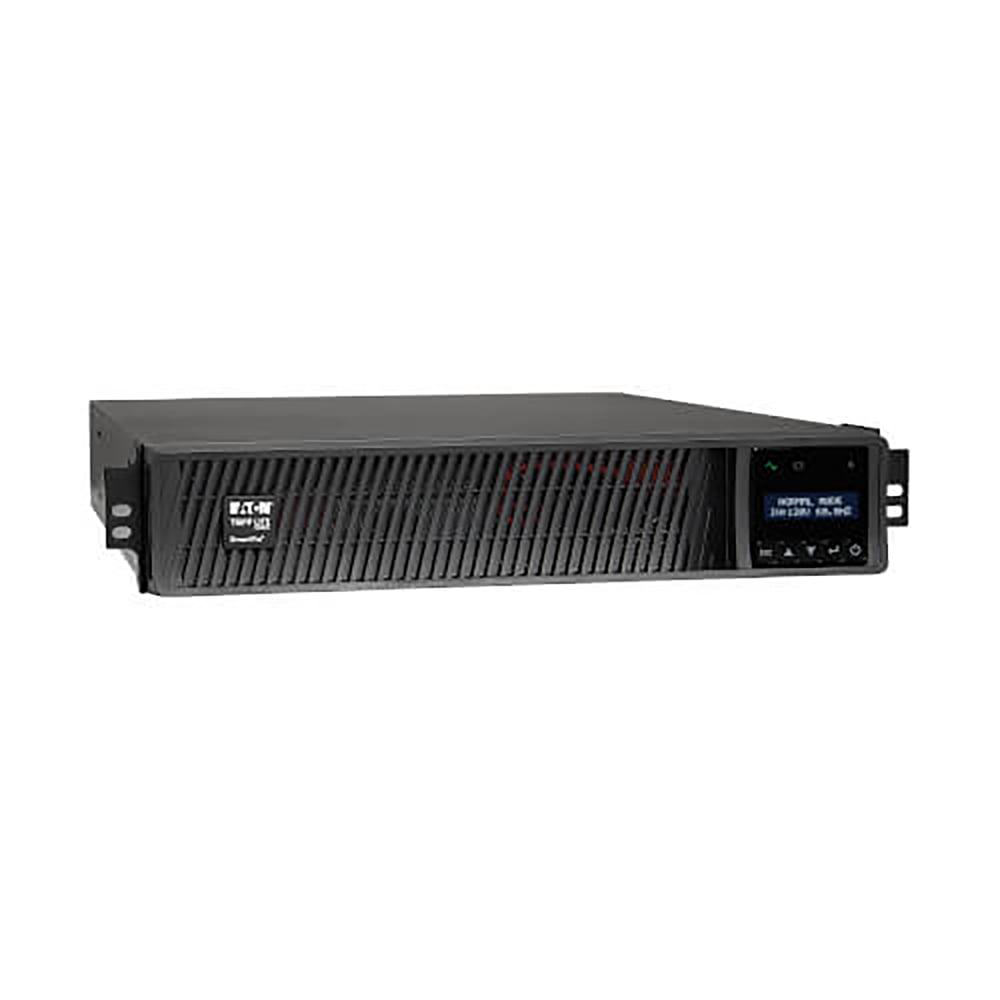

Eaton SMART2200RMXLN – 1950VA 2U UPS with Network Card

Product Overview

The Eaton SMART2200RMXLN is a 1950VA/1950W line-interactive sine wave UPS built for servers, network switches, and other high-end distributed AV and IT equipment in a commercial rack. As a 2U rack-mount UPS with network card capability, it ships with a pre-installed network interface for remote monitoring and outlet control, making it well suited for commercial UPS battery backup installation projects where a technician needs visibility into rack power without a site visit. Seven outlets with 380 joules of surge protection and support for optional extended battery packs round out the profile for AV control racks and data closets running critical equipment around the clock.

Product Description

This 1950VA sine wave UPS for AV rack and IT applications provides pure sine wave output, which is important for equipment sensitive to power quality, such as AV DSPs, matrix switchers, and networking gear that can behave erratically on stepped-approximation waveforms from lower-cost UPS units. Seven outlets in a 5-20R/L5-20R configuration are split into switchable banks, so a rack owner can remotely power-cycle a specific device through the pre-installed network card without physically accessing the rack. AVR corrects input voltage sags and surges without switching to battery for minor fluctuations, which helps preserve battery life over the unit's service life. The 2U rack/tower form factor also functions as a wall-mount unit, giving integrators flexibility when the target rack space is tight. Runtime at full 1950W load is short by design, as is typical for line-interactive units at this capacity, but the unit supports optional BP72VRM2U external battery packs for sites needing longer bridge time during an outage. With $250,000 Ultimate Lifetime Insurance coverage and a 2-year standard warranty extendable to 3 years with registration, this is a rack-mount UPS with remote outlet control aimed at commercial deployments protecting servers, network switches, and AV control equipment that can't go down unexpectedly.

Key Features

• 1950VA / 1950W Pure Sine Wave Output — Delivers clean power suited to sensitive AV DSPs, matrix switchers, and networking equipment.
• Pre-Installed Network Card — Enables remote monitoring and outlet control without a site visit.
• Seven Switchable Outlets — Two load banks can be remotely power-cycled for specific rack equipment.
• Automatic Voltage Regulation — Corrects sags and surges without draining the battery on minor fluctuations.
• 2U Rack/Tower/Wall-Mount Flexibility — Fits standard 19-inch racks or mounts as a wall unit where rack space is limited.
• Extended Runtime Support — Compatible with optional BP72VRM2U external battery packs for longer bridge time.
• $250,000 Ultimate Lifetime Insurance — Backs connected equipment against damage from a UPS malfunction.

Typical Applications

• Boardroom AV control racks running network switches and DSPs
• Conference room AV equipment closets requiring clean sine wave power
• Government space server and AV rack installations
• Broadcast studio racks supporting network-dependent AV equipment
• Multi-purpose room AV racks with centralized IT and AV gear

Technical Specifications

Frequently Asked Questions

Does this UPS come with network monitoring built in?

Yes, the SMART2200RMXLN ships with a pre-installed network card, so it can be added to a rack and monitored or controlled remotely without purchasing a separate accessory.

Can I remotely reboot a specific device connected to this UPS?

Yes, two of the seven outlets are on switchable load banks that can be power-cycled remotely through the network card, useful for rebooting a locked-up switch or AV device without a site visit.

Does this UPS fit a standard 19-inch AV or IT rack?

Yes, it is a 2U rack-mount unit with mounting hardware included, and it can also function as a wall-mount or tower unit if rack space is unavailable.

Can runtime be extended beyond the internal battery?

Yes, the unit supports optional BP72VRM2U external battery packs for sites that need longer backup time than the standard internal battery provides.

Why does this UPS use pure sine wave output instead of a simulated waveform?

Pure sine wave output matches utility power more closely, which is important for AV DSPs, matrix switchers, and networking equipment that can behave unpredictably on a stepped-approximation waveform.

What warranty and insurance coverage does this UPS include?

It carries a 2-year standard warranty, extendable to 3 years with registration, plus $250,000 Ultimate Lifetime Insurance covering connected equipment in the U.S., Canada, and Puerto Rico.

Is this UPS a good fit for a shared boardroom or conference room AV closet?

Yes, its rack, wall-mount, or tower flexibility and remote monitoring capability make it well suited to boardroom, conference room, and government space AV equipment closets running critical network and AV gear.
