Eaton SMART1500RMXLN – 1500VA Rackmount UPS with SNMP

Product Overview

The Eaton SMART1500RMXLN is a 2U rack-mount UPS for AV rack and data closet installations that need dependable battery backup with built-in automatic voltage regulation. Rated at 1500VA/1350W, it protects conference room AV racks, network switches, and telecommunications equipment against blackouts, brownouts, and line noise. As a line-interactive UPS for AV rack deployments, it integrates directly into standard 19-inch rack enclosures alongside amplifiers, DSPs, and switches. This model supports SNMP UPS for server rack monitoring through its pre-installed WEBCARDLX network interface, making it a practical fit for any commercial UPS battery backup installation that requires remote visibility.

Product Description

The SMART1500RMXLN mounts in a 2U rack space and provides eight NEMA 5-15R outlets, four of which are individually switchable for remote load shedding or equipment reboot. This is a practical feature for AV integrators managing racks with multiple zones of equipment, since non-critical loads can be shed to preserve runtime for mission-critical gear during an extended outage. The internal battery delivers roughly 14 minutes of runtime at half load and 4.9 minutes at full load, and the design supports external battery packs such as the BP36V15-2U for facilities needing longer ride-through in a data closet or equipment room. Communication options include USB and DB9 serial ports, with a pre-installed WEBCARDLX card that provides a Java-free, HTML5-based web interface for remote UPS and site-power monitoring — a useful capability for integrators managing UPS fleets across multiple conference rooms or buildings. Automatic voltage regulation actively corrects minor sags and surges without switching to battery, extending battery life and reducing the frequency of transfer events in buildings with less-than-clean utility power. The included 10-foot power cord provides installation flexibility in racks positioned away from wall receptacles.

Key Features

• 2U Rack/Tower Form Factor — Fits standard 19-inch AV or network racks without consuming excessive rack space.
• Eight NEMA 5-15R Outlets, Four Switchable — Allows selective load shedding of non-critical equipment to extend runtime for essential gear.
• Automatic Voltage Regulation (AVR) — Corrects brownouts and overvoltages without draining the battery, reducing wear on internal cells.
• Pre-Installed WEBCARDLX Network Interface — Provides Java-free, HTML5-based remote monitoring of UPS status and site power.
• External Battery Pack Support — Compatible with add-on battery packs for extended runtime in data closets and equipment rooms.
• USB and DB9 Serial Connectivity — Supports integration with UPS management software and building monitoring systems.

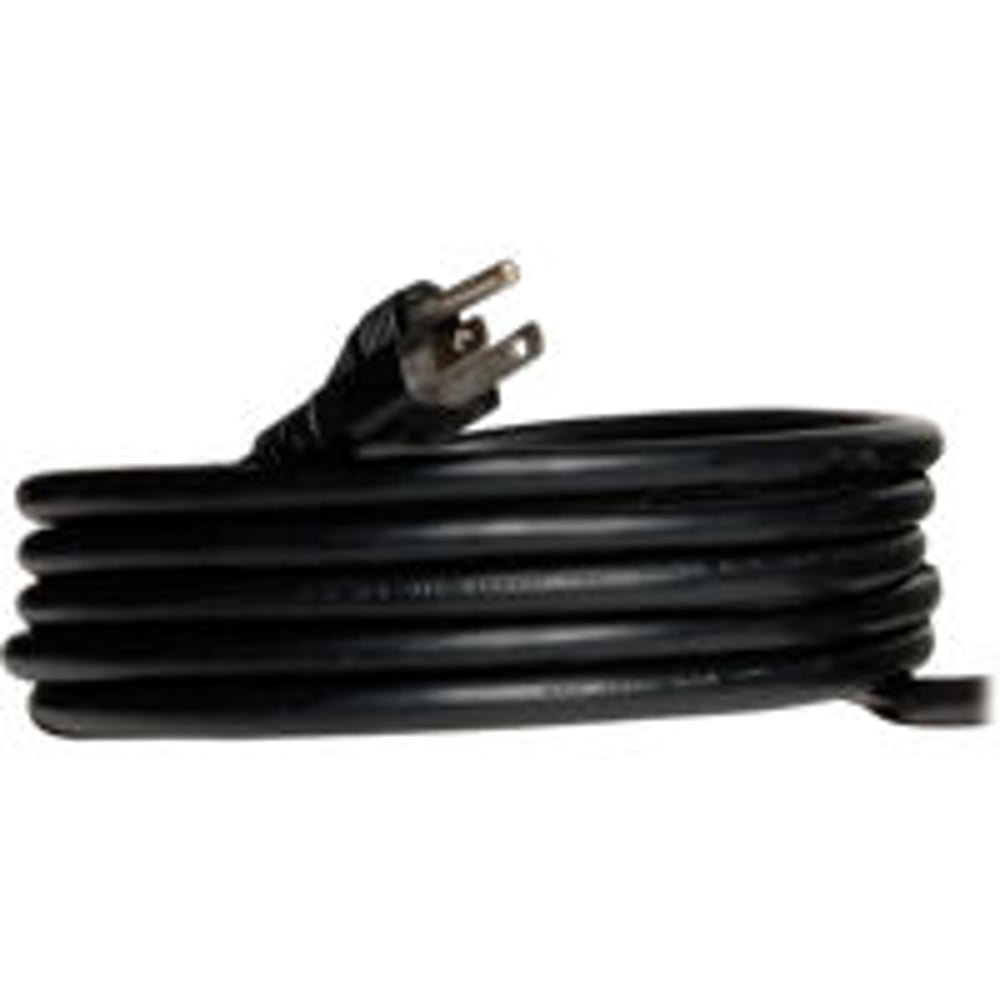

• 10-Foot Power Cord — Provides flexibility when the rack is not positioned directly next to a wall outlet.

Typical Applications

• Boardroom AV racks requiring backup power for control processors and switchers
• Conference room equipment closets housing DSPs and network switches
• Huddle room AV racks with compact equipment loads
• Training room AV systems needing uninterrupted operation during sessions
• Broadcast studio equipment racks requiring clean, regulated power

Technical Specifications

Frequently Asked Questions

Will the SMART1500RMXLN fit in a standard AV equipment rack?

Yes. It is designed as a 2U rack/tower unit that mounts in standard 19-inch AV or network racks alongside DSPs, switchers, and control processors.

Can I extend the runtime for longer outages?

Yes. The unit supports external battery packs, such as the BP36V15-2U, for facilities that need extended ride-through beyond the standard internal battery runtime.

Does this UPS support remote monitoring for multi-room AV deployments?

Yes. It includes a pre-installed WEBCARDLX network interface with a Java-free, HTML5-based dashboard, letting integrators monitor UPS and site power status remotely across multiple installations.

Can I shed non-critical loads during an outage?

Yes. Four of the eight outlets are individually switchable, allowing remote load shedding or equipment reboot without affecting the always-on outlets.

What is covered under the manufacturer warranty?

Contact Creation Networks for the current warranty term and connected equipment insurance details applicable to this SKU.

Is this UPS suitable for a data closet as well as a conference room rack?

Yes. Its rack/tower form factor and AVR functionality make it suitable for both dedicated data closets and in-room AV equipment racks.

Does Creation Networks provide installation support for rack UPS integration?

Yes, our team can help confirm rack space requirements, outlet load planning, and network card configuration before your installation.
