Eaton SMART1500LCDT – 1500VA Tower UPS with LCD Display

Product Overview

The Eaton SMART1500LCDT is a 1500VA tower UPS with LCD display designed to protect personal computers, network workstations, and small AV equipment against outages, brownouts, and surges. As a line-interactive UPS for workstations, it uses automatic voltage regulation to correct minor sags and overvoltages without switching to battery, extending battery service life in offices, huddle spaces, and small conference rooms. This AVR battery backup for AV equipment includes both battery-backed and surge-only outlets, along with coax and RJ45 surge protection for connected network and signal lines, making it a practical commercial UPS battery backup installation for mixed IT and AV loads.

Product Description

The SMART1500LCDT is built as a line-interactive tower UPS, offering ten total built-in outlets: five with full battery backup and surge suppression, and five with surge suppression only for accessories that do not require runtime support. Automatic Voltage Regulation circuits continuously correct brownouts and overvoltages from 92V to 150V back to usable output levels, all while keeping the internal battery fully charged for when it is actually needed. A large front-panel LCD display provides icon-based status indicators for load level, battery charge, and operating mode, giving facilities or AV staff an at-a-glance status check without connecting to management software. A built-in USB port supports optional unattended system shutdown, allowing connected workstations to save open files and power down gracefully during an extended outage. Coax and RJ45 surge-protected pass-through jacks add protection for cable and network lines running to connected equipment, which is valuable in small conference rooms or huddle spaces where a single UPS protects both a workstation and a networked AV display. The unit ships with a 3-year limited warranty and $250,000 Ultimate Lifetime Insurance for properly connected equipment, and uses two RBC51 replacement battery cartridges when the internal battery reaches end of life.

Key Features

• Ten Total Outlets — Five battery-backed and surge-protected outlets plus five surge-only outlets support a full workstation and accessory setup.
• Automatic Voltage Regulation — Corrects brownouts and overvoltages from 92V to 150V without drawing on battery power.
• Large LCD Status Display — Provides icon-based indicators for load, battery charge, and operating mode at a glance.
• Coax and RJ45 Surge Protection — Protects connected network and cable lines in addition to AC power.
• USB Port for Unattended Shutdown — Enables graceful, data-loss-free shutdown of connected systems during extended outages.
• Audible Alarm — Alerts staff to power events, low battery conditions, or overload states.
• 3-Year Limited Warranty — Backed by $250,000 Ultimate Lifetime Insurance for connected equipment.

Typical Applications

• Huddle room workstations and small AV displays needing battery backup
• Boardroom presentation systems and connected workstations
• Training room computers and network workstations
• Multi-purpose room AV and IT equipment sharing a single UPS

Technical Specifications

Frequently Asked Questions

Can the SMART1500LCDT protect both a workstation and a networked AV display?

Yes. It includes both battery-backed and surge-only outlets along with coax and RJ45 surge protection, making it suitable for mixed workstation and AV network loads.

How do I replace the battery when it reaches end of life?

The unit uses two RBC51 replacement battery cartridges, which are sold separately and can be replaced without additional tools.

Does this UPS integrate with a rack, or is it tower-only?

The SMART1500LCDT is a tower-format unit intended for desk-side, closet, or small equipment cart placement rather than rack mounting.

What does the LCD display show during normal operation?

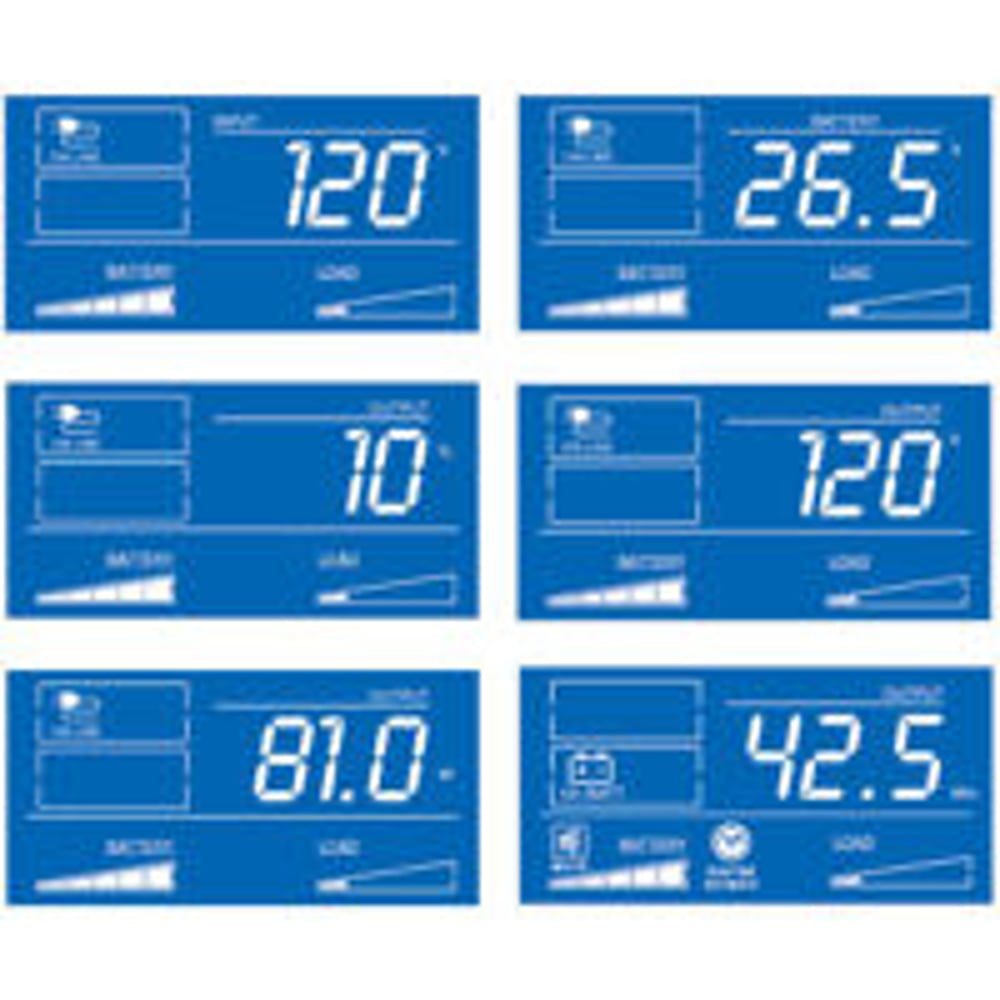

The LCD provides icon-based indicators for load level, battery charge status, and current operating mode (line power vs. battery).

What warranty coverage applies to this unit?

It carries a 3-year limited warranty along with $250,000 Ultimate Lifetime Insurance for properly connected equipment.

Can this UPS be used in a small conference or training room?

Yes, its combination of outlet count, AVR, and surge protection for network lines makes it well suited to huddle rooms, training rooms, and small multi-purpose spaces.

Does Creation Networks stock replacement batteries for this model?

Contact Creation Networks to confirm current stock and pricing on RBC51 replacement battery cartridges for this unit.
