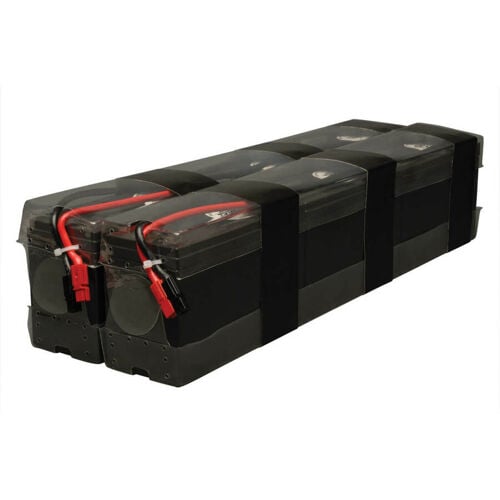

Eaton RBC96-2U – 72VDC Replacement Battery Cartridge

Product Overview

The Eaton RBC96-2U replacement battery cartridge restores full backup runtime to select Tripp Lite by Eaton SmartOnline 2U UPS systems once their internal batteries weaken or expire. This 72VDC UPS battery replacement is built for commercial UPS battery backup installation in data closets, server rooms, and AV equipment racks where double-conversion online protection cannot be interrupted. Each RBC96-2U ships pre-assembled and screened to original specification, making it a straightforward rack-mount UPS battery cartridge replacement for facilities and AV integration teams. It is the correct part number to keep a SmartOnline UPS battery kit performing at full capacity without swapping the entire UPS chassis.

Product Description

The RBC96-2U is a 72VDC battery cartridge engineered specifically for select 2U SmartOnline UPS systems, where the internal battery set is packaged as a single pre-wired assembly rather than individual cells. Because SmartOnline systems run in double-conversion online mode, a degraded battery bank compromises the always-on protection these systems are installed to provide, which is why timely replacement matters in mission-critical data closets and AV control rooms. This cartridge is built with sealed, maintenance-free lead-acid batteries screened to meet or exceed the original UPS manufacturer's specifications, so integrators performing a commercial UPS battery backup installation can expect the same runtime performance as the factory-original battery set. The leak-proof, spill-proof construction is appropriate for enclosed AV racks and data closets where ventilation and battery off-gassing are a concern. Installation is tool-minimal: the cartridge slides into the 2U bay and connects via the existing quick-connect harness, which keeps downtime on the protected load short. Reusable packaging doubles as a return container for the depleted battery cartridge, simplifying compliant lead-acid battery recycling for facilities and IT teams. Confirm the exact SmartOnline model number and quantity required before ordering, since some UPS chassis require more than one RBC96-2U cartridge to reach full rated runtime.

Key Features

• Pre-Assembled 72VDC Cartridge — The two-string, 72V battery pack ships fully wired, eliminating manual cell-to-cell wiring during replacement.
• Certified to Original Specification — Batteries are screened to meet or exceed the SmartOnline UPS manufacturer's original performance requirements.
• Leak-Proof, Maintenance-Free Design — Sealed lead-acid construction is safe for enclosed data closets and AV equipment racks.
• 2U Form Factor — The cartridge is sized to drop directly into the battery bay of compatible 2U SmartOnline UPS chassis without modification.
• Recyclable Shipping Packaging — The same carton used for delivery can be reused to ship the depleted battery cartridge to a recycling center.
• 18-Month Limited Warranty — The warranty covers the replacement battery cartridge for U.S. and Canada purchases.

Typical Applications

• Data closets and server rooms running SmartOnline UPS systems that require double-conversion online protection
• AV control rooms and equipment racks where uninterrupted, always-on power protects live sessions
• Facilities battery replacement programs maintaining SmartOnline UPS fleets across multiple sites
• Mission-critical network and AV racks where scheduled battery replacement helps avoid unplanned downtime

Technical Specifications

Frequently Asked Questions

How do I confirm the RBC96-2U is the correct battery for my SmartOnline UPS?

Check the model and serial number label on your SmartOnline UPS chassis, or reference the battery replacement label inside the battery compartment, before ordering. Some SmartOnline configurations require more than one RBC96-2U cartridge to reach full rated runtime.

Can this be installed without powering down connected AV or IT equipment?

Many SmartOnline units support hot-swappable battery replacement, but always confirm your specific UPS model supports live battery swaps before proceeding, and follow lockout procedures appropriate for a commercial data closet or AV rack environment.

Is any special tooling required for installation in a rack-mount AV or IT enclosure?

No. The cartridge is pre-wired and connects through the existing quick-connect harness, so installation typically requires only sliding the cartridge into the 2U bay and reconnecting the battery harness.

What is the expected service life of the RBC96-2U cartridge?

Sealed lead-acid battery cartridges of this type typically provide 3 to 5 years of service depending on ambient temperature and discharge cycles, which is common in warmer AV rack and data closet installations.

What warranty coverage applies to this replacement cartridge?

The RBC96-2U carries an 18-month limited warranty for U.S. and Canada purchases, separate from the warranty on the UPS chassis itself.

Does Creation Networks provide installation support for commercial UPS battery backup installation projects?

Yes. Contact Creation Networks for compatibility verification and installation guidance when replacing battery cartridges as part of a larger AV rack or data closet power protection project.
