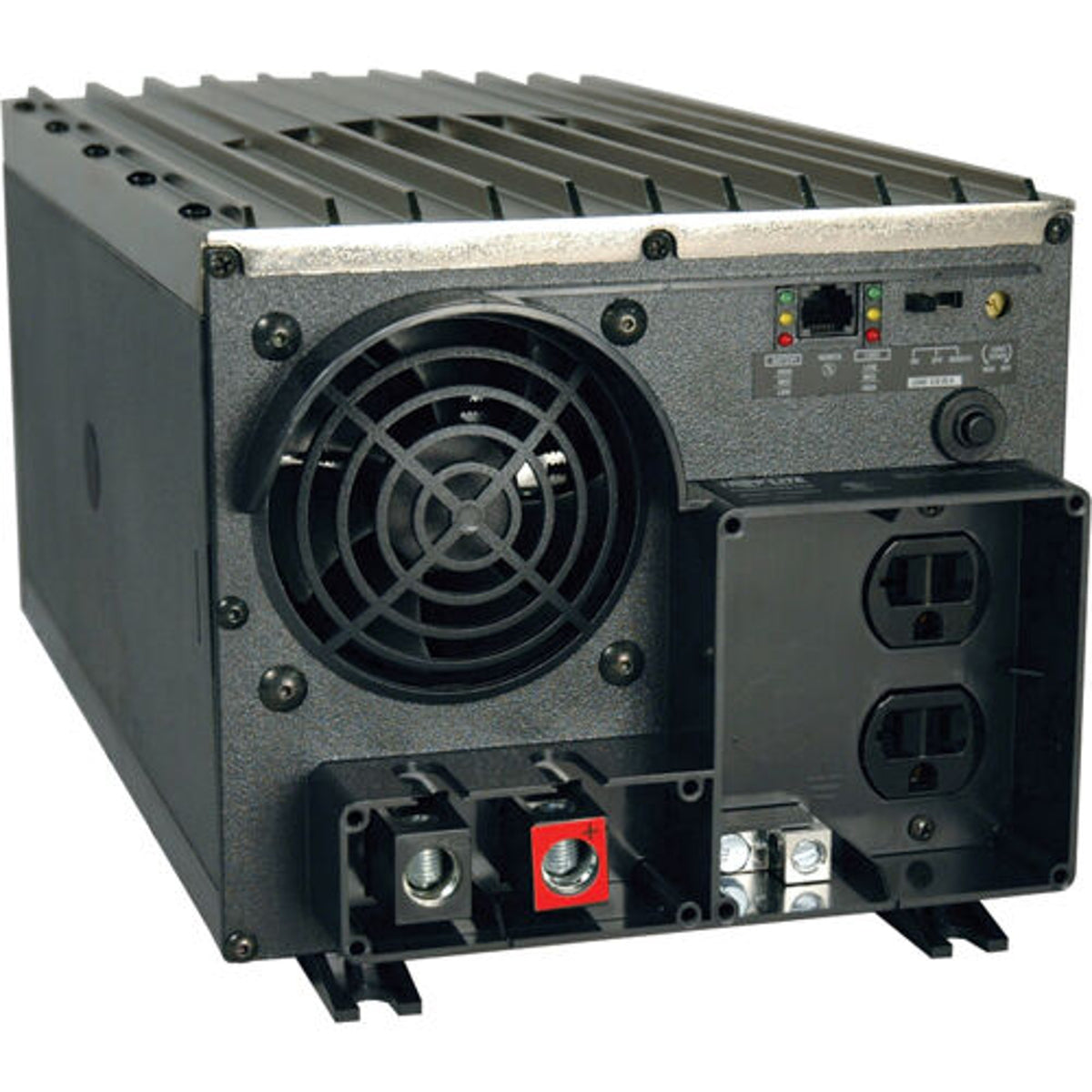

Eaton PV2000FC – 2000W 12V DC to AC Inverter

Product Overview

The Eaton PV2000FC is a 12V DC to AC inverter that continuously supplies up to 2000W of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. This frequency-controlled inverter locks AC output at 60Hz for stable operation of motor loads, making it well suited to running inductive equipment with high-current startup needs. It includes high-current DC input terminals for permanent installation and an RJ45 port for connecting an optional APS/PowerVerter Remote Switch. Fleet operators and work-truck owners use it to power motors and other demanding equipment reliably in the field.

Product Description

The PV2000FC utilizes a vehicle's battery to efficiently power office equipment on the road or power tools at a work site, continuously supplying up to 2000W of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Its frequency control locks AC output at 60Hz, providing the operating stability that motor loads require during startup and continuous running. A set of high-current DC input terminals is included for a simple, permanent installation, useful for vehicles or equipment setups where the inverter stays wired in place rather than plugging into a cigarette lighter socket. The large-transformer design is specialized for powering motors and other inductive loads with high-current startup needs, a common requirement for job-site tools and equipment that a smaller inverter can struggle to start reliably. A built-in RJ45 port allows connection of an optional APS/PowerVerter Remote Switch (APSRM4) for remote control. Optional features extend functionality further: a load sense function can enable automatic inverter shutoff and startup as connected equipment powers on and off, with a front-panel potentiometer to set the response threshold. An Ignition Switch Control Jack connects the inverter to the vehicle's ignition system for automatic control, and an Inverter ON/OFF Relay Jack connects to a user-supplied indicator for remote visual status of inverter operation.

Key Features

• 2000W Continuous Output — Powers office equipment and tools from a 12V battery or automotive DC source.
• 60Hz Frequency Control — Locks AC output frequency for stable operation of motor loads.
• High-Current DC Input Terminals — Supports simple, permanent installation.
• Large-Transformer Design — Specialized for powering motors and inductive loads with high-current startup needs.
• RJ45 Remote Switch Port — Connects an optional APS/PowerVerter Remote Switch (APSRM4).
• Optional Load Sense Function — Enables automatic inverter shutoff and startup based on connected equipment status.
• Ignition and Relay Control Jacks — Support automatic control tied to vehicle ignition and remote visual status indication.

Typical Applications

• Government space mobile power (fleet/service vehicles)
• Data center or facilities field service power for motor loads

Technical Specifications

Frequently Asked Questions

Why does frequency control matter for this inverter?

Locking AC output at 60Hz provides operating stability specifically needed for motor loads and other inductive equipment.

Can this inverter be permanently wired into a vehicle?

Yes, it includes high-current DC input terminals designed for simple, permanent installation.

Is remote control available?

Yes, a built-in RJ45 port supports connection of an optional APS/PowerVerter Remote Switch (APSRM4).

What is the load sense function?

It is an optional feature that enables automatic inverter shutoff and startup as connected equipment is powered on and off, adjustable via a front-panel potentiometer.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help configure the optional control features on this inverter?

Yes, our team can help walk through load sense, ignition control and remote switch options for your installation.
