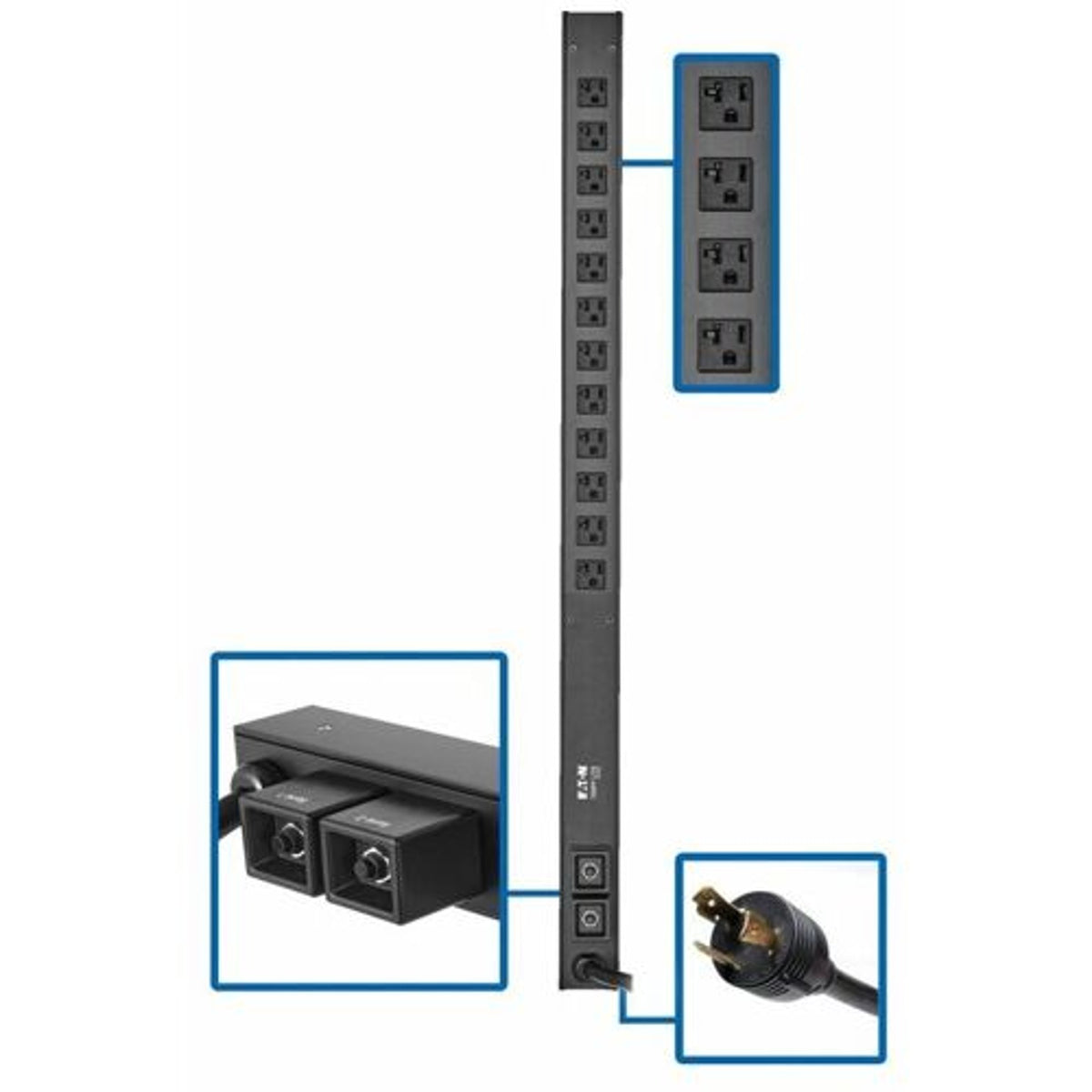

Eaton PDUV30-36 – 2.9kW Basic PDU, 12 Outlets

Product Overview

The Eaton PDUV30-36 is a 2.9kW 120V single-phase basic PDU designed to distribute network-grade power to multiple loads in networking, telecom, and AV racks. This 36-inch, 0U rack-mount PDU delivers 12 NEMA 5-15/20R outlets across two breakered load banks, making it a practical choice for data centers, computer rooms, and network closets. Its switchless design and L5-30P input plug make it a straightforward, no-frills power distribution option for high-density equipment racks.

Product Description

Not every rack needs remote monitoring or outlet switching — many installations simply require dependable, code-compliant power distribution to a bank of equipment. The PDUV30-36 basic PDU fills that role with two breakered load banks, each providing six 5-15/20R outlets, for a total of 12 outlets across the unit. A 10-foot cord with a NEMA L5-30P input plug connects the PDU to the facility's AC power source, a generator, or a protected UPS system, distributing power to connected loads throughout the rack. Dual 20A circuit breakers protect connected equipment from dangerous overloads, and the deliberately switchless design helps prevent an accidental shutdown that could otherwise take down an entire rack of production equipment. At 36 inches, the 0U vertical PDU mounts using included toolless mounting buttons or mounting brackets with user-supplied hardware, fitting into EIA-standard 19-inch racks without consuming usable rack unit space. The brackets can also be used to mount the PDU to the underside of a counter with two user-supplied screws, giving installers flexibility beyond standard rack applications. Bolt-down retention brackets keep power cords organized at each outlet, reducing clutter and accidental disconnections in busy server rooms. This basic PDU is a good fit for networking, telecom, security, and audio/video and sound reinforcement applications where dependable, network-grade power distribution matters more than remote management features.

Key Features

• 12 NEMA 5-15/20R Outlets — Split across two breakered load banks for organized, dependable power distribution to rack equipment.
• Dual 20A Circuit Breakers — Protect connected components from dangerous overloads on each load bank.
• Switchless Design — Reduces the risk of accidental shutdown that could cause costly downtime.
• L5-30P Input with 10-Foot Cord — Connects to a facility's AC source, generator, or protected UPS system.
• 36-Inch 0U Rack-Mount Form Factor — Mounts vertically without consuming usable rack unit space, using toolless buttons or included brackets.
• Bolt-Down Retention Brackets — Keep power cords organized and reduce clutter in the rack.
• Under-Counter Mounting Option — Brackets can secure the PDU beneath a counter with user-supplied screws.

Typical Applications

• Data centers and computer rooms distributing network-grade power to multiple loads
• Network closets housing networking, telecom, and security equipment
• Server rooms requiring dependable no-frills power distribution
• Audio/video and sound reinforcement racks needing organized outlet distribution

Technical Specifications

Frequently Asked Questions

Does this PDU offer remote monitoring or outlet switching?

No, the PDUV30-36 is a basic PDU without remote monitoring or switching. It is designed for dependable, no-frills power distribution.

How many outlets are on each circuit breaker?

Each of the two 20A circuit breakers protects a load bank of six 5-15/20R outlets, for 12 outlets total.

What input connection does this PDU require?

It uses a 10-foot cord terminating in a NEMA L5-30P plug, which connects to a compatible AC source, generator, or protected UPS.

Can this PDU be mounted somewhere other than a rack?

Yes, the included mounting brackets can also be used to secure the PDU to the underside of a counter with two user-supplied screws.

How much rack space does this PDU require?

It is a 0U device, meaning it mounts vertically in the rack without consuming any horizontal rack unit space.

Is this PDU suitable for AV equipment racks?

Yes, it is well suited to audio/video and sound reinforcement applications in addition to networking, telecom, and security racks.

What warranty applies to this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
