Eaton PDUV20HVL6-72 – 3.7kW Basic PDU, 38 Outlets, 0U

Product Overview

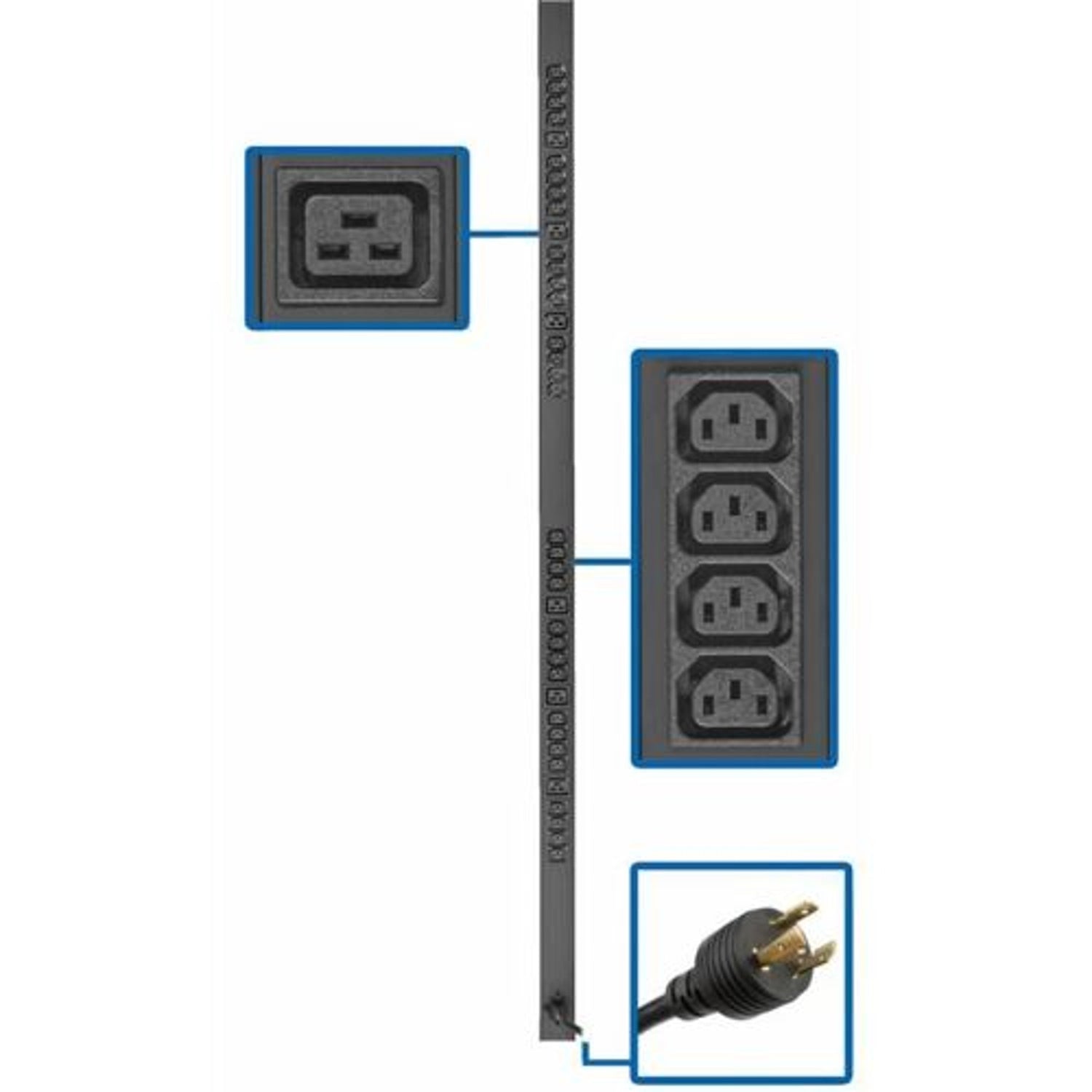

The Eaton PDUV20HVL6-72 is a 3.7kW single-phase basic PDU built for networking, telecom, security, and audio/video applications that need reliable, no-frills power distribution. With 32 C13 and 6 C19 outlets on a 63.75-inch 0U vertical housing, it is well suited to small and mid-sized data centers, computer rooms, and network closets. This basic PDU distributes network-grade 208/230V power to multiple loads from a single L6-20P input.

Product Description

This single-phase 208/230V PDU distributes network-grade power to multiple loads and is recommended for small to mid-sized data centers, computer rooms, and network closets, as well as networking, telecom, security, audio/video, and sound reinforcement applications. The PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment, giving integrators a high outlet count without stepping up to a 3-phase unit. A 10-foot cord with a NEMA L6-20P input plug connects the PDU to a facility's AC power source, a generator, or a protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown that could lead to costly downtime, which matters in shared racks accessed by multiple technicians. The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons, or the included mounting clips and hardware, which can also be used to secure the PDU to a wall, counter, or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to connected components' plugs to keep them connected and devices continuously powered, an important detail in racks with vibration or frequent cable handling.

Key Features

• 38 Total Outlets — 32 C13 and 6 C19 outlets support a wide mix of server and network equipment loads.
• 3.7kW Capacity — Single-phase 208/230V power suited to small and mid-sized data center racks.
• Toolless 0U Vertical Mounting — Installs in a 63.75-inch housing without consuming rack U-space.
• Switchless Design — Prevents accidental shutdown of connected equipment during rack maintenance.
• Plug-Lock Inserts Included — C20 and C14 inserts keep connected cords secure against vibration or accidental tugging.
• Flexible Mounting — Mounting clips and hardware also allow wall or counter mounting where rack space is unavailable.

Typical Applications

• Small to mid-sized data centers
• Computer rooms and network closets
• Networking and telecom equipment racks
• Audio/video and sound reinforcement installations

Technical Specifications

Frequently Asked Questions

What outlet types does this PDU provide?

It provides 32 C13 outlets and 6 C19 outlets, for a total of 38 connection points.

How is this PDU mounted in a rack?

It mounts as a 0U vertical unit in an EIA-standard 19-inch rack using included toolless mounting buttons, or with included mounting clips and hardware for wall or counter mounting.

What input plug does it use?

It uses a NEMA L6-20P input plug on a 10-foot cord, connecting to facility power, a generator, or a protected UPS.

Do the plug-lock inserts work with any cord?

The included C20 and C14 plug-lock inserts attach to connected components' plugs to help keep them seated and prevent accidental disconnection.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help confirm this PDU fits my rack and AV/data equipment mix?

Yes, our team can help verify outlet count, mounting method, and voltage compatibility before you order.
