Eaton PDUV20-60 – 1.9kW 120V Basic PDU, 28 Outlets, 60-in.

Product Overview

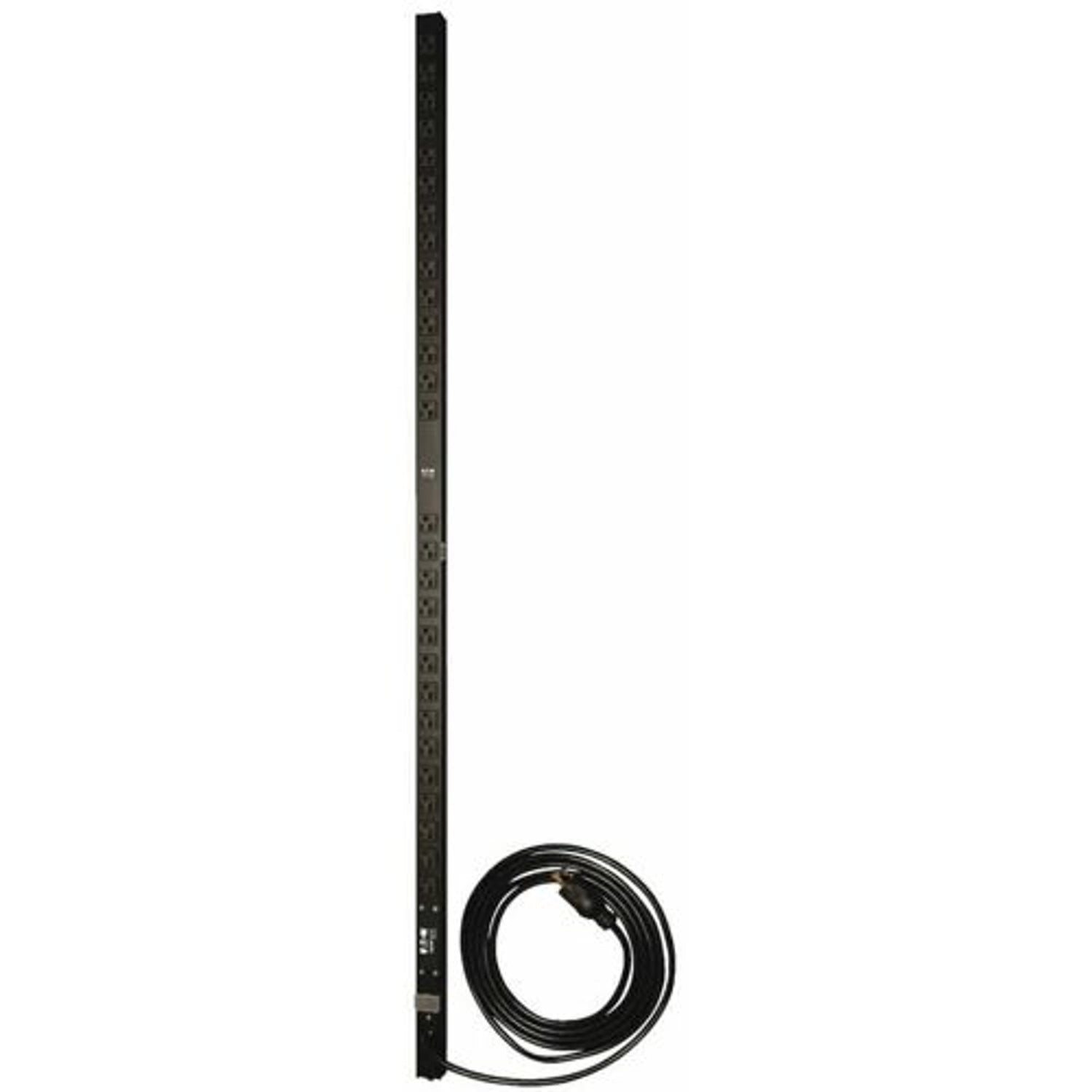

The Eaton PDUV20-60 is a 1.9kW single-phase basic PDU built to distribute network-grade 120V power to a large number of connected devices from a single 0U vertical rack PDU. With 28 NEMA 5-15/20R outlets along a 60-inch housing, it is designed for networking, telecom, security, and audio/video applications in small to mid-sized data centers, computer rooms, and network closets.

Product Description

Dense racks of switches, access points, cameras, and AV endpoints often need more outlets than a standard PDU provides, and the PDUV20-60 addresses that with 28 NEMA 5-15/20R outlets along a 60-inch, 0U vertical rack PDU. A 15-foot cord with L5-20P input plug, plus an included 5-20P adapter, connects the unit to facility AC power, a generator, or a protected UPS system for reliable pass-through distribution to connected loads. Safety features include a lighted on/off switch protected by a transparent plastic cover to help prevent accidental shutdown, along with a 20A circuit breaker that protects connected components from dangerous overloads. The 60-inch housing mounts vertically in an EIA-standard 19-inch rack using included toolless mounting buttons, or with mounting clips and hardware for wall, counter, or other flat-surface installation. Bolt-down retention brackets keep power cords organized and the rack free of clutter, which is useful in cabinets running dozens of individually corded devices. This basic PDU is well suited to networking, telecom, security, audio/video, and sound reinforcement applications where a high outlet count matters more than metering or network management.

Key Features

• 28 NEMA 5-15/20R Outlets — A high outlet count supports dense racks of individually corded switches, cameras, and AV endpoints.
• Protected Lighted On/Off Switch — A transparent cover helps prevent accidental shutdown of connected equipment.
• 20A Circuit Breaker — Built-in overcurrent protection guards connected components from dangerous overloads.
• Toolless Vertical Mounting — Included mounting buttons allow quick installation into a standard 19-inch rack.
• Bolt-Down Retention Brackets — Cable retention hardware keeps power cords organized and the rack free of clutter.
• 15-ft. Cord with L5-20P Input — The included 5-20P adapter offers flexibility across different power source receptacles.

Typical Applications

• Data centers
• Computer rooms
• Network closets
• Broadcast studio

Technical Specifications

Frequently Asked Questions

How many devices can connect to the PDUV20-60?

The unit offers 28 NEMA 5-15/20R outlets, supporting a large number of individually corded devices in a single rack.

What applications is this PDU designed for?

It is designed for networking, telecom, security, audio/video, and sound reinforcement applications in small to mid-sized data centers, computer rooms, and network closets.

Can this PDU be mounted somewhere other than a rack?

Yes, the included mounting clips and hardware also allow wall, counter, or other flat-surface installation.

Does the PDU include overload protection?

Yes, a 20A circuit breaker protects connected components from dangerous overloads.

Is this a metered PDU?

No, the PDUV20-60 is a basic PDU without built-in current metering.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
