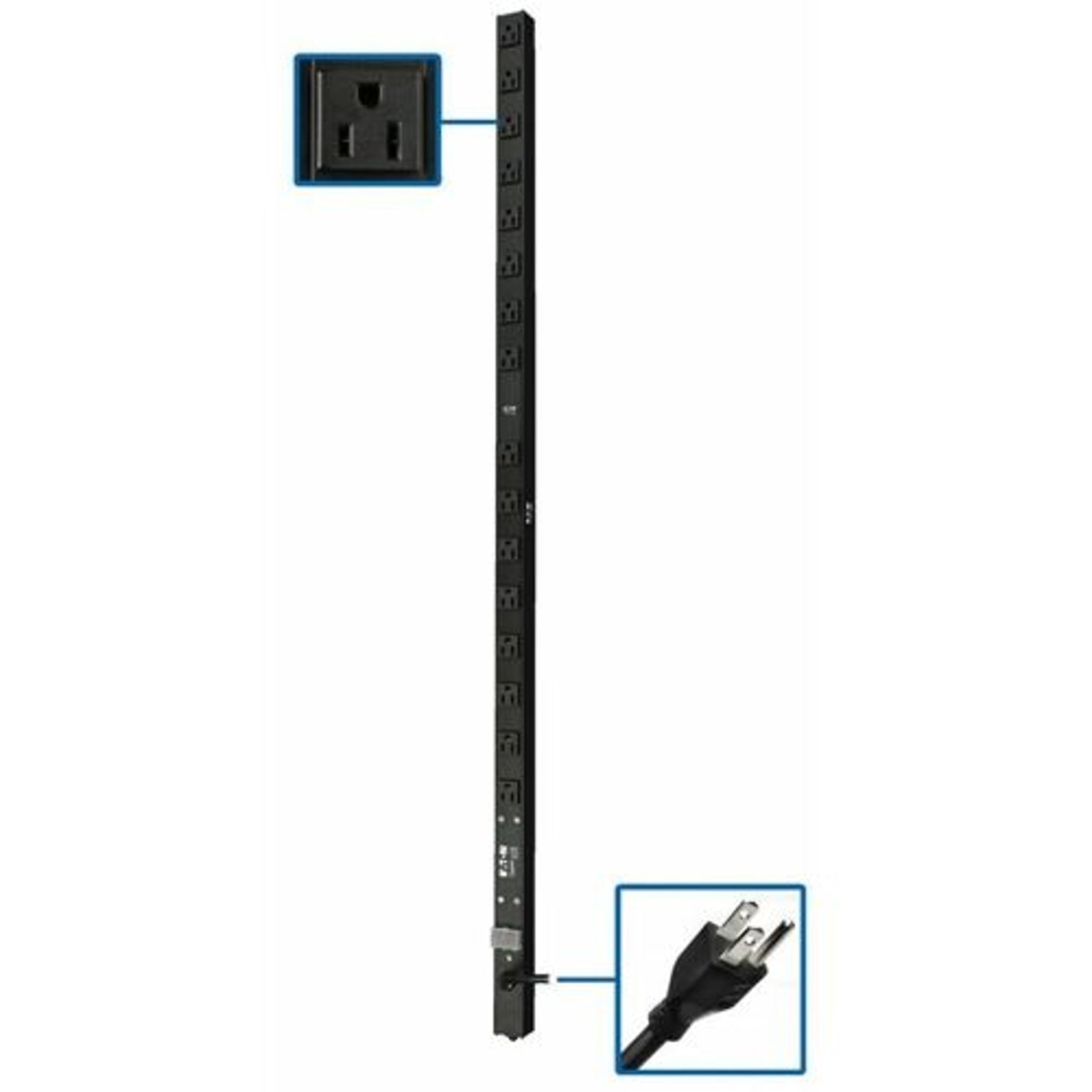

Eaton PDUV15-48 – 1.4kW 120V Basic PDU, 16-Outlet, 0U

Product Overview

The Eaton PDUV15-48 is a basic 120V single-phase PDU delivering 1.4kW of network-grade power distribution to multiple loads in a rack. Built for networking, telecom, security, audio/video, and sound reinforcement applications, it offers a straightforward, no-frills solution recommended for small to mid-sized data centers, computer rooms, and network closets. With 16 NEMA 5-15R outlets and a 48-inch 0U vertical profile, the PDUV15-48 is designed for racks where preserving horizontal rack unit space matters.

Product Description

The PDUV15-48 is an ideal no-frills PDU for facilities that need dependable multi-outlet power distribution without networked monitoring features. Its 16 NEMA 5-15R outlets connect a wide range of standard equipment, and a 15-foot cord with a 5-15P input plug connects the unit to a facility's AC power source, generator, or protected UPS system to distribute power to connected loads. This makes it a versatile fit for networking, telecom, security, and AV/sound reinforcement equipment deployed in racks of varying sizes.

Safety features include a lighted on/off switch protected by a transparent plastic cover to guard against an accidental shutdown that could cause costly downtime, along with a 15A circuit breaker that protects connected components from dangerous overloads. The 48-inch 0U form factor mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons, or with the included mounting clips and hardware, which also allow the unit to be secured to a wall, counter, or other flat surface. This flexibility makes the PDUV15-48 a practical choice for small to mid-sized data centers, computer rooms, and network closets that need reliable basic power distribution.

Key Features

• 16 NEMA 5-15R Outlets — Distributes power to a wide range of networking, telecom, and AV equipment.
• Lighted, Guarded On/Off Switch — A transparent cover helps prevent accidental shutdowns.
• 15A Circuit Breaker — Protects connected equipment from dangerous overloads.
• Toolless Mounting Buttons — Simplifies installation in EIA-standard 19-inch racks.
• Flexible Mounting Options — Included clips and hardware also allow wall, counter, or flat-surface mounting.
• 15-Foot Input Cord — Reaches a facility AC source, generator, or protected UPS with room to spare.
