Eaton PDUMV32HVNETLX – 7.4kW Switched PDU, LX Interface

Product Overview

The Eaton PDUMV32HVNETLX is a 0U switched rack PDU delivering 7.4kW at 230V/32A through 24 individually controllable outlets, built for data centers, server rooms, and network closets that need remote power control. With a built-in LX Platform network interface, this switched PDU gives operations teams the ability to turn on, turn off, reboot, or lock out power to individual outlets without a site visit. The IEC 309 32A Blue input plug and 0U vertical mounting make it a straightforward fit for existing rack cabinets running on single-phase 230V power. Facilities managing remote or unmanned data center sites will benefit from the reduction in truck rolls this switched PDU enables.

Product Description

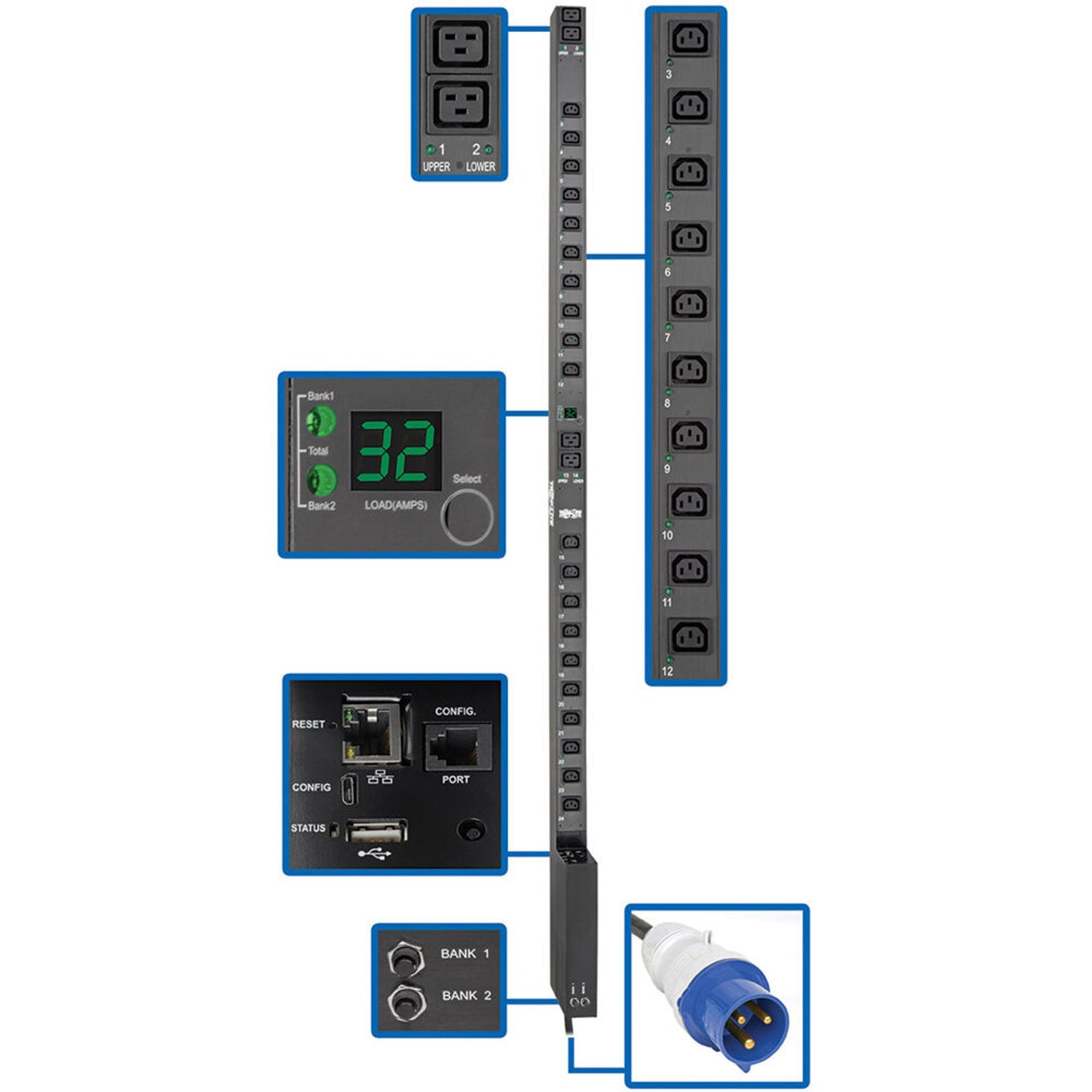

This 0U switched PDU distributes, monitors, and manages network-grade AC power for equipment mounted in a standard 19-inch rack. It is recommended for data centers, server rooms, and network closets where administrators need advanced network control and remote power monitoring, with the ability to turn on, turn off, reboot, or lock out power to each outlet individually. Being able to manage network power consumption and balance loads remotely, without visiting the site, helps reduce the ongoing cost of data center maintenance. During normal operation, 24 individually controllable outlets — 20 C13 and four C19 — distribute AC power to connected equipment, each accompanied by an LED that illuminates when the outlet is energized and ready for use. The outlets are split into two load banks, each protected by its own circuit breaker that trips if the connected load on that bank exceeds its maximum rating, and plug-lock insert sleeves are included to keep connected cords from working loose. A digital load meter reports the load for each outlet bank separately as well as the total connected load, which helps prevent the kind of overload that leads to costly downtime or damaged equipment. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications over a secure web browser, SNMP, telnet, or SSH, with 10/100 Mbps auto-sensing Ethernet connectivity and support for IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1-3, telnet, SSH, FTP, DHCP, and NTP. The 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or brackets, and the optional PDUMVROTATEBRKT kit allows the outlets to face the rear for better airflow or equipment access. A 10-foot cord with an IEC 309 32A Blue (2P+E) input plug connects the single-phase PDU to a compatible AC source, generator, or protected UPS system. The PDUMV32HVNETLX is TAA-compliant for GSA Schedule purchases and is backed by a 2-year warranty.

Key Features

• 24 Individually Switched Outlets — 20 C13 and 4 C19 outlets can each be turned on, off, or rebooted remotely without a site visit.
• Built-In LX Platform Network Card — Java-free HTML5 web interface supports SNMP, telnet, SSH, and secure browser access for 24/7 remote management.
• Digital Load Metering — Separate ammeter readings for each outlet bank and total load help prevent overloads before they trip a breaker.
• 0U Vertical Mounting — Toolless mounting buttons or brackets install the PDU in the vertical cable channel of a standard 19-inch rack without consuming rack units.
• IEC 309 32A Blue Input — A 10-foot cord connects directly to 230V single-phase mains, generator, or protected UPS power sources.
• Optional EnviroSense2 Support — Add-on environmental monitoring modules extend the PDU's monitoring beyond power to temperature and humidity.
• 2-Year Manufacturer Warranty — Backed by Eaton's 2-year warranty for added confidence in data center deployments.

Typical Applications

• Data center
• Server room
• Network closet
• Colocation facility

Technical Specifications

Frequently Asked Questions

Can individual outlets be switched remotely?

Yes, each of the 24 outlets can be turned on, off, or rebooted independently through the built-in LX Platform network interface, without requiring a site visit.

What network protocols does the LX Platform support?

The interface supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP over a 10/100 Mbps auto-sensing Ethernet connection.

How does this PDU mount in a rack?

It mounts in 0U of space using toolless mounting buttons or included brackets, and the optional PDUMVROTATEBRKT kit lets you install it with outlets facing the rear for better airflow or access.

What input power does the PDU require?

It uses a 10-foot cord with an IEC 309 32A Blue (2P+E) plug, connecting to a 230V single-phase source, generator, or protected UPS system.

Can I add environmental monitoring to this PDU?

Yes, optional EnviroSense2 modules, sold separately, add environmental monitoring capabilities alongside the PDU's power management features.

Is this PDU eligible for federal or GSA purchases?

Yes, the PDUMV32HVNETLX is TAA-compliant, making it eligible for GSA Schedule purchases.

What warranty comes with this PDU?

It is backed by Eaton's 2-year manufacturer warranty; contact Creation Networks for details on extended coverage options.
