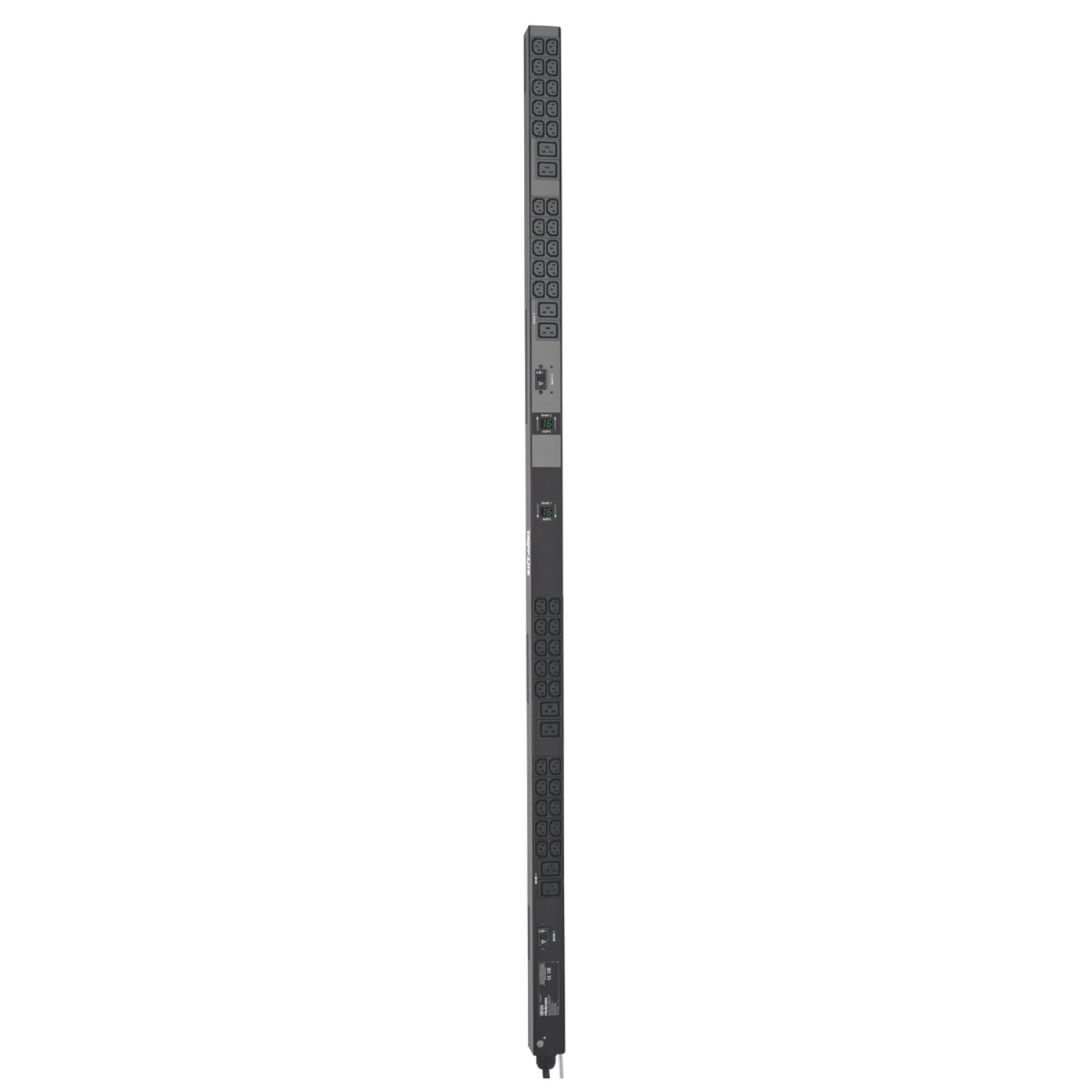

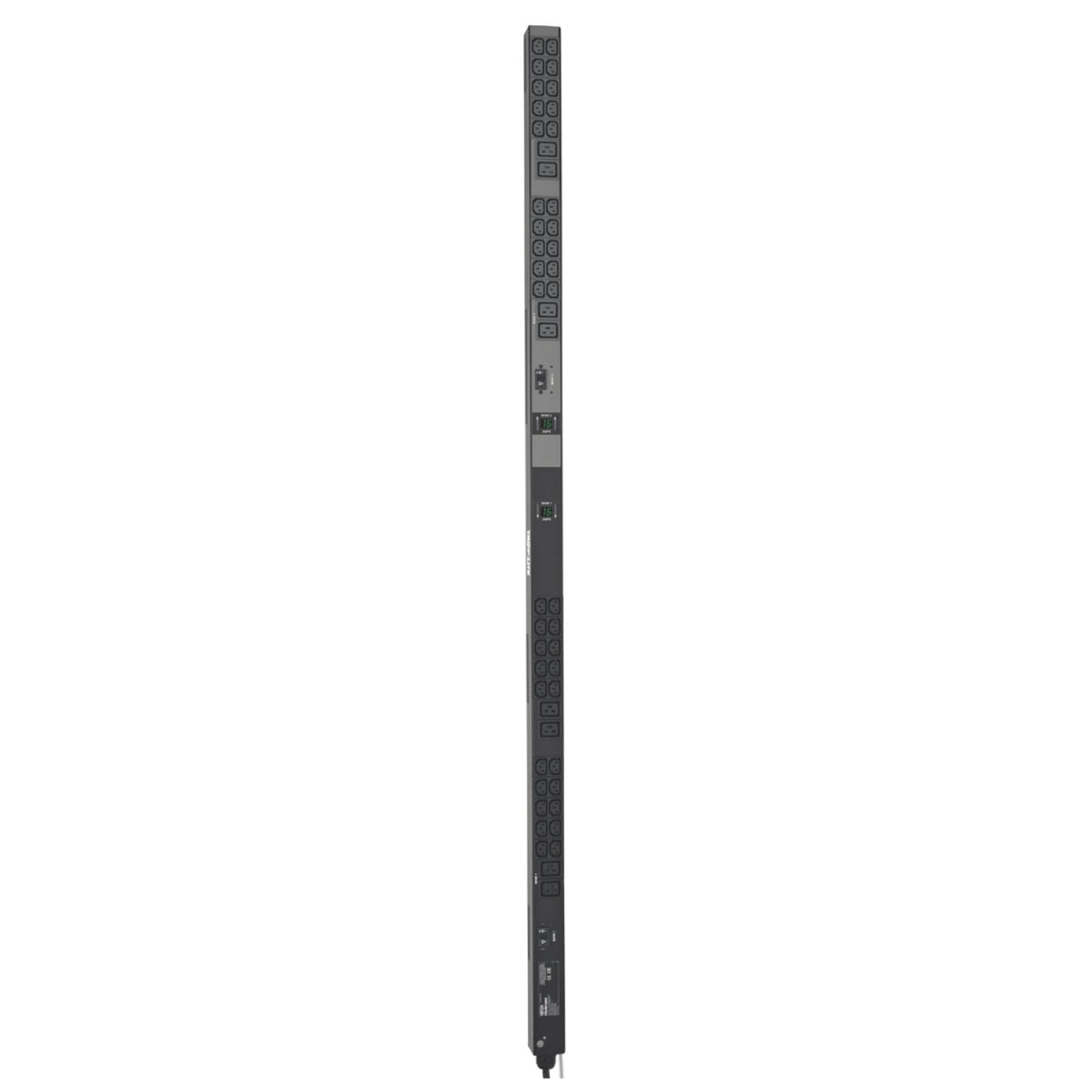

Eaton PDUMV32HV – 7.4kW 230V Metered Vertical PDU, 48 Outlets

Product Overview

The Eaton PDUMV32HV is a 7.4kW single-phase metered vertical PDU built for high-density data center racks running mixed C13/C19-corded equipment. Delivering 230V power through 48 outlets arranged in two independently metered load banks, this 70-inch 0U rack PDU gives facility staff real-time current visibility on both banks to help prevent circuit overloads across busy server rooms and network closets.

Product Description

The 70-inch (178-centimeter) PDUMV32HV distributes single-phase AC power to rack-mounted computers, routers, switches, and servers through 48 outlets, arranged in two separate load banks of 24 outlets each (4 C19 and 20 C13 per bank). Each bank has its own dedicated 20A circuit breaker and a digital meter reporting real-time output current in amps, letting staff visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime caused by tripped breakers. Special guards help prevent the breakers from tripping accidentally, and outlets, breakers, and ammeters are color-coded and labeled for fast identification during installation or troubleshooting. The all-metal housing mounts vertically in a rack using preinstalled 9 mm buttons or included hardware, making it well suited for server rooms, network closets, and data centers running high outlet counts on a single PDU. An IEC-309 32A blue input plug with a 10-foot (3-meter) cord connects to compatible facility AC power, generator, or protected UPS sources. Included C20 and C14 plug-lock inserts secure connected equipment cords in place, keeping servers and switches continuously powered even in high-traffic cabinets, and a ground screw is provided for equipment requiring a chassis ground connection.

Key Features

• 48 Total Outlets — Two load banks of 24 outlets each (4 C19, 20 C13) support high-density mixed IT equipment loads.
• Dual Digital Ammeters — Each load bank reports real-time output current in amps for visual load balancing.
• Breaker Trip Guards — Special guards help prevent accidental breaker trips in high-traffic cabinets.
• Color-Coded Outlets and Breakers — Labeling speeds up identification during installation and troubleshooting.
• IEC-309 32A Input Plug — A 10-ft. cord connects to compatible high-current AC power, generator, or UPS sources.
• Plug-Lock Inserts — Included C20 and C14 inserts help keep connected equipment cords securely plugged in.

Typical Applications

• Data centers
• Server rooms
• Network closets

Technical Specifications

Frequently Asked Questions

What equipment can connect to the PDUMV32HV?

Its 48 C13 and C19 outlets support standard IT equipment power cords used by servers, routers, switches, and other rack-mounted devices.

How does the dual-bank metering help with load balance?

Each load bank has its own dedicated breaker and digital ammeter, letting staff monitor and balance current draw independently across the two banks.

What input power does this PDU require?

It requires a 230V single-phase circuit terminating in an IEC-309 32A blue plug.

How is the PDU mounted in a rack?

The all-metal housing mounts vertically using preinstalled 9 mm buttons or the included mounting hardware.

Do the plug-lock inserts require special cords?

No, the included C20 and C14 plug-lock inserts work with standard equipment cords to help keep them securely connected.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
