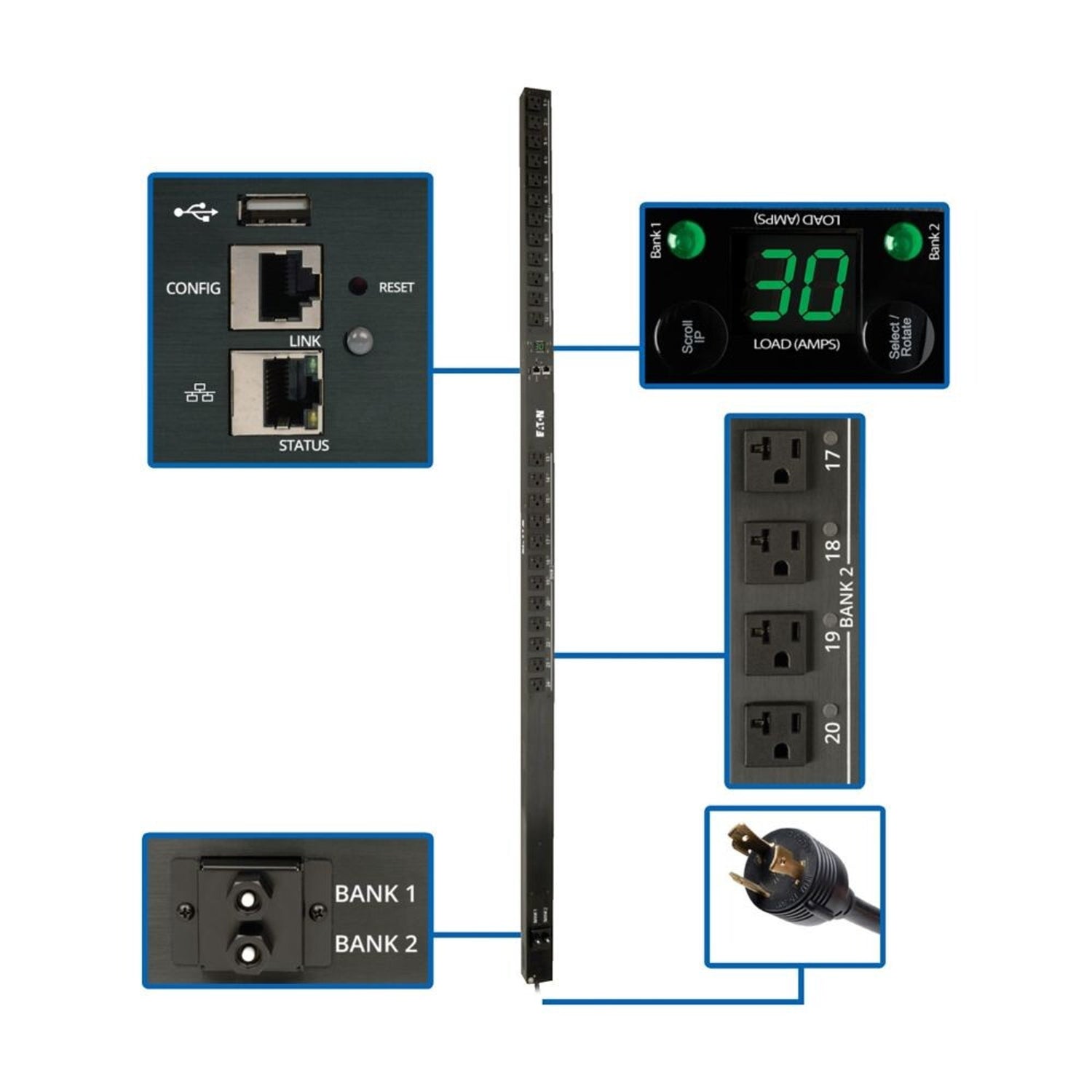

Eaton PDUMV30NETLX – Switched PDU, LX Interface, 0U

Product Overview

The Eaton PDUMV30NETLX is a 2.9kW single-phase switched PDU featuring the LX network management interface, delivering 120V power across 24 5-20R outlets in a 0U rack-mount unit with a 10 ft. cord and NEMA 5-30 input. As a switched PDU, it allows remote outlet-level control alongside network-based monitoring, giving IT staff the ability to power-cycle equipment and track load conditions without physically accessing the rack. This unit is designed for data center and network IT environments that need remote switching capability on a standard 120V circuit.

Product Description

Remote outlet control is a valuable capability for IT teams managing racks across multiple rooms or facilities, and the PDUMV30NETLX delivers this through its LX network management interface combined with switched outlet functionality. The PDU distributes 2.88kW of single-phase 120V power at 24A across 24 5-20R outlets, giving technicians a large outlet count for standard rack-mount equipment on a single circuit. Its NEMA 5-30 input and 10 ft. cord connect the unit to a facility power source, and the 0U rack-mount design installs without consuming horizontal rack space. The LX interface is Eaton's network management platform for switched and monitored PDUs, providing the remote access needed to turn outlets on or off and monitor load conditions from a central location. This makes the PDUMV30NETLX well suited for data center racks and network operations environments where remote power cycling reduces the need for on-site visits to resolve unresponsive equipment, and where centralized visibility into a 120V circuit's load helps IT staff manage capacity across multiple racks.

Key Features

• Switched Outlet Control — allows remote on/off control of individual outlets for power-cycling equipment without on-site access.
• LX Network Management Interface — provides remote monitoring and control capability for the PDU over the network.
• 24 5-20R Outlets — supports a large number of standard 120V rack-mount devices from a single PDU.
• 0U Rack-Mount Form Factor — installs in a standard rack without consuming horizontal rack unit space.
• NEMA 5-30 Input with 10 ft. Cord — connects to a facility 120V power source with ample reach.

Typical Applications

• Data center racks requiring remote outlet switching on a 120V circuit
• Network operations centers managing equipment across multiple racks or rooms
• Server rooms where remote power-cycling reduces the need for on-site visits

Technical Specifications

Frequently Asked Questions

What does the LX interface provide?

The LX network management interface provides remote monitoring and switching control for the PDU's outlets over the network.

Can I turn individual outlets off remotely?

Yes, as a switched PDU, the PDUMV30NETLX allows remote on/off control of individual outlets.

What input connector does this PDU use?

It uses a NEMA 5-30 input with a 10 ft. cord.

How many outlets does this PDU provide?

It provides 24 5-20R outlets rated for 120V.

What is the warranty on this product?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help configure remote access for this PDU?

Yes, our team can provide guidance on initial network setup for the LX management interface.
