Eaton PDUMV30HVNETLX – 5/5.8kW Switched PDU, LX Platform

Product Overview

The Eaton PDUMV30HVNETLX is a single-phase switched rack PDU delivering 5kW at 208V or 5.8kW at 240V through 24 outlets — 20 C13 and 4 C19 — with remote outlet control via the built-in LX Platform network interface. Recommended for IT and industrial applications alike, it lets operations teams turn on, turn off, reboot, or lock out power to individual outlets without a site visit. The NEMA L6-30P input and 0U vertical mounting fit standard 19-inch rack installations already wired for L6-30 circuits. Integrators managing remote data center or network closet sites will find the remote switching capability reduces the need for on-site troubleshooting.

Product Description

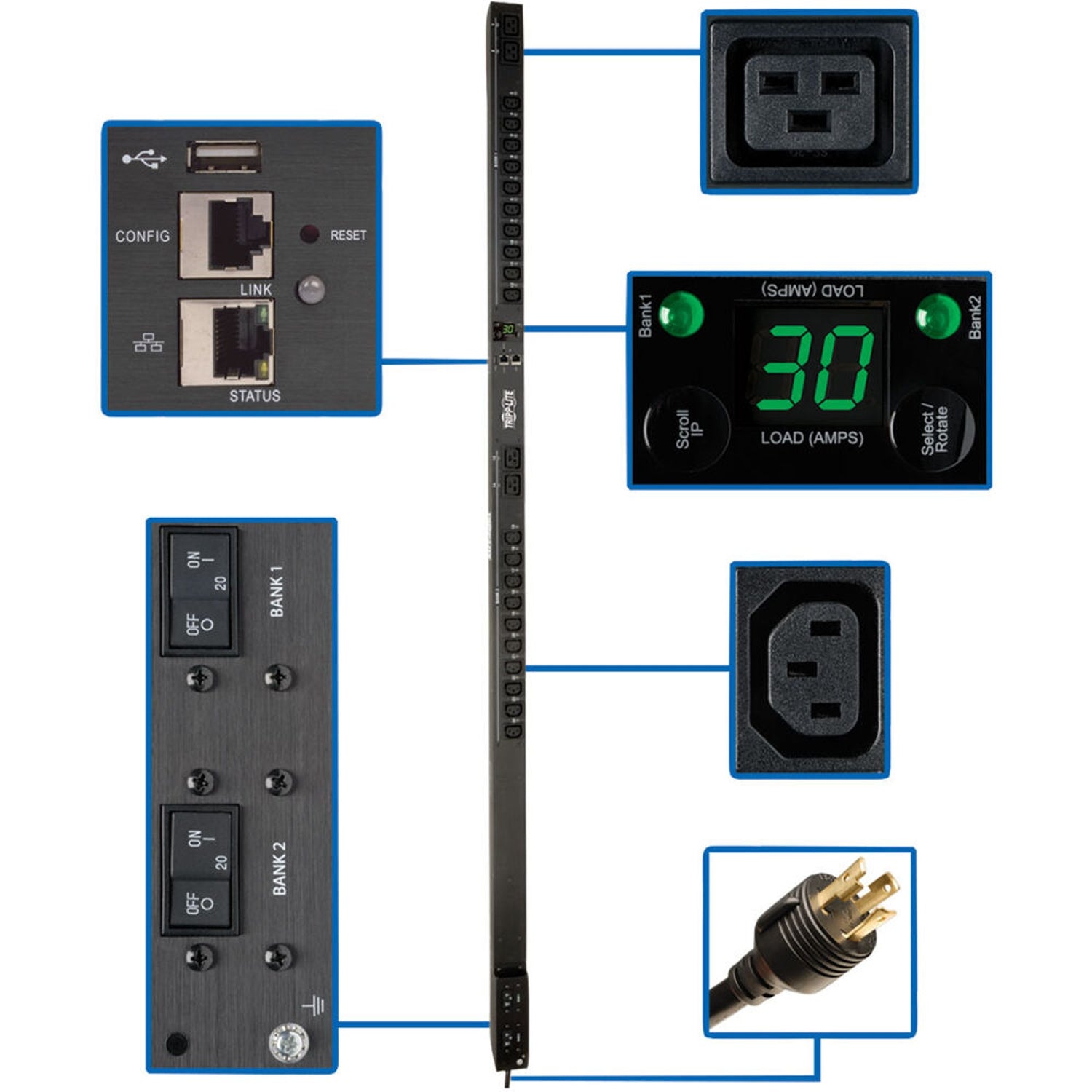

The PDUMV30HVNETLX 5/5.8kW single-phase switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot, or lock out power to each outlet individually. Recommended for any IT or industrial application, it features 24 switched outlets — 20 C13 and 4 C19 — with LEDs that indicate each outlet's on/off power status at a glance. A 10-foot cord with a NEMA L6-30P plug connects the PDU to a compatible AC power source, generator, or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via a secure web browser, SNMP, telnet, or SSH, with 10/100 Mbps auto-sensing Ethernet for reliable network communication. Supported protocols include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP. A digital ammeter lets operations staff monitor each load bank in real time to ensure it stays well below maximum capacity, reducing the risk of overload-related downtime. The PDU mounts in 0U of rack space in EIA-standard 19-inch racks using the included toolless mounting buttons or rack-mounting brackets, and the optional PDUMVROTATEBRKT kit allows installation with outlets facing the rear for improved airflow or equipment access. This model is TAA-compliant, supporting GSA Schedule procurement requirements.

Key Features

• 24 Switched Outlets (20 C13, 4 C19) — Each outlet can be turned on, off, or rebooted remotely, with LED status indicators for quick visual reference.
• Dual Voltage Rating — Delivers 5kW at 208V or 5.8kW at 240V, giving integrators flexibility across common data center voltages.
• Built-In LX Platform Interface — HTML5 web access plus SNMP, telnet, and SSH support enable full remote management without a site visit.
• Digital Load Metering — Real-time ammeter readings per load bank help keep consumption safely below maximum capacity.
• NEMA L6-30P Input — A 10-foot cord connects directly to L6-30 circuits, generators, or protected UPS systems.
• 0U Vertical Mounting — Toolless buttons or brackets install the PDU without consuming usable rack unit space.
• TAA Compliant — Eligible for GSA Schedule and other federal procurement requirements.

Typical Applications

• Data center
• Server room
• Network closet
• Colocation facility

Technical Specifications

Frequently Asked Questions

Can outlets on this PDU be switched individually?

Yes, all 24 outlets can be turned on, off, or rebooted independently through the built-in LX Platform network interface.

What is the power rating of this PDU?

It delivers 5kW at 208V or 5.8kW at 240V, depending on the input voltage available at your site.

What input connector does it use?

It uses a 10-foot cord with a NEMA L6-30P plug, suitable for connection to a compatible L6-30 circuit, generator, or protected UPS.

How is the PDU monitored remotely?

The built-in LX Platform provides a secure HTML5 web interface along with SNMP, telnet, and SSH access for real-time status monitoring and email notifications.

How does this PDU mount in a rack?

It mounts in 0U of space using toolless mounting buttons or included brackets, and can be installed with outlets facing the rear using the optional PDUMVROTATEBRKT kit.

Is this PDU suitable for federal or GSA procurement?

Yes, the PDUMV30HVNETLX is TAA-compliant, making it eligible for GSA Schedule purchases.

What warranty does this PDU carry?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
