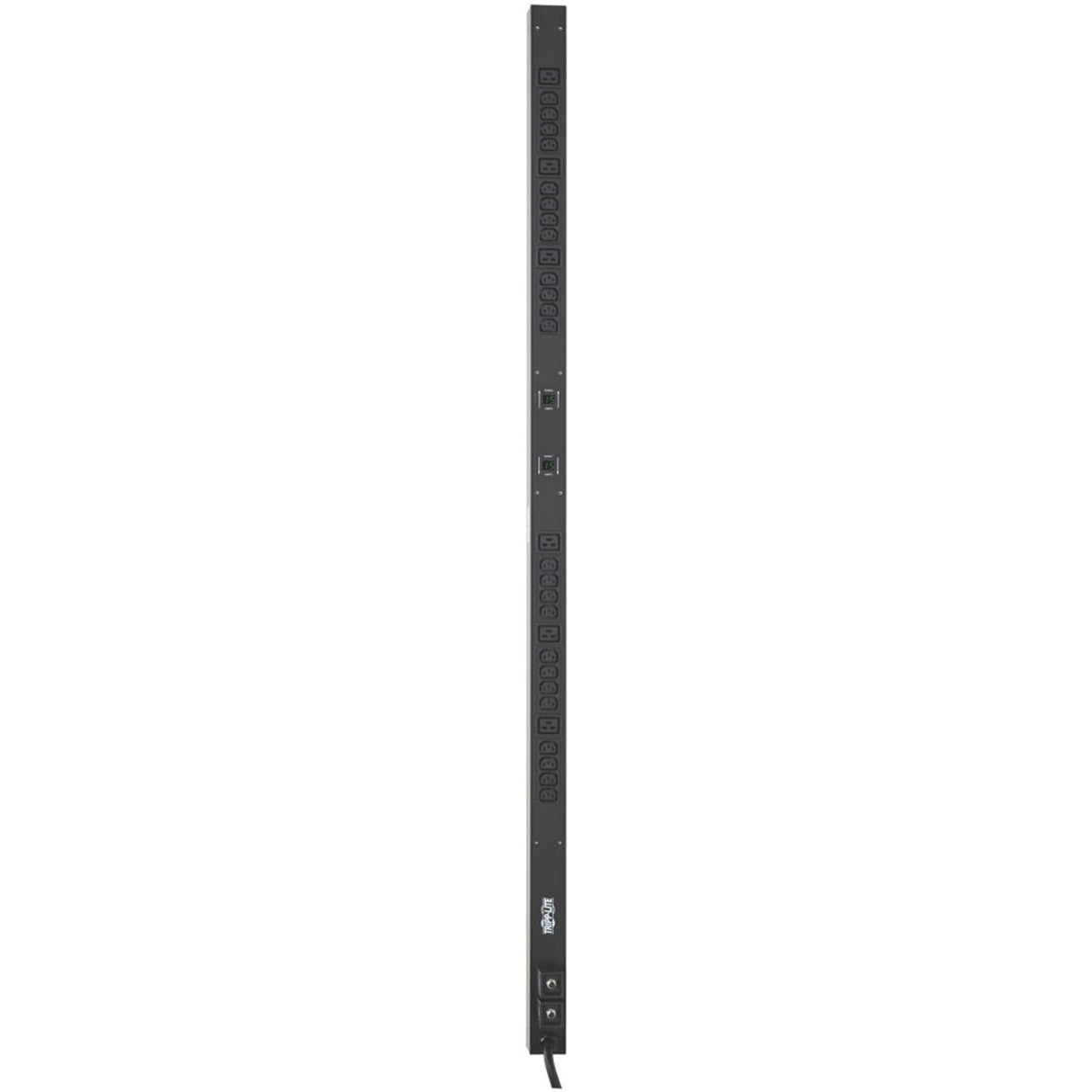

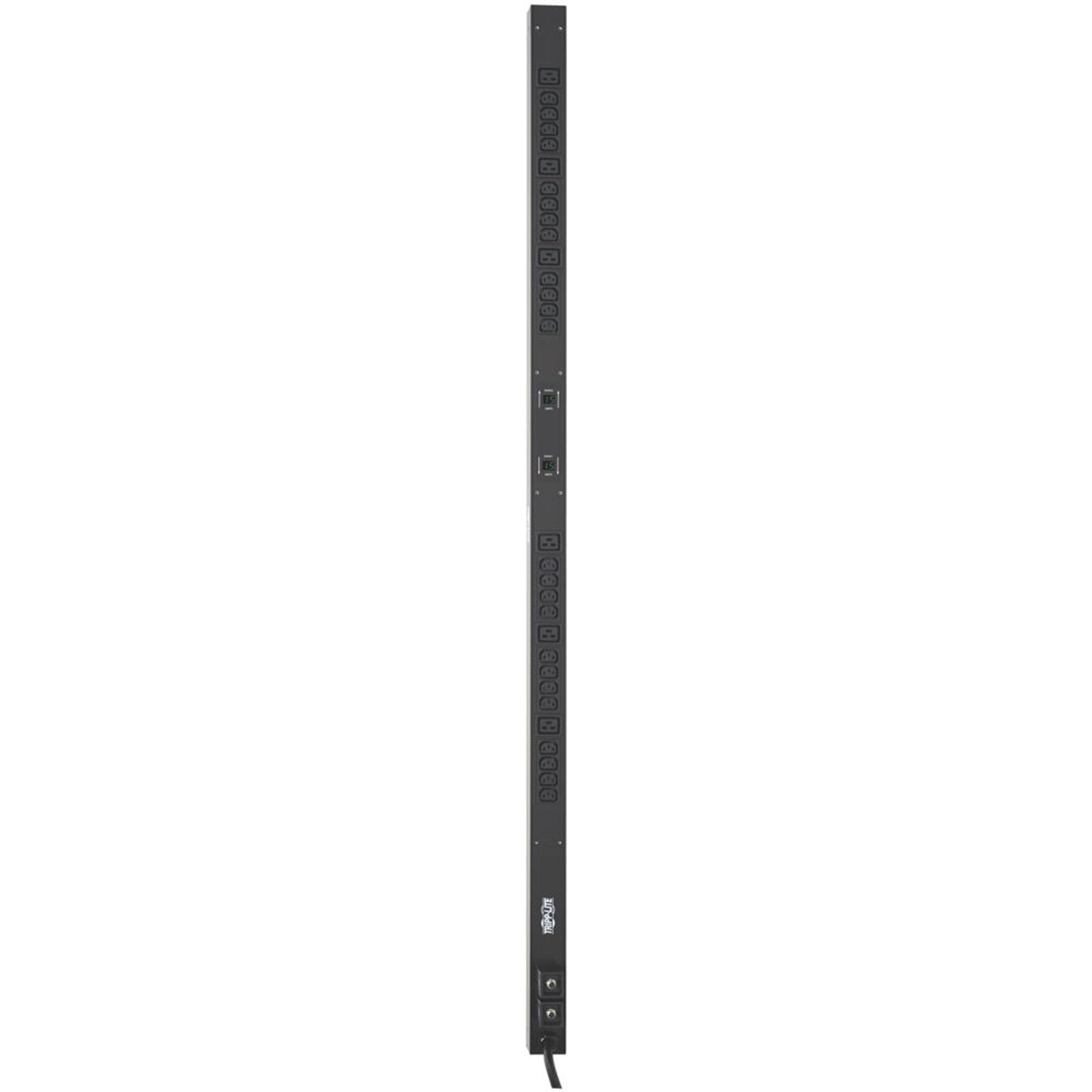

Eaton PDUMV30HV – Metered Vertical 0U PDU, 30A 208/240V

Product Overview

The Eaton PDUMV30HV is a vertical 0U metered rack PDU built for data centers and server rooms that need reliable 30A power distribution at 208/240V without consuming horizontal rack space. This metered rack PDU delivers 24 C13 and 6 C19 outlets across two independently metered and breakered load banks, making it well suited for high-density server racks with mixed IEC power cord requirements. Integrators specifying a 0U vertical PDU for 2 or 4-post rack installations will find the PDUMV30HV a straightforward fit for new builds and rack refreshes alike.

Product Description

Measuring 63.75 inches, the PDUMV30HV mounts vertically in standard 2-post and 4-post server racks, freeing up horizontal U-space for compute and networking gear. The unit ships with a 10 ft. attached line cord terminated in an L6-30P input plug, supporting a 30A maximum capacity at 208/240V. Power is split across two separately metered and breakered 15A load banks, each with 3 C19 and 12 C13 outlets, so a fault or overload on one bank does not take down the entire PDU. Two built-in two-character LED displays give facilities staff continuous, at-a-glance current monitoring in one-amp increments for each load bank, which simplifies capacity planning in shared server rooms and colocation cabinets. Tooless mounting buttons allow fast installation in button-mount compatible racks, and the included mounting brackets also support wall-mount or under-counter configurations for network closets. Plug retention brackets hold connected line cords securely in place, reducing the risk of an accidental disconnect in a densely cabled rack. With 30 available outlets, this vertical rack PDU can support a full rack of switches, servers, and other networking equipment from a single 30A circuit, making it a practical metered PDU option anywhere rack space is at a premium.

Key Features

• Dual Metered Load Banks — Two independently breakered 15A load banks each provide local current monitoring, so overloads on one bank do not affect power to the other.
• 30 Total Outlets — 24 C13 and 6 C19 receptacles accommodate a wide mix of server, switch, and storage power cords on one PDU.
• Vertical 0U Design — The 63.75 in. vertical form factor mounts in 2 or 4-post racks without consuming any horizontal U-space.
• Tooless Mounting — Button-mount compatible brackets allow fast installation and removal in compatible rack rails.
• Real-Time Current Displays — Two built-in two-character LED displays report load in one-amp increments for each load bank.
• Plug Retention Brackets — Secure cord retention keeps connected equipment powered and reduces accidental unplugging in busy racks.

Typical Applications

• Data center
• Server room
• Colocation facility
• Network closet

Technical Specifications

Frequently Asked Questions

Will the PDUMV30HV fit a standard 2-post open frame rack?

Yes. The included mounting brackets and tooless buttons are designed for standard 2-post and 4-post racks, and can also be adapted for wall or under-counter mounting.

Can I mix C13 and C19 cords on the same load bank?

Yes. Each load bank combines C19 and C13 outlets on a single 15A breaker, so you can connect a mix of server, switch, and storage power cords as long as the bank's total draw stays within its rated capacity.

Does this PDU require network connectivity to read current draw?

No. The PDUMV30HV provides local current monitoring through its two built-in LED displays, so no network connection or software installation is required to view load data.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Is this PDU suitable for a colocation cage with mixed customer equipment?

Yes. The two independently breakered load banks make it a good fit for colocation environments where isolating a fault to one bank, rather than the whole rack, is important.

What input receptacle does my facility need to support this PDU?

The PDUMV30HV terminates in an L6-30P plug, so your facility circuit or upstream distribution needs a matching L6-30R receptacle rated for 30A at 208/240V.
