Eaton PDUMV30-ISO – Metered PDU with ISOBAR Surge Protection

Product Overview

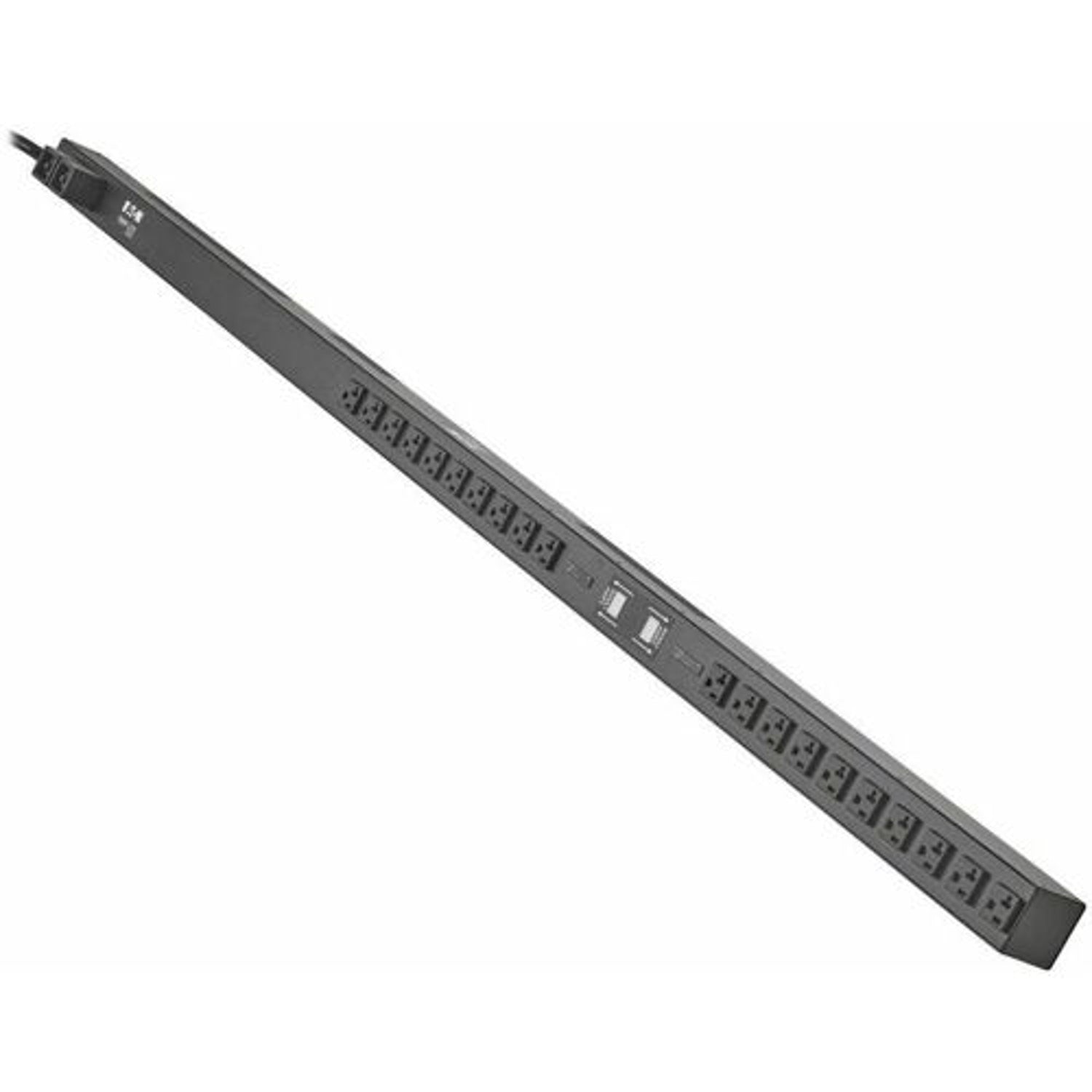

The Eaton PDUMV30-ISO is a 2.88kW single-phase local metered PDU with built-in ISOBAR surge protection rated at 3840 joules, giving integrators both power distribution and surge suppression in one 0U vertical unit. With 24 NEMA 5-15/20R outlets and a 120V rating, it is well suited for telecom, security, audio/video, and general rack-mount applications that also need protection from voltage spikes. Real-time local monitoring through a built-in digital current meter helps prevent circuit overloads as equipment is added.

Product Description

The PDUMV30-ISO is designed for network-grade IT environments that need both multi-outlet power distribution and integrated surge protection in the same rack unit. Its built-in ISOBAR surge suppression, rated at 3840 joules, helps protect connected servers, switches, and AV equipment from voltage spikes that can otherwise damage sensitive electronics. A built-in digital current meter provides real-time monitoring of load levels, giving on-site staff immediate visibility before adding equipment to an already-populated rack.

With 24 NEMA 5-15/20R outlets, the PDUMV30-ISO accommodates a large number of standard North American equipment power cords in a single 0U vertical unit, helping preserve horizontal rack space for servers and network gear. A 10-foot cord with an L5-30P input plug connects the unit to a facility's AC power source, generator, or protected UPS system. This combination of power distribution, surge protection, and local metering makes it a practical choice for telecom rooms, security operations centers, and general rack-mount deployments that want an added layer of equipment protection.

Key Features

• Built-In ISOBAR Surge Protection — Rated at 3840 joules to help protect connected equipment from voltage spikes.
• Built-In Digital Current Meter — Provides real-time load monitoring to help prevent circuit overloads.
• 24 NEMA 5-15/20R Outlets — Supports a large number of standard North American equipment plugs.
• 0U Vertical Mounting — Preserves horizontal rack unit space for servers and network equipment.
• 10-Foot Input Cord with L5-30P Plug — Connects to a facility AC source, generator, or protected UPS.
• 2.88kW Single-Phase Capacity — Sized for network-grade IT and AV rack deployments.

Typical Applications

• Data center rack power distribution with surge protection
• Server room deployments requiring equipment surge protection
• Network closet installations
• Broadcast studio and AV rack equipment protection

Technical Specifications

Frequently Asked Questions

Does this PDU protect equipment from power surges?

Yes, it includes built-in ISOBAR surge suppression rated at 3840 joules to help protect connected equipment from voltage spikes.

Does it monitor power usage locally?

Yes, a built-in digital current meter displays real-time load level so staff can check current draw before adding more equipment.

What input connection does this PDU require?

It connects via a 10-foot cord with an L5-30P plug to a 120V, 30A-capable AC source, generator, or protected UPS.

Is this suitable for AV rack installations?

Yes, it is well suited to telecom, security, audio/video, and general rack-mount applications, including AV racks that benefit from integrated surge protection.

How is this PDU mounted?

It mounts vertically in 0U of rack space, preserving horizontal rack units for other equipment.

What warranty applies to this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help size this for my rack?

Yes, our team can help confirm outlet count, surge protection needs, and mounting requirements for your specific rack layout.
