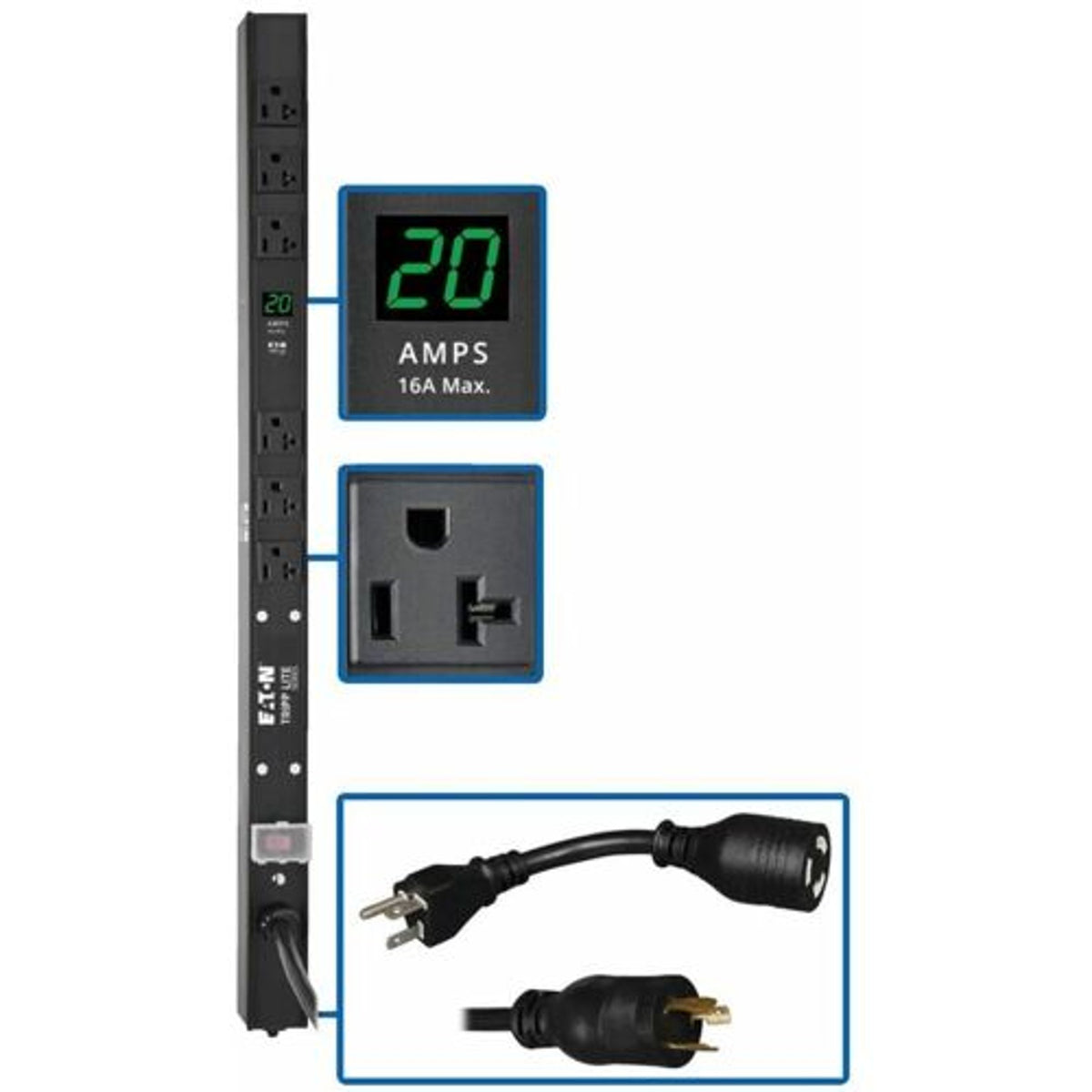

Eaton PDUMV20-24 – 2kW Metered PDU, 0U Vertical 24-in.

Product Overview

The Eaton PDUMV20-24 is a 2kW single-phase local metered PDU built for compact 0U vertical installations where rack space is limited but power visibility still matters. Delivering 100-127V through six NEMA 5-15/20R outlets, this 24-inch vertical rack PDU is a fit for small server rooms, network closets, and edge racks that need reliable, monitored power distribution from UPS, generator, or mains sources.

Product Description

The PDUMV20-24 gives IT managers real-time local reporting of load level in amps through a built-in digital display, allowing visual monitoring of PDU load as additional equipment is racked and reducing the risk of unexpected overloads. Its compact 24-inch, 0U vertical form factor is well suited to small edge racks and network closets where a full-height PDU is unnecessary or would consume too much cable management space. The unit provides six NEMA 5-15/20R outlets for connecting servers, switches, and other rack-mounted equipment, and includes an L5-20P input plug with a 5-20P adapter, giving integrators flexibility to match whatever receptacle is available at the power source. Built with a rugged all-metal housing, the PDUMV20-24 mounts securely using its included rackmount accessories, supporting reliable, unfiltered pass-through power distribution from any protected UPS, generator, or mains input source. This local metered PDU is a practical choice for facilities that need basic current visibility on a smaller rack footprint without the added complexity of network-managed monitoring.

Key Features

• Built-In Digital Load Display — Real-time local current monitoring helps prevent overloads as equipment is added.
• Compact 24-in. 0U Vertical Design — The shorter vertical form factor fits smaller racks and edge deployments.
• 6 NEMA 5-15/20R Outlets — Standard outlets accommodate common server and network equipment cords.
• L5-20P Input with 5-20P Adapter — The included adapter offers flexibility across different receptacle types at the power source.
• Rugged All-Metal Housing — Durable construction supports secure rackmount installation with included accessories.

Typical Applications

• Network closets
• Server rooms
• Small data center edge racks

Technical Specifications

Frequently Asked Questions

What size rack does the PDUMV20-24 fit?

Its compact 24-inch 0U vertical design is intended for smaller racks and edge enclosures where a full-height PDU is not practical.

What equipment can plug into this PDU?

The six NEMA 5-15/20R outlets accept standard 5-15P or 5-20P server and network equipment cords.

Does the included adapter change the input connector?

The 5-20P adapter allows the L5-20P input plug to connect to a standard 5-20R receptacle when a locking outlet is unavailable.

Is this PDU compatible with UPS and generator power?

Yes, the unit distributes unfiltered pass-through power from any protected UPS, generator, or mains input source.

How is load monitored on this PDU?

A built-in digital display provides real-time local reporting of load level in amps.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
