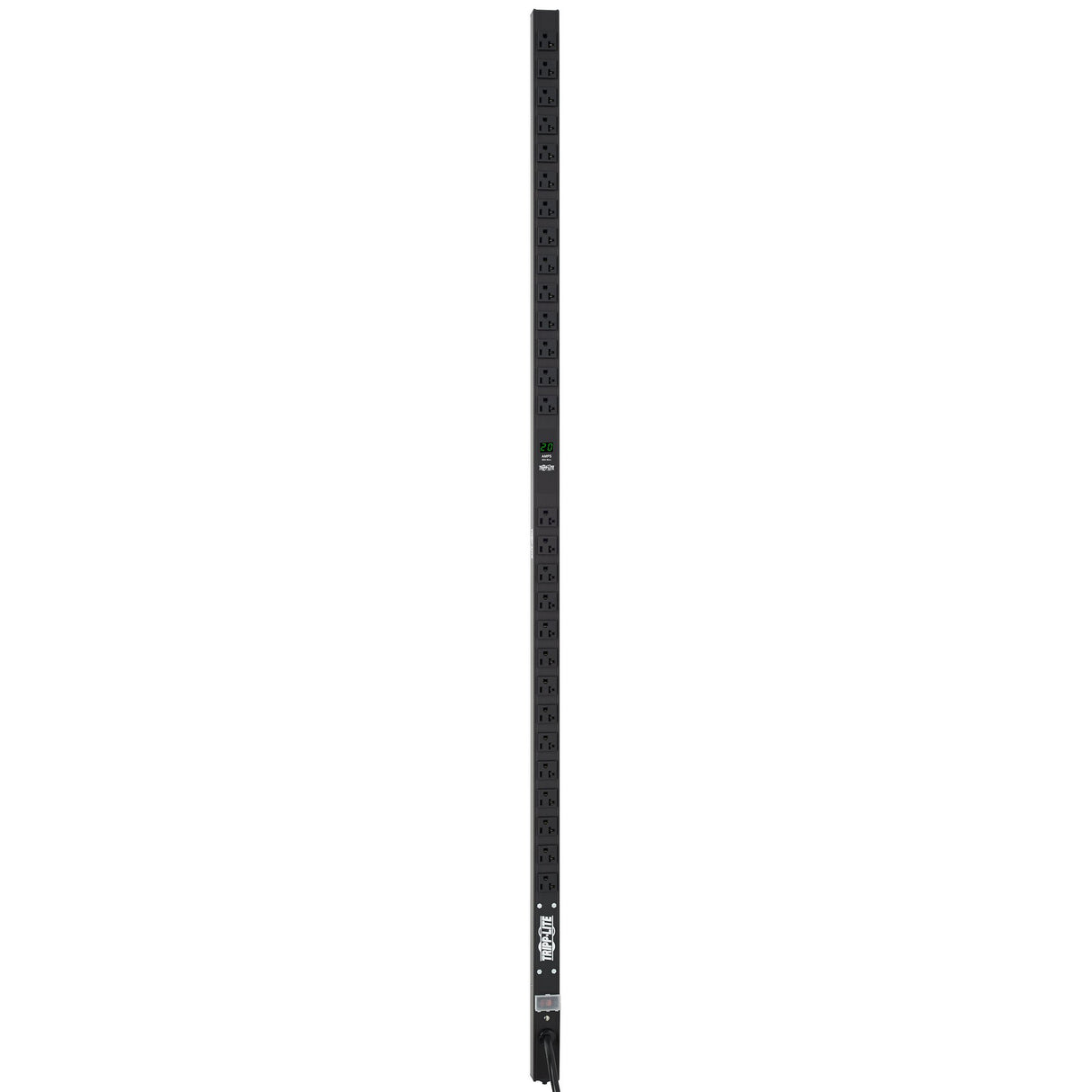

Eaton PDUMV20 – 120V 20A Metered Rack PDU, 16 Outlets
Product Overview
The Eaton PDUMV20 is a single-phase metered rack PDU rated 120V and 20A, providing 16 NEMA 5-15R/20R receptacles for reliable rackmount power distribution. A built-in digital display gives real-time local load reporting in amps, letting facilities staff visually confirm current draw as equipment is added to a rack. It draws power from any protected UPS, generator, or mains input source and is built with a rugged all-metal housing for long-term rack installation. This metered PDU suits server rooms and network closets where visual load monitoring is needed without a full network management platform.
Product Description
This single-phase metered PDU offers real-time local reporting of load level in amps via a built-in digital display, enabling visual monitoring of PDU load levels to help prevent overloads as additional equipment is added to a rack. It offers reliable rackmount multi-outlet power distribution from any protected UPS, generator, or mains input power source, with 16 NEMA 5-15R/20R receptacles that accept both standard 5-15P and 5-20P plugs, giving integrators outlet flexibility for a mix of connected equipment. The high-quality design includes a rugged all-metal housing and secure rackmount installation hardware, and a single 20-amp circuit protects the connected load. Because the metering is local rather than networked, staff can read the current draw directly from the front of the unit during routine maintenance, making it a straightforward option for facilities that want visual load confirmation without the cost of a fully networked switched PDU.
Key Features
- 16 NEMA 5-15R/20R Outlets — Dual-rated receptacles accept both 5-15P and 5-20P plugs for flexible equipment compatibility.
- Built-In Digital Ammeter — Provides real-time local load readings in amps to help prevent overload conditions.
- 20A Circuit Protection — A single 20-amp circuit protects connected equipment from overcurrent conditions.
- Rugged All-Metal Housing — Built for durable, long-term rackmount installation in commercial environments.
- Flexible Power Input — Compatible with protected UPS, generator, or standard mains input sources.
Typical Applications
- Server room
- Network closet
- Small data center
Technical Specifications
| Voltage | 120V |
| Current Rating | 20A |
| Outlets | 16 x NEMA 5-15R/20R |
| Metering | Local digital ammeter |
| Circuit | 1 x 20A |
Frequently Asked Questions
What outlets does the PDUMV20 provide?
It provides 16 NEMA 5-15R/20R receptacles, which accept both standard 5-15P and 5-20P plugs for flexible equipment compatibility.
Does this PDU require network configuration?
No, load metering is local and read directly from the built-in digital display; no network setup is required.
What power sources can feed this PDU?
It can be powered from a protected UPS, generator, or standard mains input source.
Is this PDU suitable for a network closet installation?
Yes, its rugged all-metal housing, rackmount hardware, and 20A circuit make it a good fit for server rooms and network closets.
What warranty applies to this unit?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
