Eaton PDUMNV32HV2LX – 7.7kW Metered PDU, IEC 32A Input

Product Overview

The Eaton PDUMNV32HV2LX is a high-capacity, 0U vertical metered rack PDU built for data center and colocation cabinet racks that need more headroom than a standard 24A circuit provides. Its 32A IEC 60309 input and 7.7kW output rating make it a fit for a 32A metered rack PDU installation feeding a dense server, network, or AV equipment rack from a single high-amperage single-phase circuit. Integrators specifying this SKU should confirm that the facility has 200-240V IEC 60309 32A receptacles available, since this plug type is more common in international and purpose-built data center power distribution than in typical North American commercial buildings.

Product Description

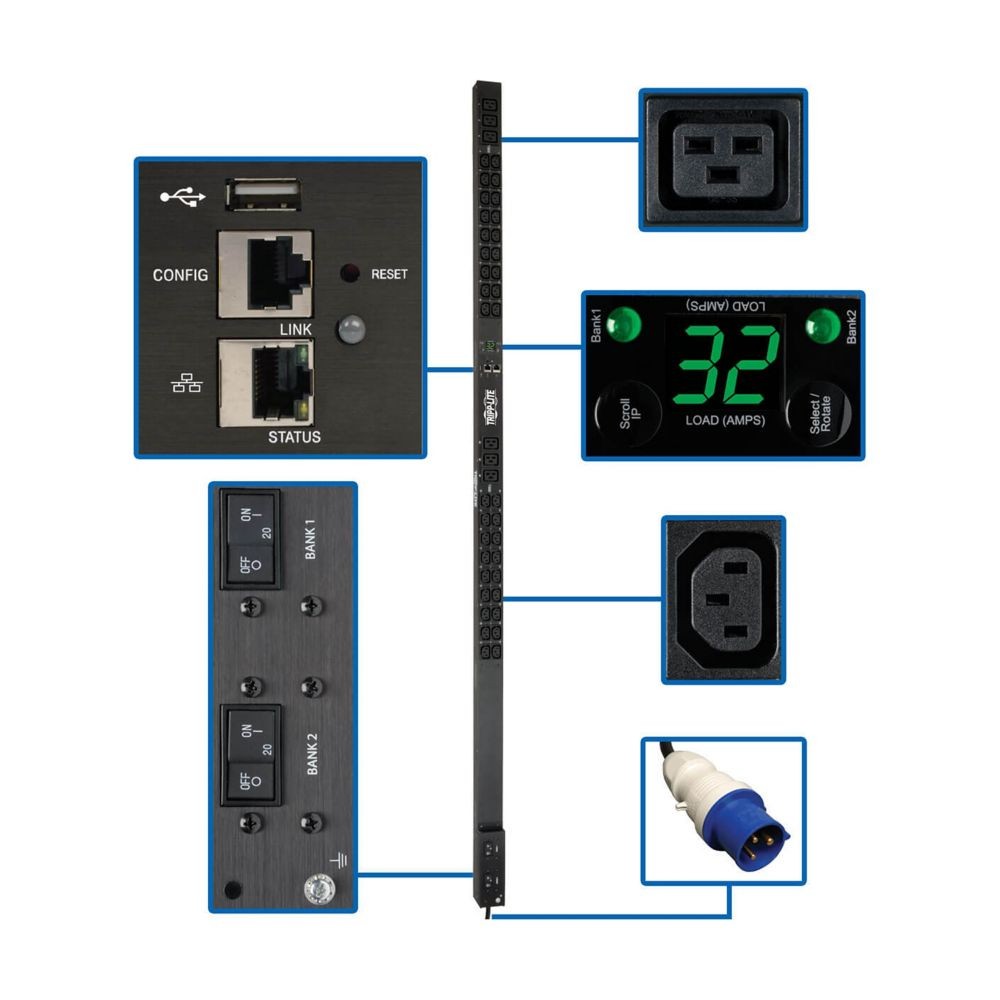

The PDUMNV32HV2LX is a single-phase, 0U vertical metered PDU designed to mount along the rear rail of a server rack or open-frame cabinet. It draws input power through a 200-240V IEC 60309 32A (2P+E) blue plug on a 10-foot cord and delivers up to 7.7kW of output across 36 C13 and 6 C19 outlets, giving it the same high outlet density as other units in the PDUMNV line but at a higher current and power rating. A built-in metered interface with digital ammeter functionality lets on-site technicians confirm load during a rack PDU installation or after adding new equipment, which is valuable in racks running at or near their rated capacity. This IEC 60309 PDU for high-density racks is commonly specified where equipment loads exceed what a 20A or 24A NEMA-plug PDU can safely support, such as blade server chassis, dense switch fabrics, or racks combining IT and AV signal processing gear. Because of its 32A/200-240V input requirement, it is best suited to data centers, colocation cabinets, and purpose-built server rooms with IEC 60309 receptacles or whips already in place, rather than standard commercial office wiring. The 0U vertical form factor keeps the PDU out of usable rack space, running along the rear rail for the full height of the enclosure, while its 42-outlet layout allows a single unit to service a fully populated rack without a second PDU or a separate branch circuit.

Key Features

• 32A IEC 60309 Input — Supports higher current draw than standard 20A/24A NEMA-plug PDUs for dense equipment racks.
• 7.7kW Output Capacity — Delivers more usable power per PDU than the 5.5kW models in the same product family.
• 42-Outlet Density — 36 C13 and 6 C19 receptacles support a fully loaded rack of servers, switches, and AV equipment from one unit.
• Digital Ammeter Metering — On-site current readout helps confirm load balance during installation, moves, adds, and changes.
• 0U Vertical Form Factor — Rear-rail mounting preserves all horizontal rack units for equipment.
• Wide Operating Temperature Range — Rated to 122°F (50°C), suiting warmer data center hot-aisle environments.
• International-Standard Plug Type — IEC 60309 input aligns with data center and colocation facilities built to international electrical standards.

Typical Applications

• data center
• colocation cabinet
• server room

Technical Specifications

Frequently Asked Questions

What kind of electrical circuit does this PDU require?

It requires a 200-240V, single-phase circuit terminated with an IEC 60309 32A (2P+E) receptacle. This differs from the NEMA L6-30 or L6-20 receptacles used by many North American commercial buildings, so confirm your facility's whip or receptacle type before ordering.

How many outlets does this PDU provide and what type?

It provides 42 total outlets: 36 IEC C13 and 6 IEC C19, matching the standard C14 and C20 power cords used on most rack-mount servers, switches, and AV equipment.

Is this PDU compatible with North American 120V equipment?

The PDU itself is a 200-240V unit; connected equipment must accept C13/C19-style power inputs rated for that voltage range, which is standard on most enterprise-class servers and network switches sold globally.

How is this PDU mounted in a rack?

It is a 0U vertical PDU that mounts along the rear rail of a standard rack or open-frame cabinet, leaving horizontal rack units available for equipment.

What monitoring capability does this PDU offer?

It includes a metered LX interface with digital ammeter functionality for on-site load verification; confirm current network monitoring feature availability with Eaton or Creation Networks if remote SNMP polling is required for your deployment.

What is the warranty on this product?

Contact Eaton or Creation Networks directly to confirm current warranty terms for this SKU.

Can Creation Networks help confirm compatibility before I order?

Yes. Our team can help verify your facility's input circuit type, available amperage, and outlet requirements before you commit to a 32A IEC-input PDU for your data center or server room rack.
