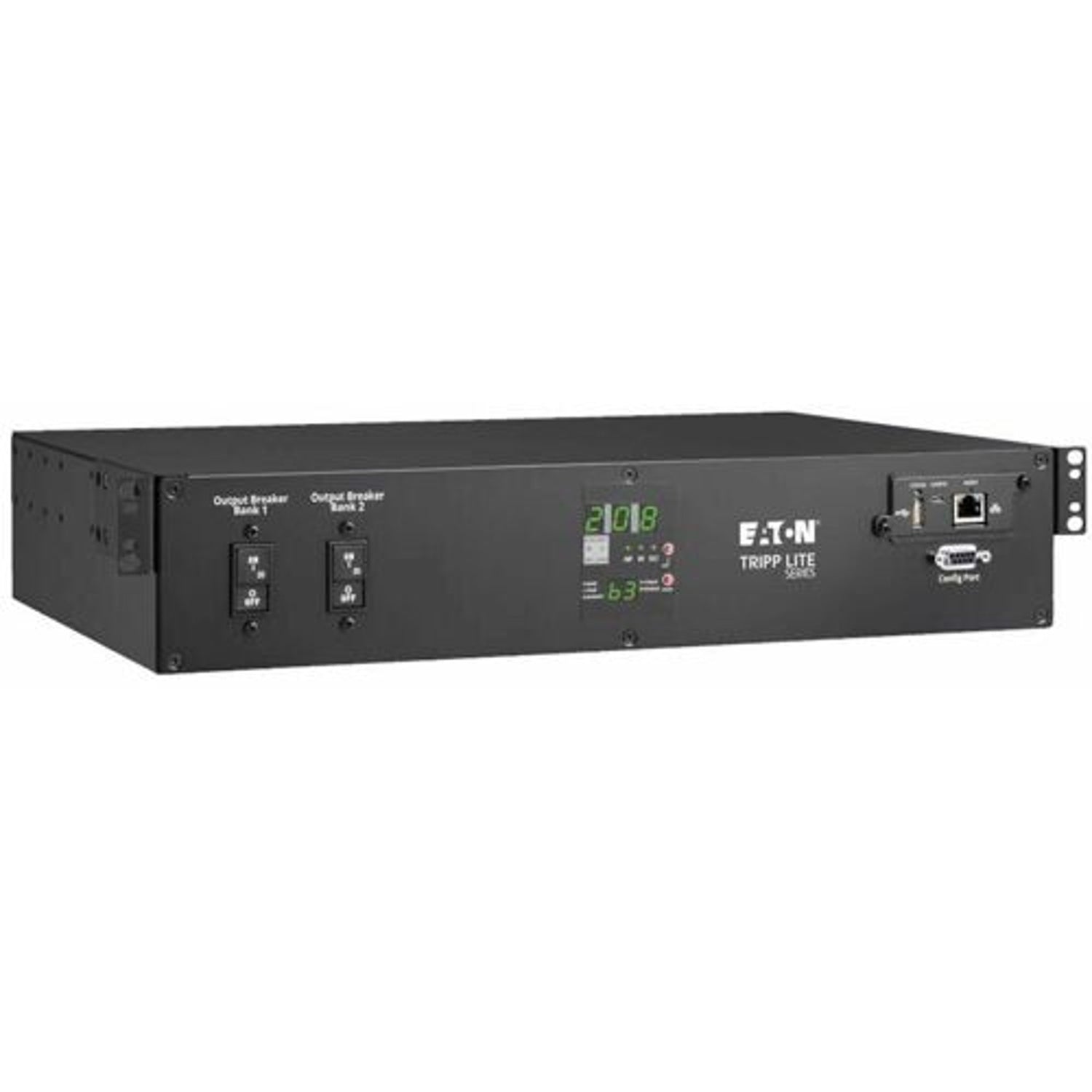

Eaton PDUMNH30HVAT2 – 5.8kW ATS Monitored PDU, 2U

Product Overview

The Eaton PDUMNH30HVAT2 is a 5.8kW 208/240V single-phase ATS/monitored PDU with 16 C13, 2 C19, and 1 L6-30R outlets, designed for network IT applications, small computer rooms, and rack installations that require both automatic transfer switching and remote power monitoring. Built into a 2U, TAA-compliant chassis with dual L6-30P inputs and 10-ft. cords, it combines real-time remote monitoring of voltage, frequency, and load with millisecond-level failover between two power sources. This ATS/monitored PDU is well suited for data center racks that need continuous uptime protection along with detailed visibility into power quality.

Product Description

Facilities running mission-critical rack equipment often need more than automatic transfer switching alone; they need remote visibility into power conditions across the rack. The PDUMNH30HVAT2 addresses both needs, providing real-time remote monitoring of voltage, frequency, and load levels through its built-in network interface, alongside dynamic solid-state ATS that switches from the primary to the secondary source within 1-5 milliseconds if the primary becomes unstable or fails. Dual 10-foot (3.1-meter) power cords with NEMA L6-30P inputs connect to separate primary and secondary mains circuits, generators, UPS systems, or utility power grids, including sources that are out of phase. The onboard ATS processor continuously evaluates power quality on both inputs and will not switch to a secondary source that is unavailable or of lower quality than the primary. Remote access is delivered through the Java-free HTML5-based WEBCARDLX network management card, which supports full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, or SSH. Eaton's PowerAlert Device Manager (PADM20) adds customizable dashboard graphs, and combined with PowerAlert Element Manager (PAEM), gives larger installations expanded maintenance functions including firmware update checks and configuration backup and restoration. The digital ammeter reports total load in both amps and kilowatts with 1% billing-grade accuracy, useful for colocation environments that need to bill tenants based on measured power draw. The all-metal housing mounts into 2U of rack space or can be secured to a wall or under a counter, and TAA compliance makes the unit eligible for GSA Schedule and other federal procurement contracts.

Key Features

• Automatic Transfer Switching (ATS) — switches from primary to secondary power source within 1-5 milliseconds to keep connected equipment running through a source failure.
• Remote Power Monitoring — the built-in network interface reports voltage, frequency, and load levels in real time via a secure web browser, SNMP, telnet, or SSH.
• WEBCARDLX Network Management Card — a Java-free, HTML5-based interface enables full remote access and email notifications for PDU status.
• 1% Billing-Grade Metering Accuracy — supports colocation environments that need precise power measurement for tenant billing.
• 16 C13, 2 C19, and 1 L6-30R Outlets — provides a versatile outlet mix for standard and higher-draw rack equipment.
• TAA-Compliant, 2U Rack-Mount — eligible for GSA Schedule and federal procurement, with wallmount and under-counter mounting options also available.

Typical Applications

• Colocation facilities requiring billing-grade power metering per tenant rack
• Government space and federal facility racks requiring TAA-compliant equipment
• Data center and server room racks needing dual-source redundancy with remote visibility
• Network closets supporting critical IT equipment with remote monitoring needs

Technical Specifications

Frequently Asked Questions

How is this PDU monitored remotely?

It uses a built-in WEBCARDLX network management card providing HTML5-based remote access via secure web browser, SNMP, telnet, or SSH for status monitoring and email notifications.

Can this PDU be used for tenant billing in a colocation facility?

Yes, its digital ammeter provides 1% billing-grade accuracy for amp and kilowatt load reporting.

How fast is the automatic transfer switch?

The dynamic solid-state ATS switches from the primary to secondary source within 1-5 milliseconds if the primary becomes unstable or fails.

Is this unit eligible for federal procurement?

Yes, the PDUMNH30HVAT2 is TAA-compliant, making it eligible for GSA Schedule and other federal procurement contracts.

What software works with this PDU for larger deployments?

PowerAlert Device Manager (PADM20) and PowerAlert Element Manager (PAEM) provide expanded dashboard, firmware update, and configuration backup capabilities for larger installations.

What is the warranty on this product?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help integrate this PDU into an existing monitoring platform?

Yes, our team can help evaluate SNMP and network interface compatibility with your existing data center monitoring tools.
