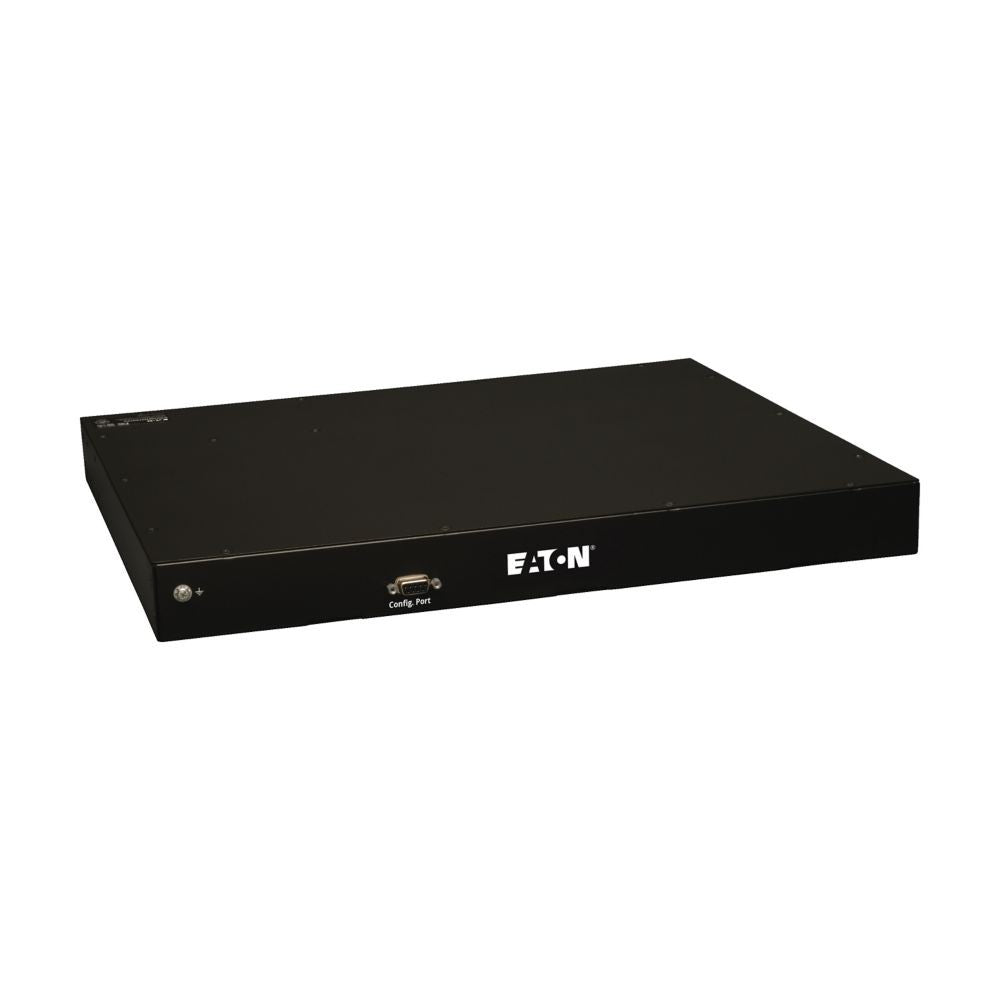

Eaton PDUMNH20HV – 1U Rack PDU, 208/230V, 8 C13

Product Overview

The Eaton PDUMNH20HV is a 1U monitored rack PDU built for 208/230V equipment racks in data centers, colocation cabinets, and server rooms that run higher-voltage IT and AV loads. As a high-voltage rack PDU, it delivers 3.7kW of output capacity through eight C13 outlets while occupying a single rack unit, making it well suited for a colocation cabinet PDU installation or a compact 208V rack PDU upgrade in an existing IT closet. Integrators specifying a monitored PDU for data center equipment racks get local load visibility without adding rack depth or height.

Product Description

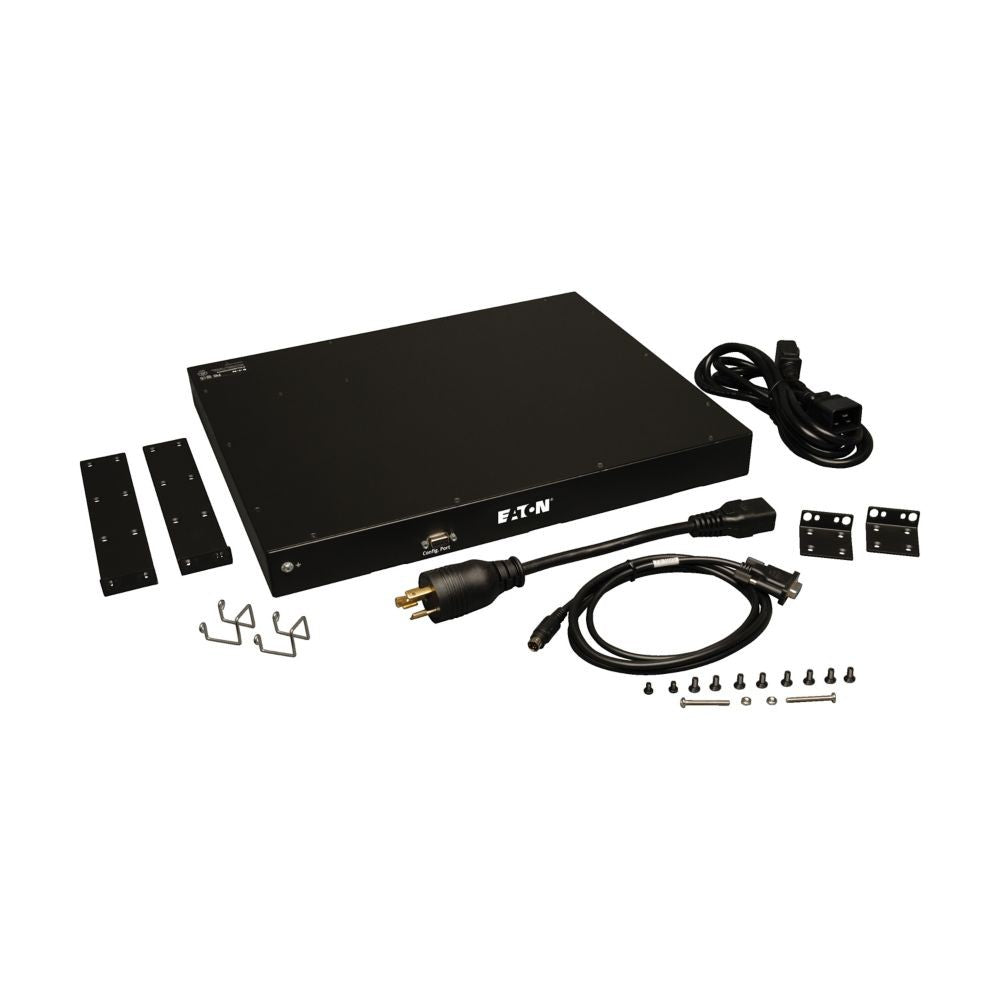

The Eaton PDUMNH20HV is a 3.7kW single-phase rack PDU engineered for 208/230V commercial and data center power environments. The unit mounts horizontally in a single rack unit (1U) and ships with an 8.5-ft input cord terminating in a C20 connector with an included NEMA L6-20P adapter, giving integrators flexibility to match existing PDU whip or receptacle configurations. On the output side, it provides eight IEC C13 receptacles, the standard connector for servers, switches, and rack-mount UPS equipment in 208/230V deployments.

A built-in digital ammeter reports real-time output current, giving facilities and IT staff a quick way to confirm load balance across a colocation cabinet or server room rack without disconnecting equipment. This makes the PDUMNH20HV a practical choice anywhere a 208V rack PDU with local monitoring is required, including government data center racks and broadcast studio equipment racks running higher-voltage gear. Its compact 1U footprint and 14.8-inch depth allow it to fit in shallower cabinets than many multi-rack-unit PDUs.

The PDUMNH20HV carries UL 60950-1 and NOM certification along with FCC Part 15 Class A and CE marking, and it is TAA compliant, supporting government and enterprise procurement standards. For integrators standardizing on 208/230V power distribution across a data center or colocation cabinet fleet, this PDU offers a consistent, monitored option that pairs well with rack-mount UPS systems and network switches in the same cabinet.

Key Features

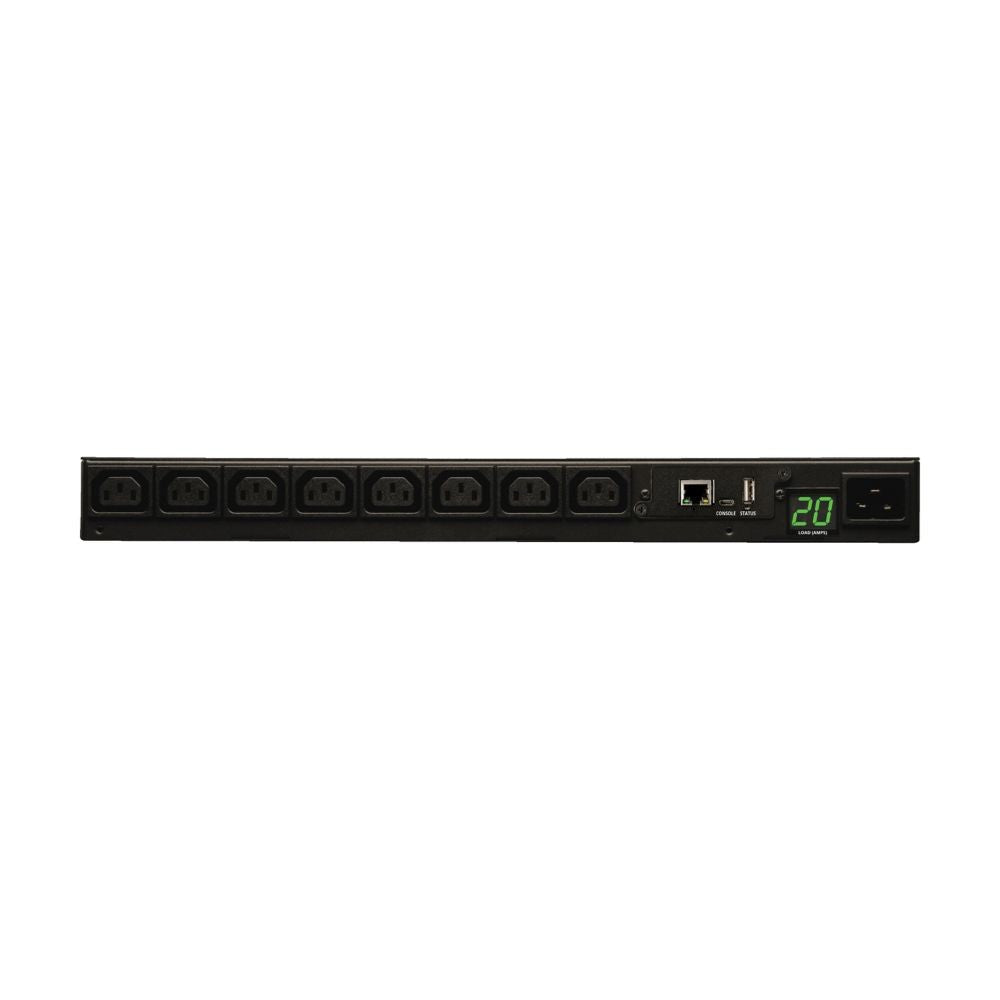

• Eight C13 Outlets — Delivers 208/230V power to eight IEC C13 receptacles, the standard connector type for servers and network switches.
• Local Digital Ammeter — Reports real-time output current so staff can verify safe circuit loading during installation or troubleshooting.
• 1U Horizontal Rack-Mount Form Factor — Occupies a single rack unit, preserving space in dense data center and colocation cabinets.
• C20 Input with L6-20P Adapter — Ships with an 8.5-ft cord and adapter for compatibility with common 208/230V receptacle types.
• 3.7kW Power Capacity — Supports higher-density IT loads than standard 120V rack PDUs at the same rack-unit footprint.
• TAA Compliant and UL Listed — Meets Trade Agreements Act and UL 60950-1 requirements for government and enterprise deployments.

Typical Applications

• Data center
• Colocation cabinet
• Server room
• Network closet
• Government space
• Broadcast studio

Technical Specifications

Frequently Asked Questions

What voltage does the PDUMNH20HV require?

The PDUMNH20HV is designed for 208/230V single-phase circuits and ships with a C20 input connector and an included NEMA L6-20P adapter.

Will this PDU work with my existing C13-terminated power cords?

Yes. The unit provides eight IEC C13 output receptacles, the standard connector used by most servers, switches, and rack-mount UPS units in 208/230V environments.

Can this PDU be mounted in a 1U space in a colocation cabinet?

Yes. The PDUMNH20HV is a 1U horizontal rack-mount PDU designed to fit standard 19-inch colocation and data center cabinets.

Does the PDUMNH20HV provide remote network monitoring?

The unit includes a local digital ammeter for on-site load monitoring. For SNMP-based remote monitoring across a data center, review Eaton Tripp Lite series PDUs with an integrated NIC.

Is the PDUMNH20HV suitable for AV equipment racks running on 208V?

Yes. Its C13 outlets and 3.7kW capacity accommodate rack-mount AV processing and broadcast equipment specified for 208/230V operation.

Is this PDU TAA compliant for government procurement?

Yes. The PDUMNH20HV is TAA compliant and UL 60950-1 listed, supporting government and public-sector data center procurement requirements.

What is the warranty on the Eaton PDUMNH20HV?

Eaton Tripp Lite series PDUs typically carry a 2-year limited warranty. Contact Eaton or Creation Networks to confirm the specific warranty terms for this SKU.

Who can help verify this PDU fits my rack power plan?

Creation Networks' AV/IT team can review your circuit, outlet, and rack depth requirements before you order to confirm compatibility.
