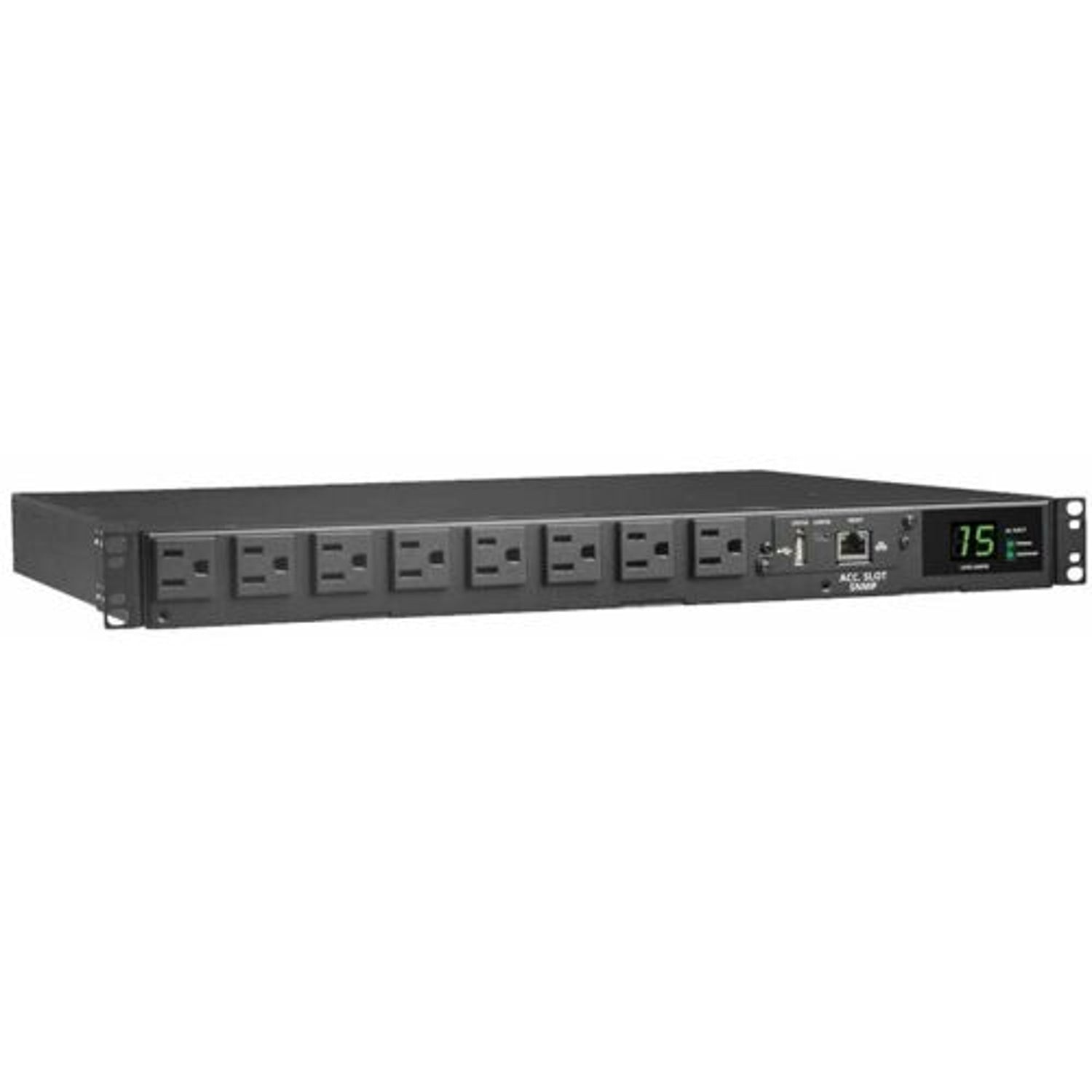

Eaton PDUMNH15AT1 – 1.44kW ATS Monitored PDU, 1U TAA

Product Overview

The Eaton PDUMNH15AT1 is a 1.44kW, 120V single-phase ATS monitored PDU that distributes and monitors network-grade power in real time for IT applications, small computer rooms, and equipment racks. This 1U rack PDU combines automatic transfer switching between dual power inputs with a built-in network interface for remote monitoring, making it a strong fit anywhere redundant power and remote visibility are both required. Its TAA compliance also makes it an eligible option for GSA Schedule and federal procurement.

Product Description

The PDUMNH15AT1 features eight NEMA 5-15R 120V outlets that distribute AC power to rack equipment, fed by dual 12-foot (3.7-meter) power cords with NEMA 5-15P inputs. These dual cords connect to separate primary and secondary power sources — mains circuits, backup generators, UPS systems, or utility power grids, including out-of-phase sources — giving the PDU flexibility across a range of facility power configurations. Automatic transfer switching (ATS) allows the unit to switch from the primary to the secondary source within 2 to 7 milliseconds if the primary becomes unstable or fails, and an on-board ATS processor continuously evaluates power quality on both inputs to prevent switching to a secondary source that is unavailable or of lower quality. A built-in LX Platform network management card enables full remote access 24/7: the Java-free, HTML5-based WEBCARDLX interface supports PDU status monitoring and email notifications via secure web browser, SNMP, telnet, or SSH. Pairing with the latest PowerAlert Device Manager (PADM20) adds customizable dashboard graphs, and combining PADM20 with Tripp Lite's PowerAlert Element Manager (PAEM) extends maintenance capabilities for large installations, including firmware update checks and configuration backup and restoration. A digital ammeter reports total connected load in real time, helping keep usage well below maximum capacity as new equipment is added and supporting lower total cost of ownership over time. The all-metal housing mounts in 1U of space in an EIA-standard 19-inch rack, or can be secured to a wall or under a counter with the included mounting hardware. As a TAA-compliant product, the PDUMNH15AT1 is eligible for GSA Schedule and other federal procurement contracts.

Key Features

• Automatic Transfer Switching — Switches from primary to secondary power source within 2-7 milliseconds if the primary becomes unstable or fails.
• Dual 12-Foot Input Cords — NEMA 5-15P cords connect to separate primary and secondary power sources, including out-of-phase feeds.
• Built-In LX Platform Network Card — The Java-free, HTML5-based WEBCARDLX interface enables remote monitoring and notifications via web, SNMP, telnet, or SSH.
• Real-Time Digital Ammeter — Reports total connected load to help prevent overloads and support lower total cost of ownership.
• 1U or Wall Mount — Installs in 1U of an EIA-standard 19-inch rack, or mounts to a wall or under a counter.
• TAA Compliant — Eligible for GSA Schedule and other federal procurement contracts requiring Trade Agreements Act compliance.

Typical Applications

• Data center
• Server room
• Network closet
• Government space

Technical Specifications

Frequently Asked Questions

What happens if the primary power source fails on this PDU?

The on-board ATS processor detects the instability and switches connected equipment to the secondary power source within 2-7 milliseconds, helping maintain continuous operation.

Can I monitor this PDU remotely without installing extra software?

Yes. The built-in LX Platform network card provides a Java-free, HTML5-based web interface, along with SNMP, telnet, and SSH access, for remote monitoring and email notifications.

Do the dual power cords need to come from the same phase or source type?

No. The ATS supports out-of-phase sources, so the primary and secondary inputs can be mains circuits, backup generators, UPS systems, or utility feeds in different configurations.

Is this PDU eligible for federal government purchases?

Yes. The PDUMNH15AT1 is TAA compliant, making it eligible for GSA Schedule and other federal procurement contracts.

Can this unit be mounted somewhere other than a standard rack?

Yes. In addition to 1U rack mounting, the included hardware supports wall mounting or installation under a counter.

What warranty does Eaton provide on this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
