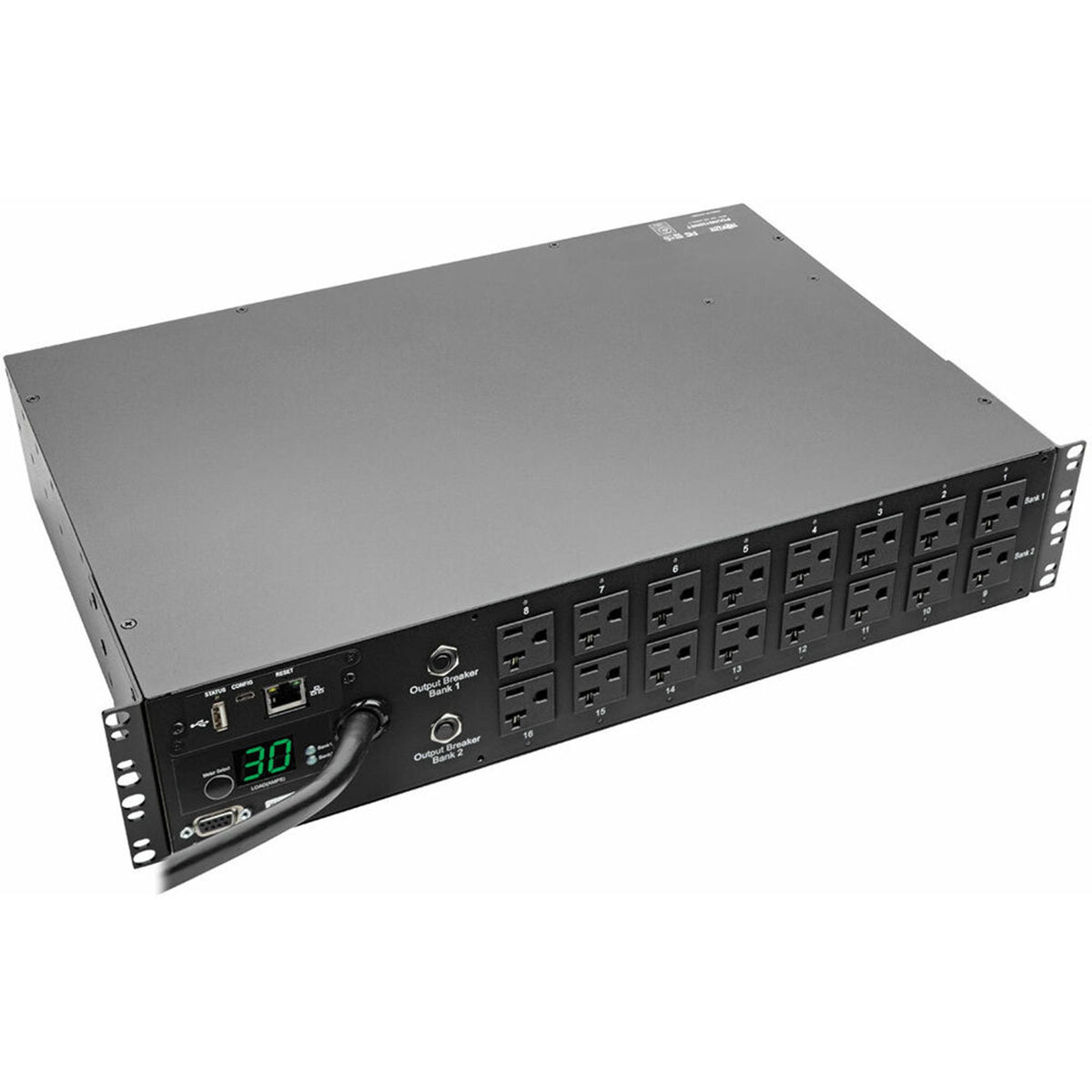

Eaton PDUMH30NET – Switched 120V 30A 16-Outlet PDU, 2U

Product Overview

The Eaton PDUMH30NET is a switched rack PDU delivering 2.9kW of single-phase power with remote, per-outlet control for data center and server room deployments. Designed for integrators who need granular power management, it lets administrators turn on, turn off, or reboot power to individual outlets without a site visit. With 16 individually controllable NEMA 5-15/20R outlets and a network-managed interface, this switched PDU is built for facilities that need remote power monitoring across a growing IT footprint. The horizontal 2U form factor mounts cleanly into a standard 19-inch rack.

Product Description

The PDUMH30NET switched PDU gives IT and facilities teams full remote control over rack-level power without requiring hands-on access to the equipment. Each of the 16 NEMA 5-15/20R outlets can be switched independently, allowing a technician to reboot a hung server or lock out an unused outlet from anywhere on the network. The included cord retention brackets keep connected power cords seated in place, reducing the risk of an accidental disconnect during routine rack work. A 10-foot power cord terminating in a NEMA L5-30P plug connects the unit to a compatible AC source, generator, or protected UPS.

Network management runs through a built-in, Java-free HTML5-based LX Platform interface, giving administrators secure web browser access alongside SNMP, telnet, and SSH support for status monitoring and email notifications. The PDU auto-senses 10/100 Mbps Ethernet connections for straightforward integration into an existing management network, and it supports a broad set of protocols including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1-v3, FTP, DHCP, BOOTP, and NTP. A built-in digital ammeter reports real-time current draw per load bank and total connected load, helping data center staff keep utilization safely below maximum capacity. Optional EnviroSense2 modules add environmental monitoring capability for facilities that also want temperature and humidity visibility at the rack. The PDUMH30NET mounts in 2U of rack space using the included hardware, or under a counter with user-supplied screws.

Key Features

• Individually Switched Outlets — Remotely turn on, turn off, reboot, or lock out power to any of the 16 outlets without a site visit.
• HTML5-Based LX Platform Interface — Provides Java-free remote access via web browser, SNMP, telnet, or SSH.
• 16 NEMA 5-15/20R Outlets — Supports a wide range of standard North American equipment power plugs.
• Digital Ammeter — Displays real-time current draw per load bank to help prevent circuit overloads.
• Cord Retention Brackets — Secure connected power cords to reduce accidental disconnections.
• 10/100 Mbps Network Port — Auto-sensing Ethernet connectivity for integration into existing management networks.
• Optional EnviroSense2 Support — Adds environmental monitoring capability with a separately sold module.
• 2U Horizontal Rack Mount — Installs in a standard 19-inch rack using included hardware.

Typical Applications

• Data center rack power management
• Server room remote power control
• Colocation facility equipment deployments
• Network closet installations requiring remote reboot capability

Technical Specifications

Frequently Asked Questions

Can I control individual outlets remotely?

Yes, each of the 16 outlets can be switched on, off, rebooted, or locked out independently through the built-in network interface.

What network protocols does the PDUMH30NET support?

It supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP, and NTP for monitoring and management.

Does it require special software to manage?

No, management is handled through a built-in, Java-free HTML5 web interface (LX Platform), so no separate software installation is required.

Can I add environmental monitoring later?

Yes, optional EnviroSense2 modules are available separately and integrate with the PDU's management interface for temperature and humidity monitoring.

How is the PDU mounted in a rack?

It mounts horizontally in 2U of space in an EIA-standard 19-inch rack using the included hardware, or it can be mounted under a counter with user-supplied screws.

What input power source does it require?

It connects via a 10-foot cord with a NEMA L5-30P plug to a 120V, 30A circuit, generator, or compatible protected UPS.

What warranty applies to this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help with integration planning?

Yes, our team can help confirm rack space, circuit capacity, and network integration requirements before you order.
