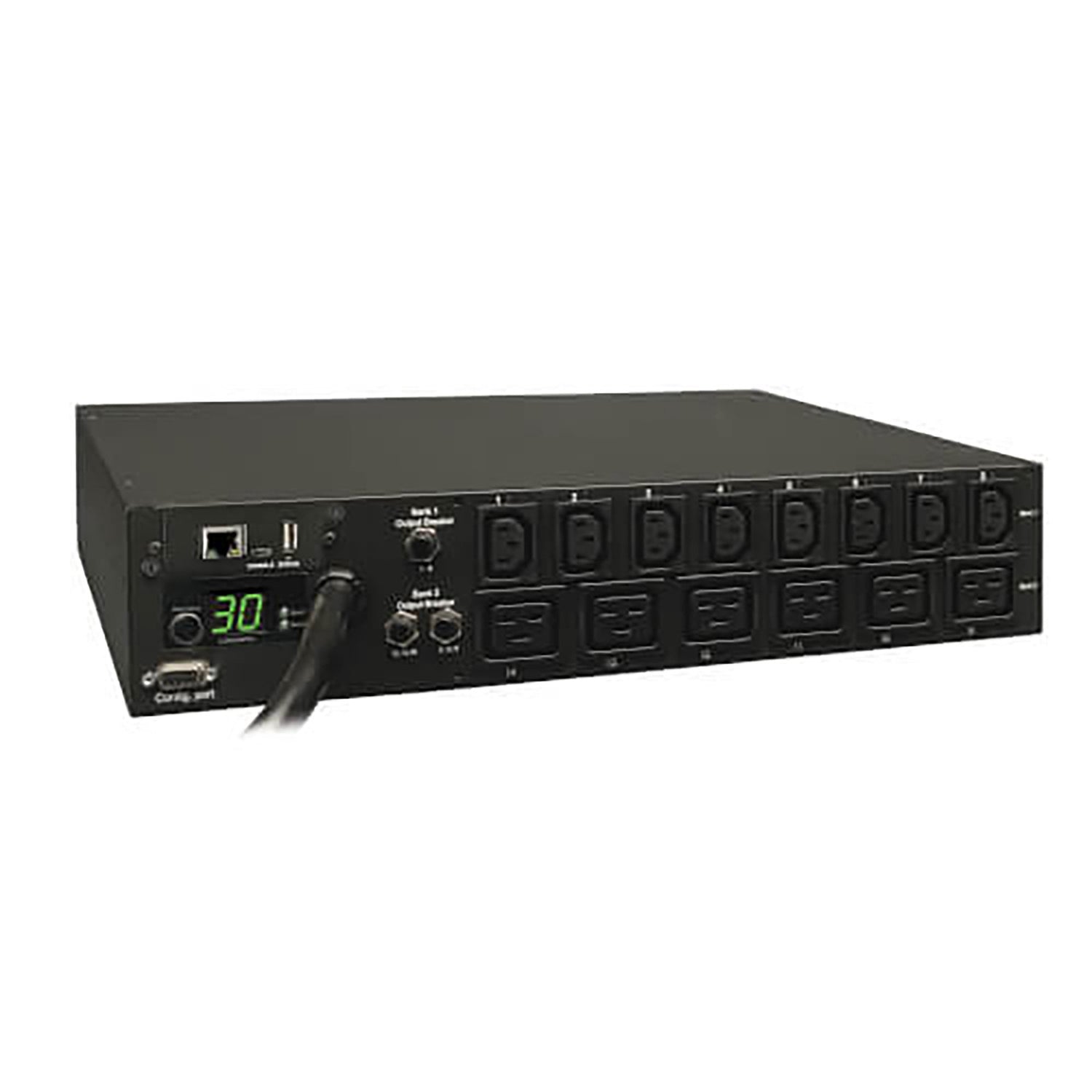

Eaton PDUMH30HV19NET – 5.5kW Switched PDU, LX

Product Overview

The Eaton PDUMH30HV19NET is a 5.5kW single-phase switched PDU built for 208/230V data center and server room racks that need remote outlet-level control. This 2U rack-mount switched PDU uses the LX network interface to give IT and facilities teams the ability to power cycle individual outlets from anywhere on the network. With 8 C13 and 6 C19 outlets and an L6-30P input, it is designed for higher-density racks running mixed IT and server equipment.

Product Description

Facilities managing dense rack deployments need more than passive power distribution — they need the ability to reboot a hung server or isolate a faulty device without a trip to the data center floor. The PDUMH30HV19NET switched PDU addresses this with individually controllable outlets, letting administrators turn outlets on, off, or cycle power remotely through the LX network management interface. The unit is rated 5.5kW at 208/230V and provides 8 C13 and 6 C19 outlets, giving integrators enough outlet diversity to power both standard IT equipment and higher-draw devices like blade servers or larger switches from a single PDU. The L6-30P input plug connects to a 30A twist-lock circuit, and the 15 ft. (4.57 m) cord gives installers flexibility in routing power from the rack's PDU whip or overhead busway back to the source receptacle. Housed in a 2U rack-mount chassis, the PDUMH30HV19NET fits into standard EIA 19-inch racks alongside servers, switches, and other 19-inch rack-mount equipment. TAA compliance makes this switched PDU eligible for federal and GSA Schedule procurement, which matters for integrators serving government or public-sector data centers. This unit is well suited for enterprise data centers, colocation facilities, and larger server rooms where remote outlet control and higher-density power distribution are priorities.

Key Features

• Individually Switched Outlets — Lets administrators remotely turn on, off, or reboot power to specific outlets without visiting the rack.
• LX Network Interface — Provides network-based access for remote PDU monitoring and outlet control.
• 8 C13 and 6 C19 Outlets — Supports a mix of standard IT equipment and higher-draw devices from one PDU.
• 5.5kW Capacity at 208/230V — Delivers enough power headroom for dense, mixed-load server racks.
• L6-30P Input with 15 ft. Cord — Connects to a 30A twist-lock circuit with enough length to reach overhead or side-mounted power sources.
• 2U Rack-Mount Form Factor — Installs into standard EIA 19-inch racks alongside other rack-mount equipment.
• TAA Compliant — Eligible for federal and GSA Schedule procurement.

Typical Applications

• Enterprise data center racks requiring remote outlet control
• Colocation facility cabinets with mixed C13/C19 equipment loads
• Government data centers requiring TAA-compliant power distribution
• Server rooms with higher-density rack power requirements

Technical Specifications

Frequently Asked Questions

Can I control individual outlets on this PDU remotely?

Yes, the PDUMH30HV19NET is a switched PDU with individually controllable outlets accessible through the built-in LX network interface.

What kind of circuit does this PDU require?

It requires a 208/230V circuit terminating in a receptacle compatible with the L6-30P input plug, typically a 30A twist-lock circuit.

How does this PDU mount in a rack?

It installs in 2U of space in a standard EIA 19-inch rack using standard rack-mount hardware.

Is this PDU suitable for government procurement?

Yes, the PDUMH30HV19NET is TAA compliant, making it eligible for GSA Schedule and other federal procurement contracts.

Can this PDU integrate with existing network management tools?

The LX interface supports standard remote monitoring and control functionality for integration into a facility's existing network management workflow; consult your network team for specific integration requirements.

What outlet types does this PDU provide?

It provides 8 C13 outlets and 6 C19 outlets, allowing a mix of standard and higher-draw rack equipment to connect to a single PDU.

What is the warranty on this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
