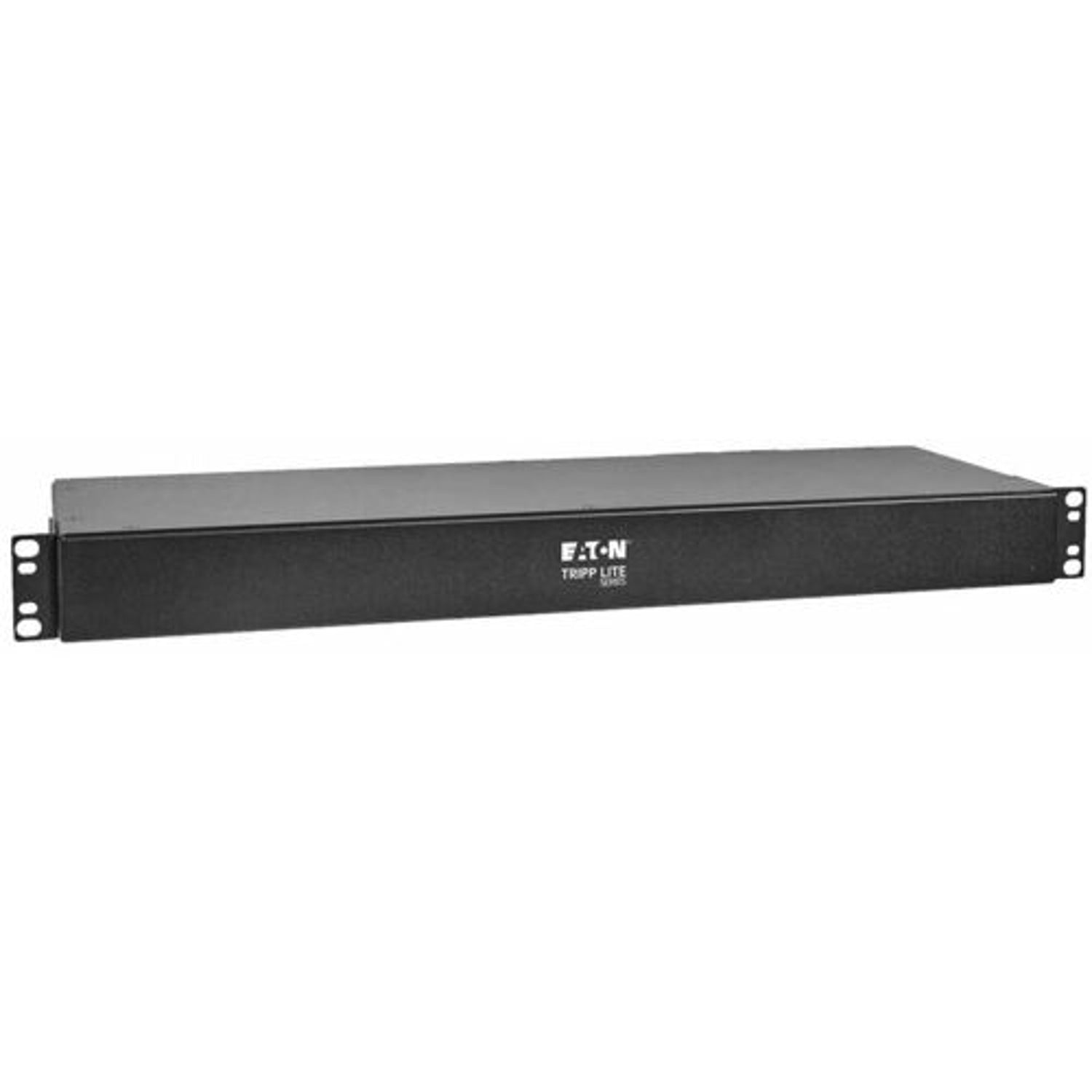

Eaton PDUMH20HVL66 – 3.7kW Metered PDU, 1U, TAA

Product Overview

The Eaton PDUMH20HVL66 is a 3.7kW single-phase local metered PDU built for network IT applications, small computer rooms, and equipment rack installations that need real-time load reporting in a compact 1U footprint. With 8 C13 and 2 C19 outlets on a 208/230V circuit, it distributes and monitors network-grade power for standard rack equipment. This TAA-compliant PDU is also eligible for GSA Schedule and federal procurement.

Product Description

This single-phase PDU distributes and monitors network-grade power in real time through its built-in digital current metering, reporting the total load level for the rack. Ideal for network IT applications, small computer rooms, and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment, and includes plug-lock insert sleeves to prevent connected cables from becoming accidentally dislodged. The digital ammeter reports total load for all connected equipment, helping ensure load levels remain well below maximum capacity and avoiding downtime or damaged equipment from overload conditions, which supports lower total cost of ownership over the life of the installation. The reversible all-metal housing comes with mounting brackets for installation in 1U of rack space, or for 0U vertical mounting in an EIA-standard 19-inch rack, and the brackets can be reoriented for permanent mounting under a counter or on a wall. The six-foot cord with a NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator, or mains input source for reliable multi-outlet power distribution. TAA compliance with the Federal Trade Agreements Act makes the PDUMH20HVL66 eligible for GSA Schedule and other federal procurement contracts, an important detail for integrators serving government facilities.

Key Features

• Real-Time Digital Metering — Built-in ammeter reports total load level for connected equipment in real time.
• 10 Total Outlets — 8 C13 and 2 C19 outlets at 208/230V support a mix of standard IT equipment.
• Plug-Lock Insert Sleeves — Prevent connected cables from being accidentally dislodged during rack work.
• Reversible 1U or 0U Mounting — Installs in 1U of rack space or vertically in 0U, plus wall or under-counter mounting.
• NEMA L6-20P Input — 6-foot cord connects to a protected UPS, generator, or mains input source.
• TAA Compliant — Eligible for GSA Schedule and other federal procurement contracts.

Typical Applications

• Network IT equipment racks
• Small computer rooms
• Government and federal facility racks

Technical Specifications

Frequently Asked Questions

Can this PDU be mounted vertically instead of in 1U?

Yes, the reversible all-metal housing supports either 1U horizontal rack mounting or 0U vertical mounting in a standard 19-inch rack.

Is this PDU eligible for federal procurement?

Yes, it is TAA-compliant under the Federal Trade Agreements Act, making it eligible for GSA Schedule and other federal contracts.

How does the digital metering help prevent downtime?

The built-in ammeter reports total connected load in real time, helping staff keep consumption below maximum capacity and avoid overload-related downtime.

What input plug does this PDU use?

It uses a NEMA L6-20P input plug on a 6-foot cord.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help confirm TAA compliance for a government project?

Yes, our team can help confirm compliance documentation for GSA Schedule or other federal procurement needs.
