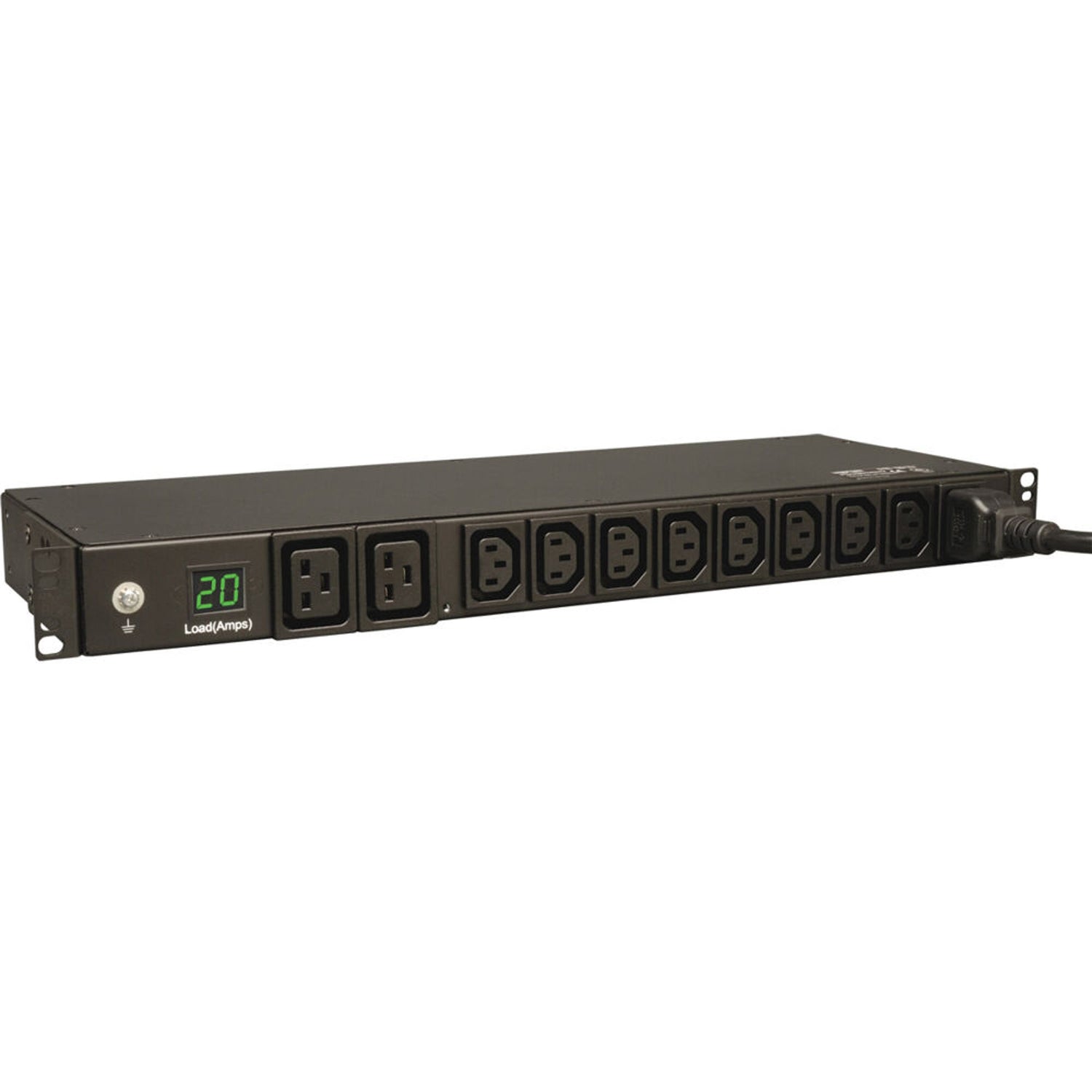

Eaton PDUMH20HV – Metered 1U PDU, 20A 208/240V

Product Overview

The Eaton PDUMH20HV is a 1U horizontal metered rack PDU designed for data centers and server rooms running 20A branch circuits at 208/240V or 230V. This rack-mount PDU pairs a visual current meter with a flexible C20 inlet and detachable input cable, giving integrators a metered power distribution option that adapts to different regional plug standards. It's a practical choice anywhere a single 1U rack PDU needs to serve a mixed set of C13 and C19-equipped equipment.

Product Description

Rated for 20A maximum capacity at 208/240V and 230V (agency de-rated to 16A where required), the PDUMH20HV installs in 1U of space in standard 19-inch 2 or 4-post server racks. The PDU accepts a C20 inlet, and ships with a detachable input cable offering both C20 and L6-20P plug options, so it can be matched to whatever upstream receptacle or UPS output is already in place. Ten total output receptacles — 8 C13 and 2 C19 — support a mix of server, switch, and network appliance power cords from a single 1U rack PDU. A visual current meter tracks the combined output current of all connected outlets, giving rack owners a quick way to confirm load stays within the unit's rated capacity as new equipment is added. An included cord retention bracket keeps connected line cords seated, which matters in dense server racks where accidental cord pulls are a real risk. This combination of metering, flexible input options, and standard 1U rack mounting makes the PDUMH20HV a solid fit for network closets, small computer rooms, and colocation cabinets that need dependable 208/240V power distribution.

Key Features

• Visual Current Metering — A built-in current meter displays total output load across all outlets so staff can confirm the PDU is running within its rated capacity.
• Flexible Input Options — The detachable input cable offers both C20 and L6-20P plug configurations to match available facility receptacles.
• 10 Total Outlets — 8 C13 and 2 C19 receptacles support a mix of server, switch, and storage equipment power cords.
• 1U Rack Mount — The compact 1U form factor installs in standard 19-inch 2 or 4-post racks without sacrificing extra rack space.
• Cord Retention Bracket — An included retention bracket keeps connected power cords seated to help prevent accidental disconnects.
• 208/240V and 230V Rated — 20A capacity at 208/240V (agency de-rated to 16A) supports common commercial and international voltage standards.

Typical Applications

• Data center
• Server room
• Network closet
• Colocation facility

Technical Specifications

Frequently Asked Questions

Does the PDUMH20HV come with a fixed input cord?

No. It ships with a detachable input cable that supports both C20 and L6-20P plug options, so you can select the configuration that matches your facility receptacle.

How is load monitored on this unit?

A built-in visual current meter reports the total combined output current across all 10 outlets, giving you a real-time check against the unit's rated capacity.

Can this PDU mount in a 4-post rack alongside networking equipment?

Yes. The 1U horizontal form factor is designed for standard 19-inch 2 or 4-post server racks and installs alongside switches, servers, and other rack-mount gear.

What warranty does Eaton provide?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Is this PDU compatible with international 230V circuits?

Yes. The PDUMH20HV is rated for 208/240V and 230V operation, with output de-rated to 16A where local agency requirements apply.
