Eaton PDUMH15HVNET – Switched Horizontal PDU, 8 Outlets

Product Overview

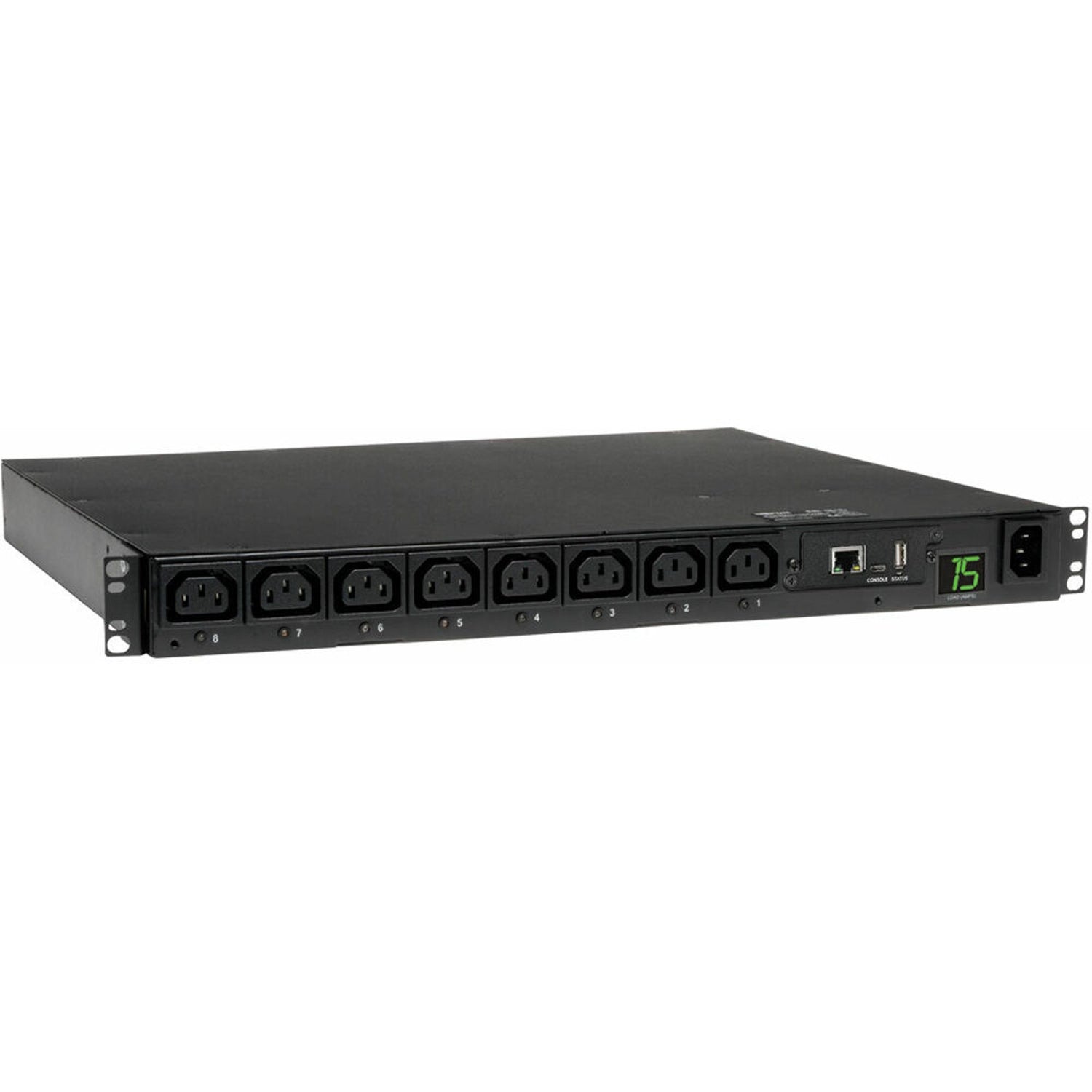

The Eaton PDUMH15HVNET is a 1U horizontal switched PDU rated 200-240V and 15A, providing 8 individually controllable C13 outlets from a C14 input. It gives data center and server room operators advanced network control and monitoring, including the ability to turn on, turn off, recycle, or lock out power to each receptacle, along with remote monitoring of site electrical conditions and output power consumption. Custom power-up and power-down sequencing helps prevent inrush-related overloads during equipment startup. This switched PDU is a strong fit for racks that need individually managed outlets in a compact 1U horizontal footprint.

Product Description

This switched PDU offers advanced network control and monitoring with the ability to turn on, turn off, recycle, or lock out power to each individual receptacle, monitor site electrical conditions, and remotely monitor output power consumption. It supports remote control and custom notification of user-specified conditions, and individually switched outlets can be controlled in real time to remotely reboot unresponsive network hardware. The unit can also be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware, an important security consideration in shared or colocation environments. PDU output current consumption in amps is displayed locally via a visual meter and remotely via the web/network interface, giving staff advance warning of potential overloads before critical IT mains or branch breakers trip. The 1U horizontal form factor and C13 outlet configuration from a C14 input make it a compact option for racks where individually managed outlet control is needed without dedicating a full vertical PDU channel.

Key Features

• 8 Individually Switched C13 Outlets — Each outlet can be turned on, off, recycled, or locked out remotely for granular control over connected equipment.
• Remote Reboot Capability — Unresponsive network hardware can be power-cycled remotely, reducing the need for on-site troubleshooting.
• Custom Power-Up/Power-Down Sequencing — Programmable startup order helps prevent inrush-related overloads when interdependent systems are energized together.
• Outlet Lockout Security — Unused outlets can be electronically locked off to prevent unauthorized equipment from being connected.
• Local and Remote Current Display — A visual meter and web/network interface both report output consumption to help avoid overload conditions.
• Compact 1U Horizontal Design — Fits standard rack unit space where individually managed outlet control is needed.

Typical Applications

• Data center
• Server room
• Network closet
• Colocation facility

Technical Specifications

Frequently Asked Questions

Can I remotely reboot a single connected device?

Yes, each of the 8 C13 outlets can be switched or recycled individually and in real time to reboot unresponsive equipment without a site visit.

Can unused outlets be secured?

Yes, unused outlets can be electronically locked off to prevent unauthorized hardware from being connected to the PDU.

Does this PDU support custom startup sequencing?

Yes, it can be programmed for user-defined power-up and power-down sequences to prevent inrush-related overloads when interdependent systems start up together.

How is power consumption monitored?

Output current in amps is shown locally on a visual meter and remotely through the PDU's web/network interface.

What input connector does this PDU require?

It uses a C14 input connector; confirm your upstream power source or PDU feed provides a compatible outlet type.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
