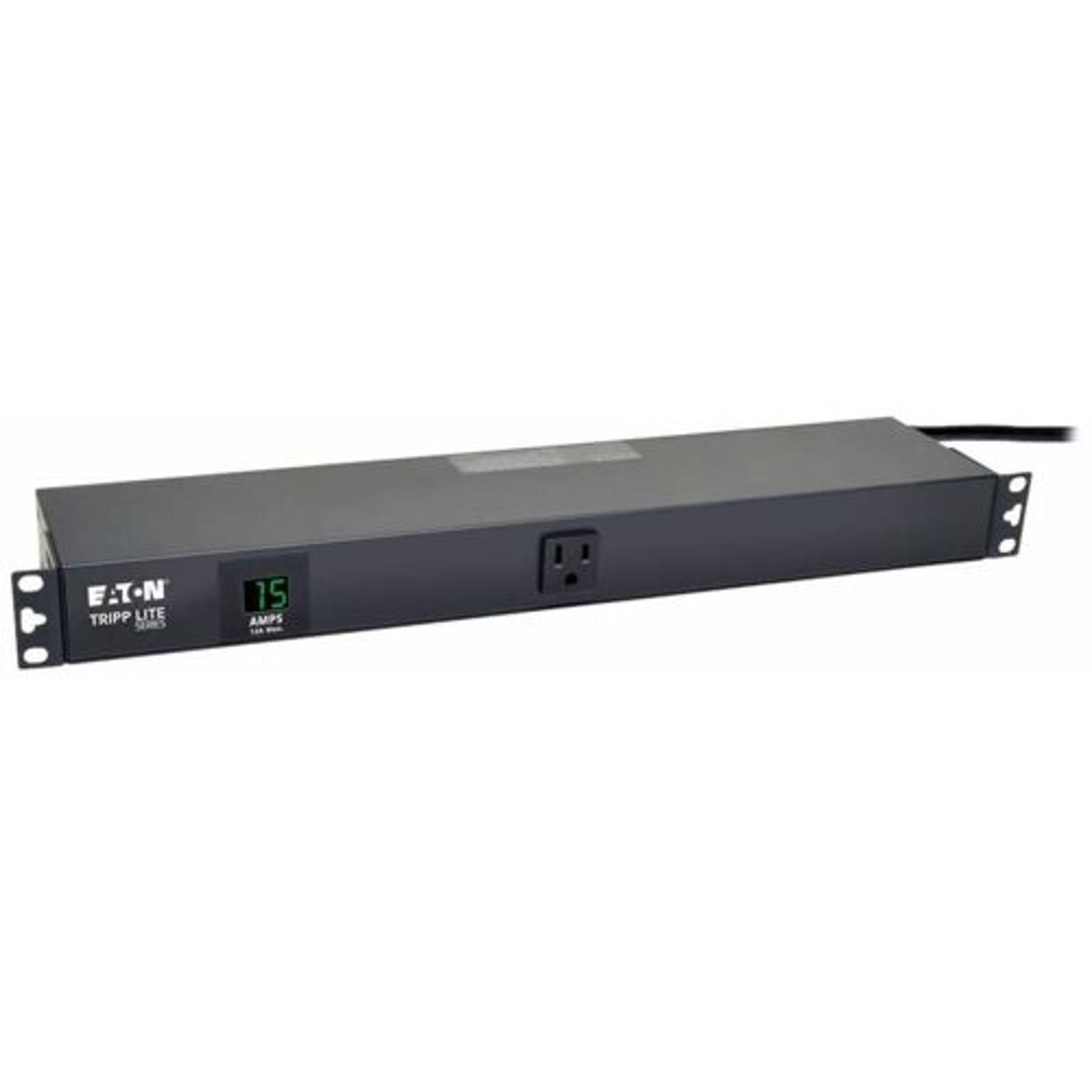

Eaton PDUMH15-RA – 1.5kW 1U Metered Rack PDU

Product Overview

The Eaton PDUMH15-RA is a 1U rack-mount metered PDU built for server rooms and network closets that need reliable single-phase power distribution with local load visibility. Rated for 1.5kW at 100-127V, it delivers power to connected equipment through 13 NEMA 5-15R outlets from a single 5-15P input. A built-in digital meter gives integrators and facilities staff a straightforward way to monitor amperage draw at the rack without adding separate metering hardware. This metered rack PDU is a practical fit for IT rack power distribution projects where overload prevention matters more than remote network management.

Product Description

This 1U rack-mount PDU distributes single-phase power from any protected UPS, generator, or mains circuit to up to 13 connected devices through 5-15R outlets. The built-in digital ammeter provides real-time local reporting of load level in amps, so IT and facilities managers can visually confirm current draw before adding more equipment to a circuit — a simple but effective way to prevent nuisance trips and unplanned downtime in a server rack. Construction is an all-metal housing designed for the mechanical demands of rack environments, and the unit installs using the included mounting hardware for a secure, low-profile 1U footprint. A 15 ft. (4.57 m) power cord with a 5-15P plug gives integrators flexibility when the source receptacle, UPS, or PDU feed isn't directly adjacent to the rack. Because it has no network card, this PDU suits smaller server rooms, branch offices, and network closets where local monitoring is sufficient and remote SNMP/HTML5 management isn't required. It pairs well with a basic UPS or generator feed as the sole point of local power distribution for a rack of switches, servers, or AV control equipment. The rugged housing and included mounting accessories make installation straightforward in standard 19-inch rack enclosures.

Key Features

• Local Digital Metering — A built-in ammeter displays real-time output current so staff can confirm load before adding more connected equipment.
• 13 Outlet 5-15R Capacity — Thirteen NEMA 5-15R receptacles support a full rack of servers, switches, and networking gear from one PDU.
• 1U Rack-Mount Form Factor — The compact 1U chassis conserves valuable rack space in crowded server cabinets and network closets.
• 15 ft. Input Cord — A 15 ft. (4.57 m) power cord with 5-15P plug reaches distant panels, UPS units, or wall receptacles without an extension cord.
• All-Metal Rugged Housing — Durable metal construction withstands the mechanical stress of rack installation and everyday rack service.
• Included Mounting Hardware — Mounting accessories are included for secure, tool-friendly installation in standard EIA 19-inch racks.

Technical Specifications
