Eaton PDUMH15-ISO – Metered PDU with Isobar Surge Suppression
Product Overview

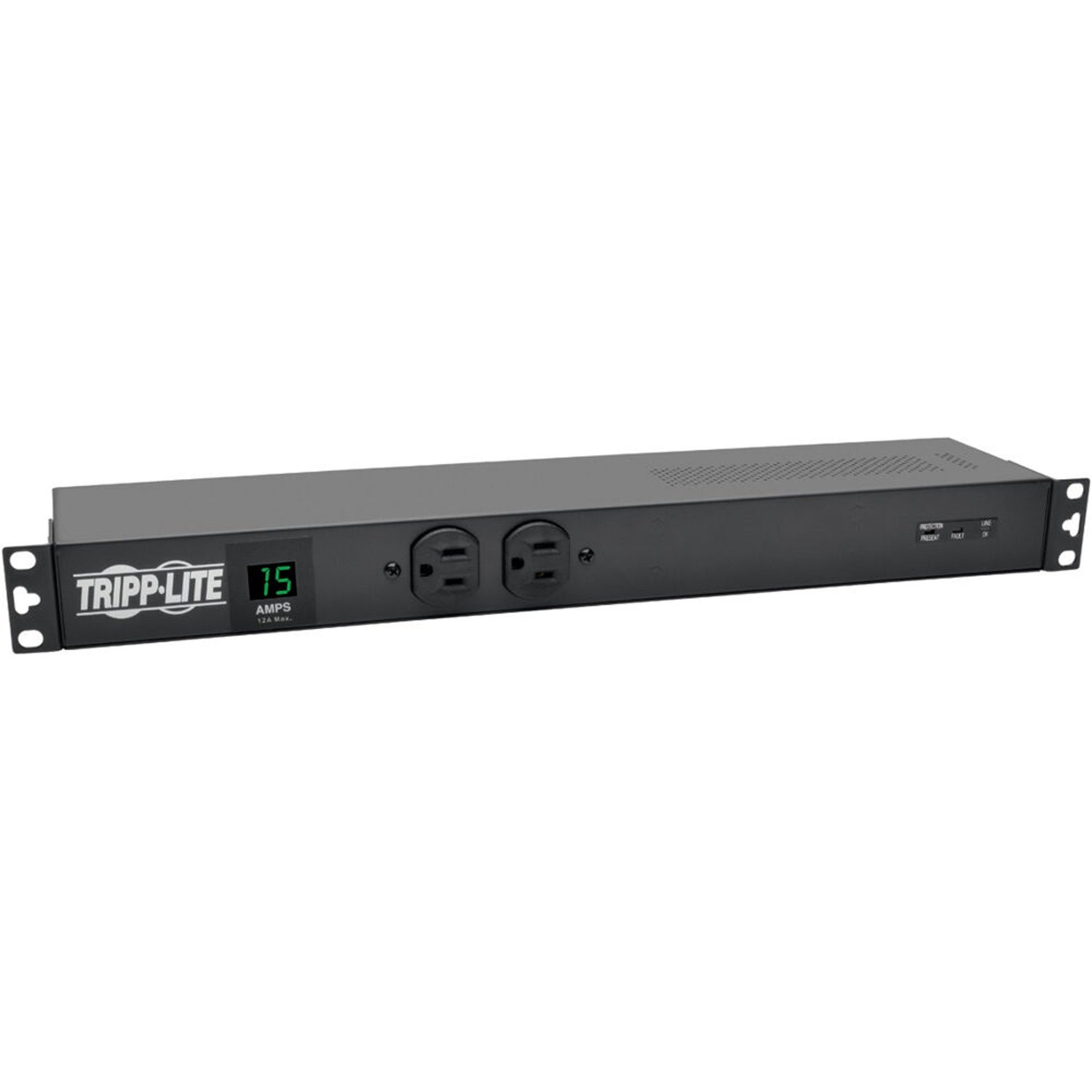

The Eaton PDUMH15-ISO is a metered 1U rack PDU with premium Isobar surge and noise suppression, built for server rooms and network closets that need both load monitoring and equipment-grade protection. With 14 NEMA 5-15R outlets on a 120V, 15A circuit, it combines real-time current reporting with front-panel status LEDs for wiring faults and protection status. This PDU is a practical choice for racks running sensitive network or AV equipment where surge protection matters as much as outlet count.
Product Description
This Tripp Lite metered PDU with Isobar surge suppression offers real-time local reporting of load level in amps, plus premium ISOBAR network-grade AC surge and noise suppression to help protect connected equipment from power quality issues. A digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added, giving IT staff a quick way to check load without a networked monitoring system. A set of three front-panel LEDs provides notification of wiring fault, protection present, and line OK status, so technicians can confirm the unit's protection circuitry is functioning correctly at a glance. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories, suited to standard 19-inch rack installations in server rooms and network closets.
Key Features
- Isobar Network-Grade Surge Suppression — Protects connected equipment from AC surge and noise, beyond what a standard metered PDU offers.
- Digital Load Display — Real-time reporting of PDU output current in amps to help prevent circuit overloads.
- Front-Panel Status LEDs — Indicate wiring fault, protection present, and line OK status.
- 14 NEMA 5-15R Outlets — Supports a substantial equipment load on a single 120V, 15A circuit.
- Rugged All-Metal Housing — Built for secure, durable rackmount installation.
Typical Applications
- Server rooms with sensitive network equipment
- Network closets requiring surge protection
- Data center racks running voltage-sensitive gear
Technical Specifications
| Model | PDUMH15-ISO |
| Voltage | 120V |
| Amperage | 15A |
| Outlets | 14 (NEMA 5-15R) |
| Input Plug | NEMA 5-15P |
| Form Factor | 1U rack-mount |
| Protection | Isobar network-grade AC surge and noise suppression |
| Monitoring | Built-in digital current display, status LEDs |
Frequently Asked Questions
What does the Isobar surge suppression protect against?
It provides network-grade AC surge and noise suppression, helping shield connected equipment from power quality issues beyond basic overload monitoring.
What do the front-panel LEDs indicate?
Three LEDs indicate wiring fault, protection present, and line OK status, letting technicians quickly confirm the unit is functioning correctly.
How is load monitored on this PDU?
A built-in digital display continuously reports PDU output current in amps for real-time load checks.
Is this PDU rackmountable?
Yes, it installs in a standard 19-inch rack using included mounting accessories.
What warranty does Eaton provide on this PDU?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
Can Creation Networks help determine if surge suppression is needed for my rack?
Yes, our team can help assess your facility's power quality and equipment sensitivity to determine if this model is the right fit.
