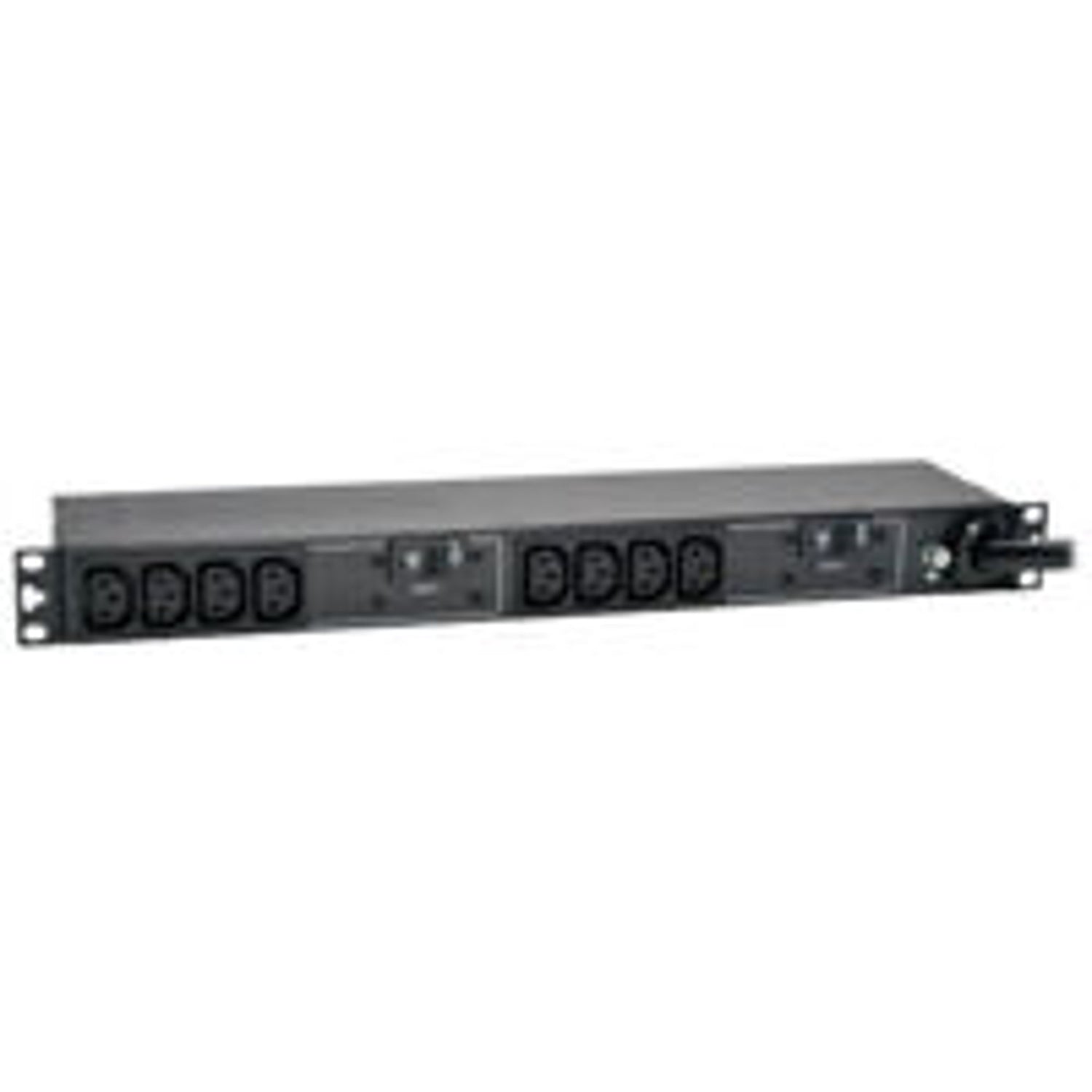

Eaton PDUH30HV – 5.8kW 200-240V Basic Rack PDU
Product Overview
The Eaton PDUH30HV is a 5.8kW single-phase basic PDU designed to deliver 200-240V AC power to multiple loads in high-density IT environments. Built for data centers, server rooms, and network wiring closets, this rack PDU distributes utility, generator, or UPS-sourced power to rack-mounted servers and networking equipment through 10 C13 outlets. Its NEMA L6-30P input plug and rugged rackmount housing make it a straightforward, no-frills option for facilities standardizing on high-voltage PDUs.
Product Description
As IT racks grow denser, 120V circuits often run out of headroom, which is why the PDUH30HV supplies 200-240V single-phase power at 5.8kW through a compact rackmount PDU. The unit accepts a NEMA L6-30P input, a common connector for 30A 208-240V circuits found in data center and server room power infrastructure, and distributes that power across 10 IEC C13 outlets suited to servers, switches, and other C13/C14-corded equipment. Because the PDUH30HV is a basic (unmetered, unswitched) PDU, it offers a simple, reliable pass-through design without the complexity or cost of network-managed models, making it a practical fit for racks where local monitoring and remote outlet control are not required. The rugged construction and rack-mount form factor allow it to be installed alongside servers, storage arrays, and network switches in a 19-inch rack, keeping cable runs short in colocation cages and network wiring closets. This PDU is well suited for facilities running a mix of utility, generator, and UPS power sources feeding high-density server rows.
Key Features
- 5.8kW High-Voltage Capacity — 200-240V single-phase power supports denser server and switch loads than a standard 120V circuit.
- 10 C13 Outlets — Standard IEC C13 receptacles connect directly to servers, switches, and other C14-corded IT equipment.
- NEMA L6-30P Input — The locking 30A input plug matches common data center 208-240V branch circuits.
- Basic Pass-Through Design — A simple, unmetered PDU keeps installation straightforward where advanced monitoring is not required.
- Rugged Rackmount Housing — Durable construction is built for continuous duty in data center and server room racks.
Typical Applications
- Data centers
- Server rooms
- Network wiring closets
- Colocation facilities
Technical Specifications
| Power Rating | 5.8kW |
| Voltage | 200-240V, single-phase |
| Input Connector | NEMA L6-30P |
| Output Outlets | 10 x C13 |
| PDU Type | Basic (unmetered) |
Frequently Asked Questions
What equipment can connect to the PDUH30HV?
Any server, switch, or networking device with a C14 power inlet cord can connect directly to the PDU's 10 C13 outlets.
What input power does this PDU require?
The PDUH30HV requires a 200-240V single-phase circuit terminating in a NEMA L6-30P receptacle, typically supplied by facility power, a generator, or a UPS.
Is this PDU compatible with rack-mounted UPS systems?
Yes, the PDUH30HV is designed to accept power from a UPS, generator, or utility feed and distribute it to rack-mounted IT equipment.
How is the PDUH30HV mounted?
The unit installs into a standard 19-inch rack using its rackmount housing and included hardware.
Does the PDUH30HV include outlet-level metering?
No, this is a basic PDU without built-in metering. Customers who need current monitoring should consider one of Eaton's metered PDU models.
What warranty applies to this unit?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
