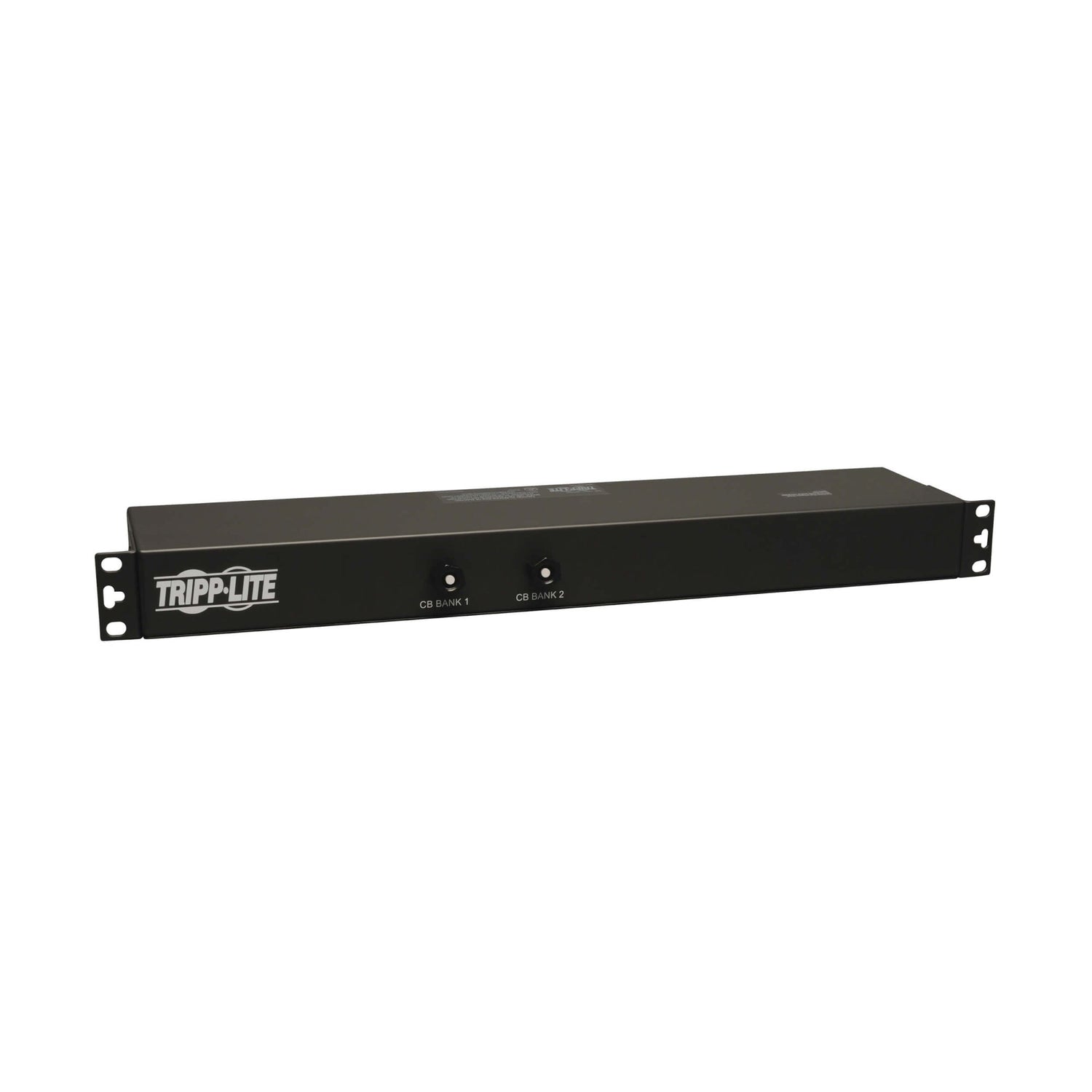

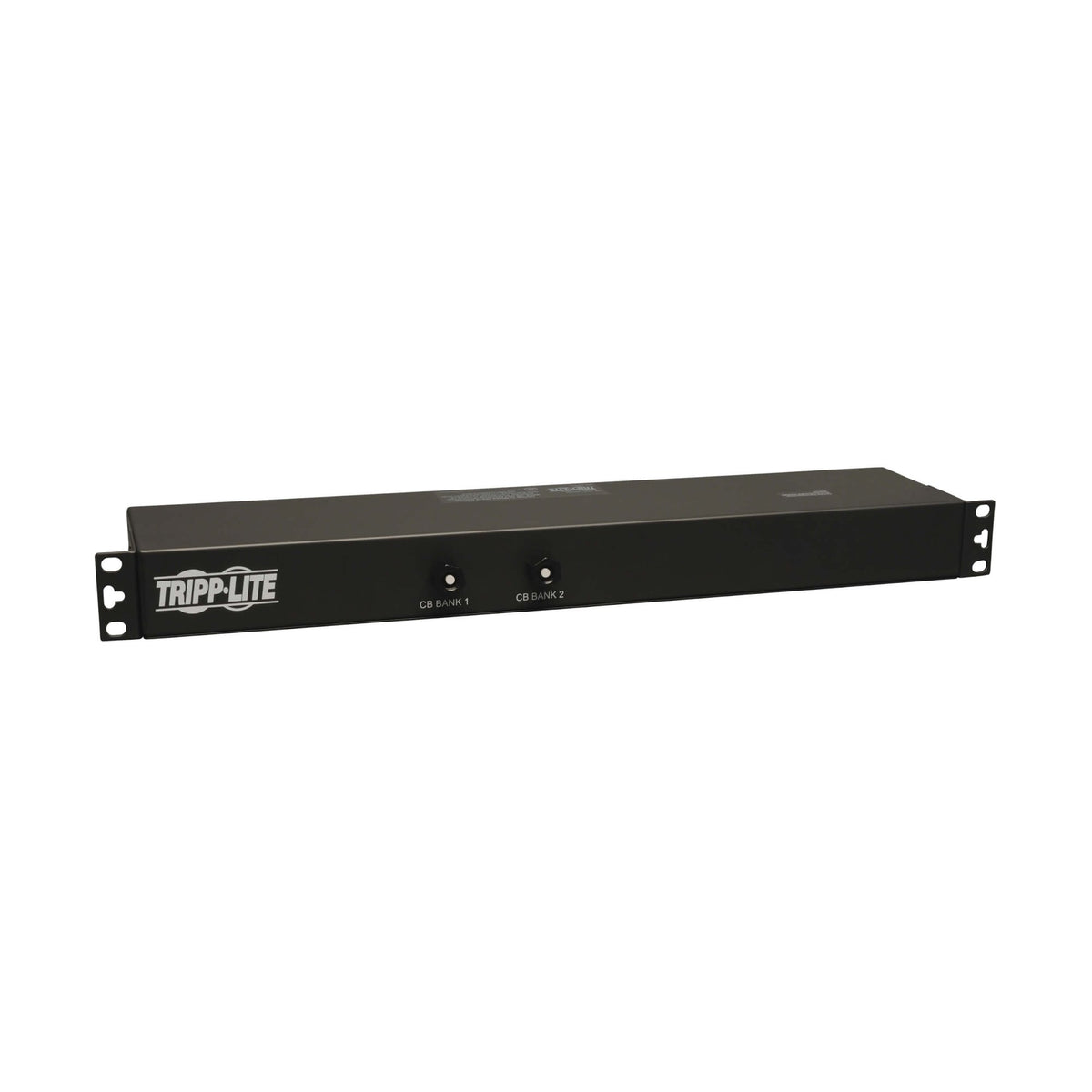

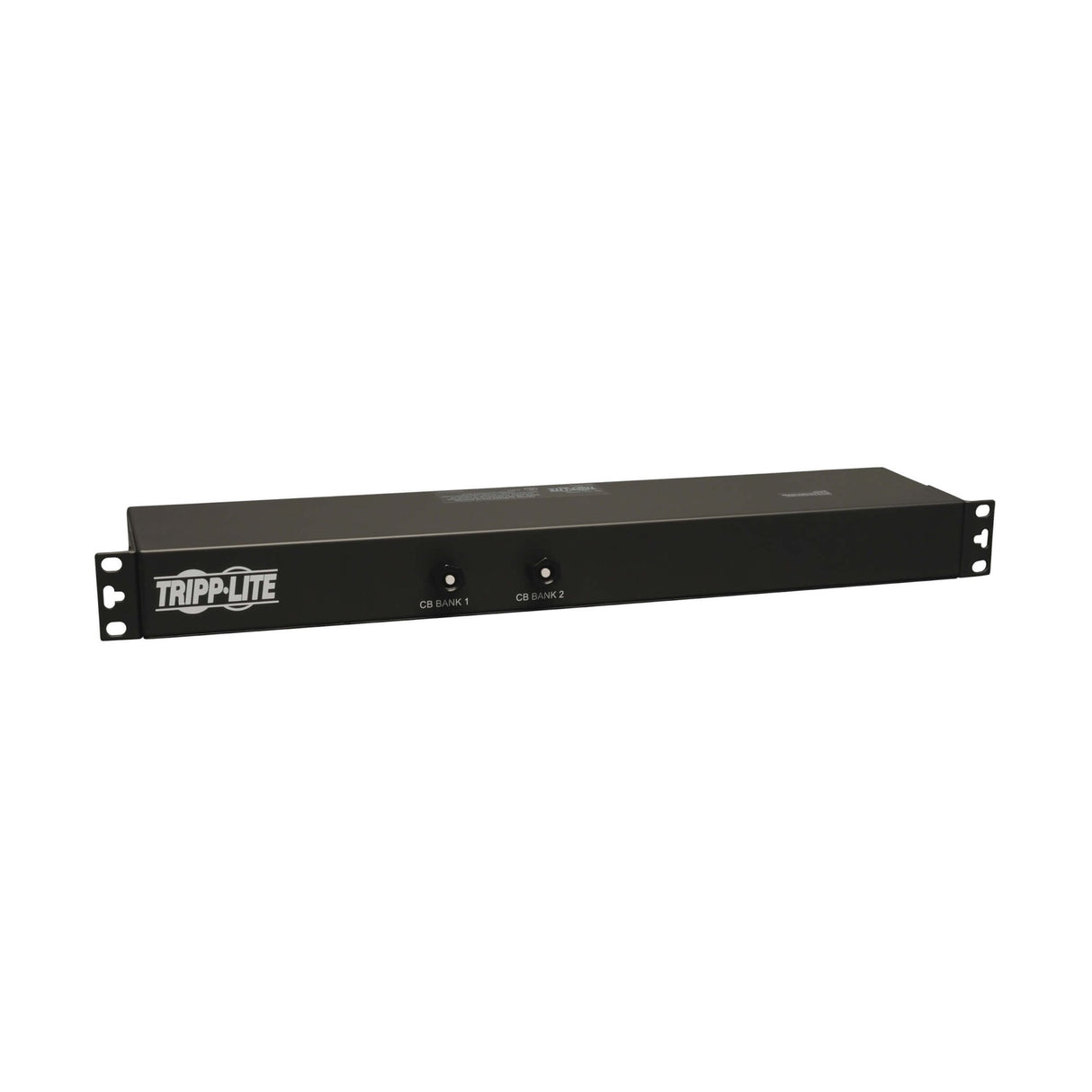

Eaton PDUH30-ISO – 2.9kW Basic PDU w/ Isobar Surge

Product Overview

The Eaton PDUH30-ISO is a 2.9kW single-phase basic PDU with built-in ISOBAR surge protection, designed as a no-frills power distribution option for telecom, security, and audio/video rack applications. It delivers power through 12 NEMA 5-15/20R outlets arranged in two separately breakered load banks, connecting to facility power through a 15 ft. (4.6 m) cord with an L5-30P input plug. Its switchless design and dual circuit breakers make this basic surge-protected PDU a dependable choice for network-grade IT environments that need reliable, protected power without remote monitoring features.

Product Description

Built as a straightforward, no-frills power distribution unit, the PDUH30-ISO is recommended for network-grade IT environments where dependable protected power matters more than remote monitoring. Twelve NEMA 5-15/20R outlets are split across two separately breakered load banks, so a fault or overload on one bank doesn't take down the entire rack — a useful safeguard for telecom, security, and general portable or stationary rack-mount applications. A 15-foot (4.6-meter) cord with an L5-30P input plug connects the unit to a facility's AC source, generator, or protected UPS system, giving integrators flexibility in where the PDU sits relative to its power source. The switchless design avoids the risk of an accidental shutdown that a switched PDU could introduce, helping prevent costly downtime from an inadvertent outlet toggle. Circuit breakers on each load bank protect connected components from dangerous overloads, and the built-in ISOBAR surge protection helps guard rack equipment from AC line disturbances. This combination of dual breakered banks, surge protection, and a rugged 30A rated design makes the PDUH30-ISO well suited to audio/video racks, telecom equipment closets, and general commercial rack-mount deployments that need reliable, protected power distribution without the complexity of network management.

Key Features

• 2.9kW Single-Phase Capacity — Delivers substantial power to a full rack of telecom, AV, or general IT equipment from one PDU.
• Two Separately Breakered Load Banks — Splits the 12 outlets across two circuits so a fault on one bank doesn't affect the other.
• Built-In ISOBAR Surge Protection — Guards connected equipment against AC surges and line noise without a separate surge protector.
• Switchless Design — Eliminates the risk of an accidental outlet shutdown, helping avoid unplanned downtime.
• L5-30P Input with 15 ft. Cord — A 15-foot (4.6 m) cord with L5-30P plug connects to facility power, a generator, or a protected UPS system.
• Dual Circuit Breaker Protection — Protects connected components from dangerous overloads on each load bank independently.

Typical Applications

• Data center
• Server room
• Network closet
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Why are the outlets split across two load banks?

Separating the 12 outlets into two breakered banks means a breaker trip or fault on one bank doesn't take down power to equipment on the other bank, improving overall rack resilience.

Does this PDU offer remote monitoring?

No. The PDUH30-ISO is a basic, no-frills PDU without network monitoring; it focuses on dependable protected power distribution rather than remote management.

What circuit does the L5-30P input require?

It requires a 30A locking receptacle or circuit compatible with the L5-30P plug on the 15 ft. input cord.

What kind of equipment is this PDU designed for?

It's recommended for telecom, security, audio/video, and general portable or stationary rack-mount applications in network-grade IT environments.

Does the switchless design mean I can't turn outlets off remotely?

Correct — this is a basic, always-on PDU without switched outlet control, which avoids the risk of an accidental shutdown from a remote command or software glitch.

What warranty applies to the PDUH30-ISO?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can this PDU be used with a UPS or generator as the power source?

Yes, the 15 ft. input cord is designed to connect to a facility's AC power source, a generator, or a protected UPS system.
