Eaton PDU3XMV6G32 – 23kW 3-Phase Metered PDU, 42 Outlets

Product Overview

The Eaton PDU3XMV6G32 is a 23kW, 3-phase local metered PDU built for high-capacity data center racks that need extensive outlet counts alongside real-time load monitoring. With 42 total 208-240V outlets and an IEC309 32A 3-phase input, it is designed for demanding rack power distribution in enterprise and colocation environments. This vertical 0U PDU is TAA-compliant, making it an option for federal and GSA-eligible procurement.

Product Description

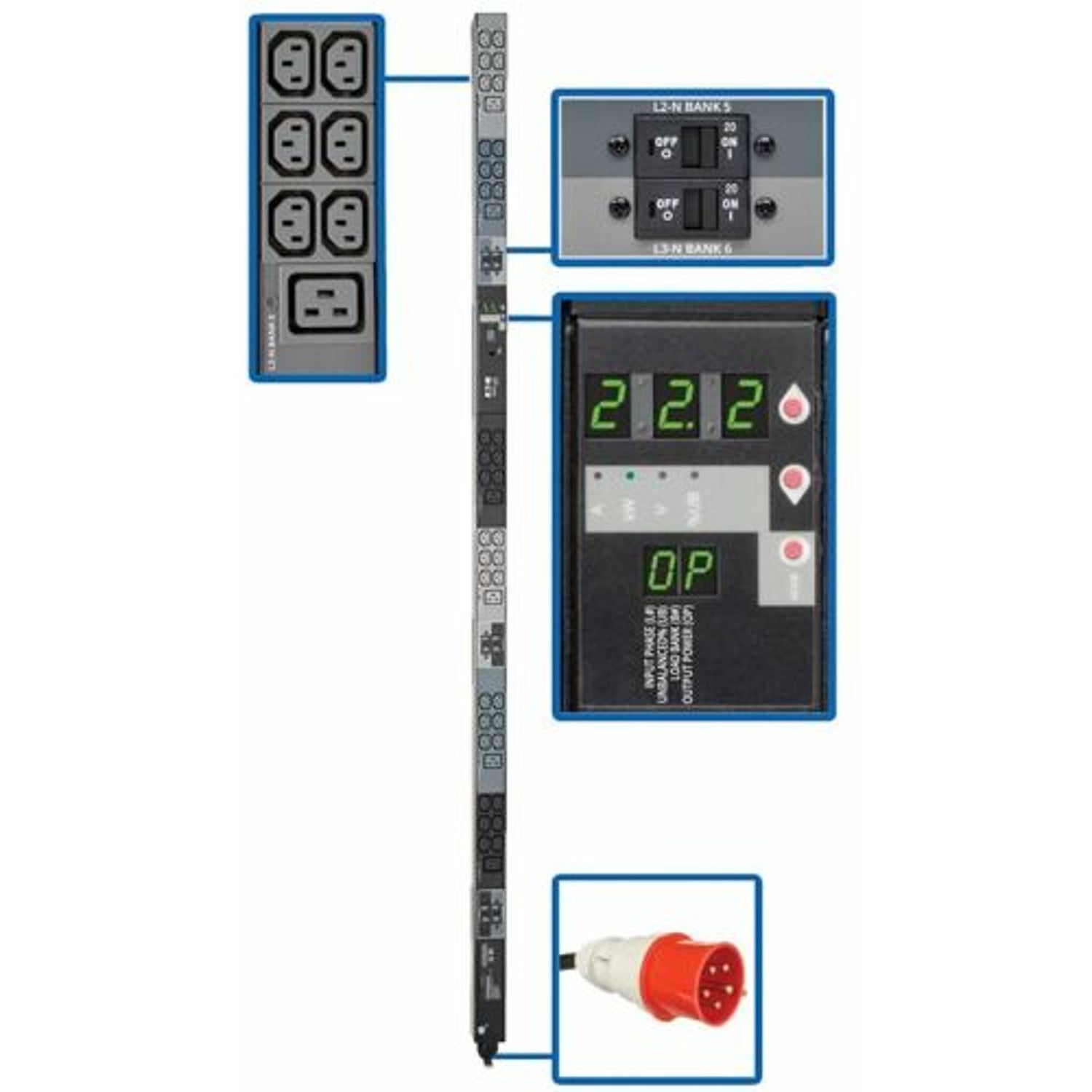

This 3-phase metered PDU offers real-time local reporting of output current, output kW, and input voltage via a built-in multifunction digital display, giving facilities teams visual monitoring of PDU current levels to preserve proper phase loading balance and prevent circuit overloads as additional equipment is added. It provides reliable rackmount multi-outlet power distribution from any protected UPS, generator, or mains input power source, which is important in racks running mixed high-draw equipment. The unit delivers 23kW of capacity across 42 outlets — 36 C13 and 6 C19 — supporting a wide range of connected devices on a single PDU. Its IEC309 32A Red (3P+N+E) input at 360-415V is built for 3-phase facility distribution common in larger data centers. High quality construction includes rugged all-metal housing and secure rackmount installation hardware, with a 0U vertical form factor that keeps the full outlet count available without consuming rack U-space. TAA compliance makes this PDU eligible for GSA Schedule and other federal procurement contracts, which matters for integrators serving government facilities.

Key Features

• 23kW Capacity — High power density suitable for racks running demanding, high-draw equipment.
• Multifunction Digital Display — Reports output current, output kW, and input voltage locally for real-time phase balance checks.
• 42 Total Outlets — 36 C13 and 6 C19 outlets support a broad mix of server and network equipment.
• IEC309 32A 3-Phase Input — 360-415V 3P+N+E input matches larger data center distribution schemes.
• 0U Vertical Mounting — Preserves rack U-space while delivering a high outlet count.
• TAA Compliant — Eligible for GSA Schedule and other federal procurement contracts.

Typical Applications

• Enterprise and colocation data center racks
• Government and federal facility data centers
• High-density server rooms

Technical Specifications

Frequently Asked Questions

What does the digital display show on this PDU?

It reports output current, output kW, and input voltage locally, giving staff a real-time view of phase loading and overall power draw.

Is this PDU TAA-compliant?

Yes, the PDU3XMV6G32 is TAA-compliant, making it eligible for GSA Schedule and other federal procurement contracts.

What input connector does this PDU use?

It uses an IEC309 32A Red (3P+N+E) plug for 360-415V 3-phase input.

How much rack space does this PDU require?

It uses a 0U vertical form factor, so it does not consume horizontal rack U-space.

Can this PDU run from a UPS or generator?

Yes, it distributes power reliably from any protected UPS, generator, or mains input source.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help with 3-phase PDU sizing for my rack?

Yes, our team can help confirm phase balance, input connector type, and outlet mix for your deployment.
