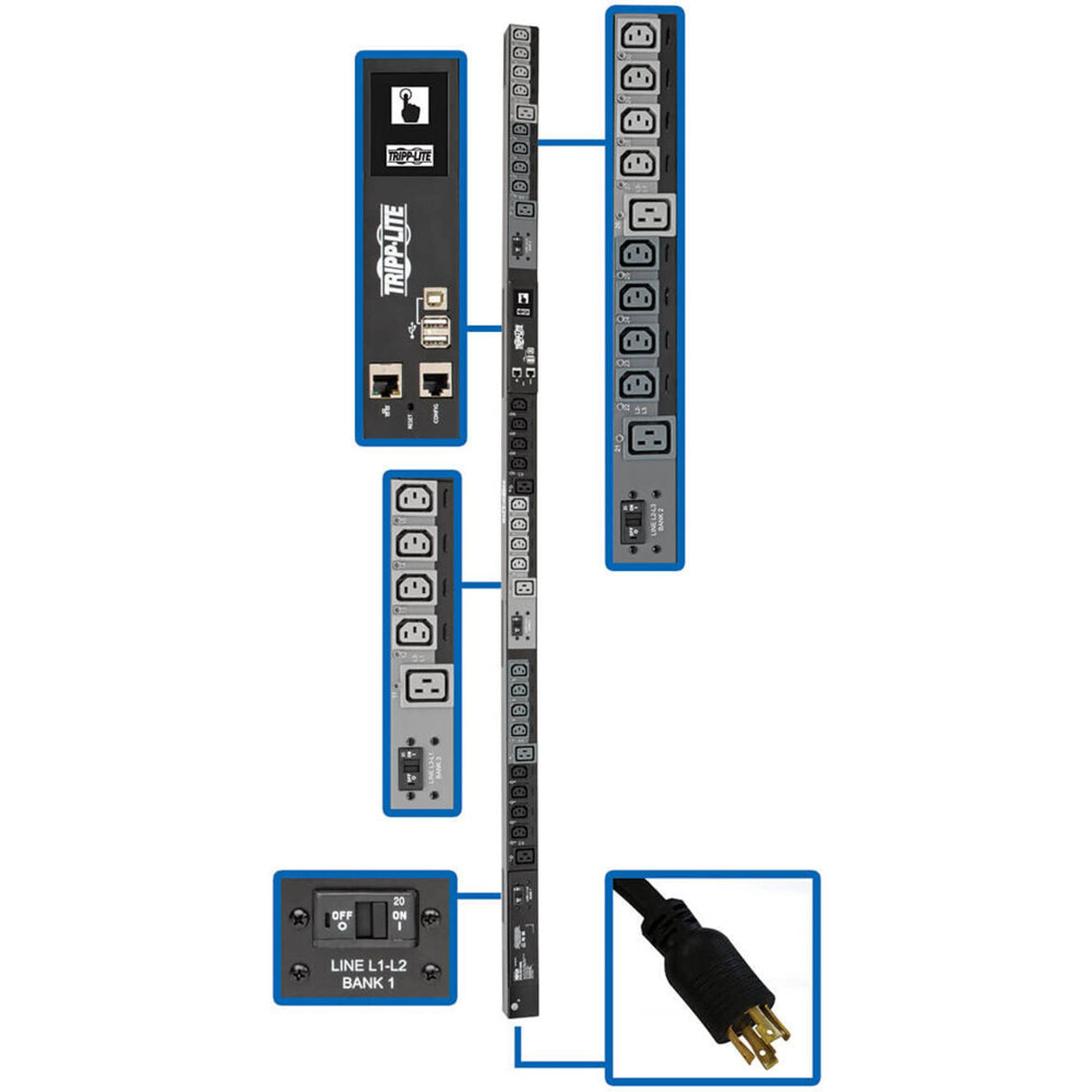

Eaton PDU3EVSR10L2130 – 10kW 3-Phase Switched PDU
Product Overview
The Eaton PDU3EVSR10L2130 is a 10kW 3-phase switched PDU rated for 200/208/240V, giving data center and colocation teams remote, per-outlet control over 30 total outlets (24 C13 and 6 C19). Built for high-density racks, this switched PDU lets administrators turn on, turn off, reboot, or lock out power to individual outlets without a site visit, reducing downtime and the frequency of hands-on maintenance. Its 0U form factor is designed for demanding 3-phase server room and data center power distribution.
Product Description
The PDU3EVSR10L2130 delivers 10kW of 3-phase switched power distribution, giving data center and colocation operators granular remote control over every connected load. Each of the 30 switched outlets, made up of 24 C13 and 6 C19 connections, can be turned on, turned off, rebooted, or locked out independently through the PDU's network interface, allowing staff to resolve a hung server or free up an unused outlet without walking the floor. Included plug-lock insert sleeves help keep connected power cords securely seated, reducing the risk of an accidental disconnection in a busy, high-density rack.
Rated for 200/208/240V 3-phase input, the PDU3EVSR10L2130 is built for facilities running higher-capacity, higher-density power infrastructure than a typical single-phase PDU can support. A 10-foot (3.05 m) cord with a NEMA L21-30P plug connects the unit to a compatible AC power source. As a 0U unit, it mounts to preserve horizontal rack space for servers and network equipment, making it well suited for data centers and colocation facilities that need both remote switching capability and 3-phase power density in a single rack PDU.
Key Features
- Individually Switched Outlets — Remotely turn on, turn off, reboot, or lock out power to any of the 30 outlets without a site visit.
- 3-Phase, 10kW Capacity — Supports high-density racks that exceed typical single-phase power capacity.
- 24 C13 and 6 C19 Outlets — Accommodates both standard and higher-draw equipment power cords.
- 200/208/240V Input Rating — Fits common data center and colocation electrical infrastructure.
- Plug-Lock Insert Sleeves Included — Help prevent accidental cord disconnections in busy racks.
- NEMA L21-30P Input Plug — Connects to a compatible 3-phase AC power source via a 10-ft. (3.05 m) cord.
- 0U Form Factor — Preserves horizontal rack unit space for servers and network equipment.
Typical Applications
- Data center high-density rack power distribution
- Colocation facility deployments requiring remote outlet control
- Server room 3-phase power infrastructure
- Network closet installations with mixed C13/C19 equipment
Technical Specifications
| Power Rating | 10kW, 3-phase |
| Input Voltage | 200/208/240V |
| Input Plug | NEMA L21-30P |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Outlets | 30 total: 24 x C13, 6 x C19 (switched) |
| Form Factor | 0U |
| Cord Retention | Included plug-lock insert sleeves |
Frequently Asked Questions
Can I control individual outlets remotely on this PDU?
Yes, each of the 30 outlets can be switched on, off, rebooted, or locked out independently through the PDU's network interface.
Does this PDU require 3-phase electrical infrastructure?
Yes, the PDU3EVSR10L2130 is rated for 200/208/240V 3-phase input and requires a compatible 3-phase circuit or power source.
What equipment can connect to this PDU?
The 24 C13 outlets support standard servers, switches, and networking gear, while the 6 C19 outlets accommodate higher-draw equipment such as certain storage arrays and server chassis.
How does the PDU prevent accidental cord disconnections?
Included plug-lock insert sleeves help keep connected power cords securely seated in each outlet.
How much rack space does this PDU use?
It is a 0U unit, designed to preserve horizontal rack space for servers and other network equipment.
What input connection does this PDU use?
It connects via a 10-foot (3.05 m) cord with a NEMA L21-30P plug to a compatible 3-phase AC power source.
What warranty applies to this PDU?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
Can Creation Networks help plan a 3-phase rack power layout?
Yes, our team can help review your 3-phase circuit capacity and outlet requirements before you order.
