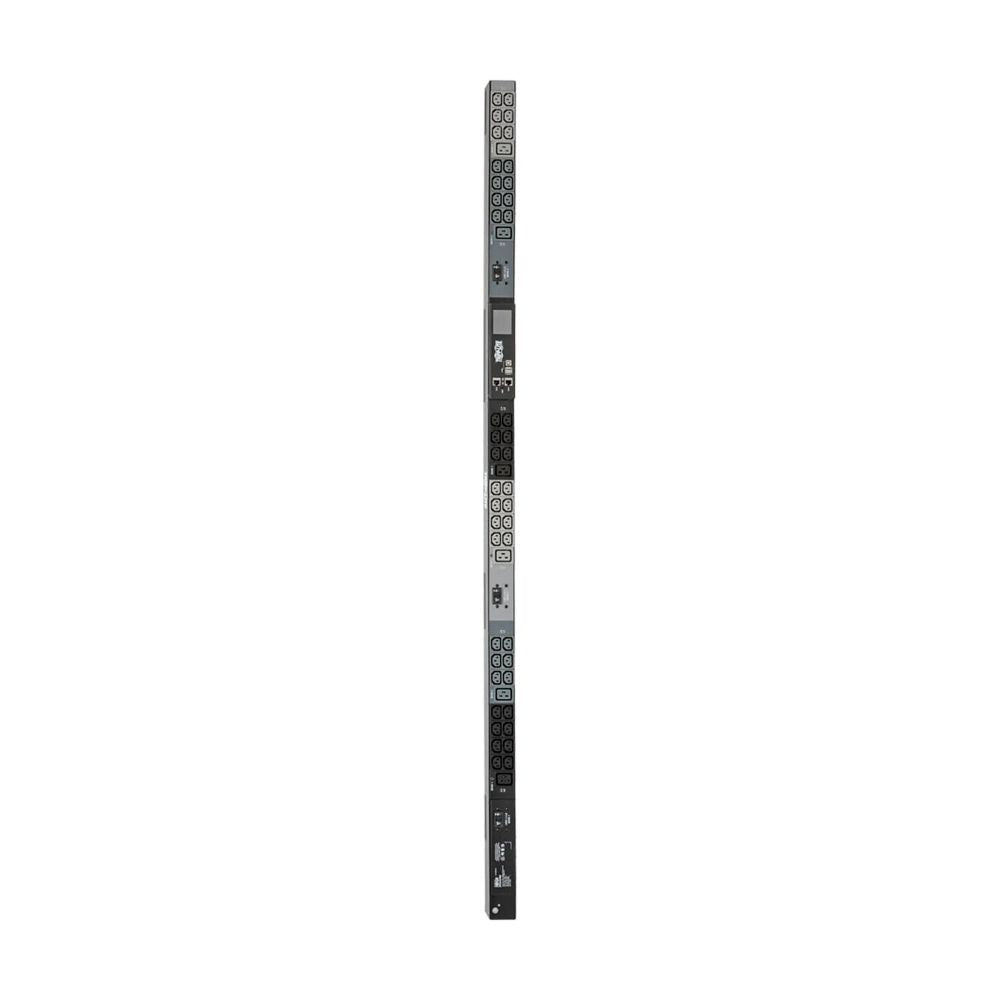

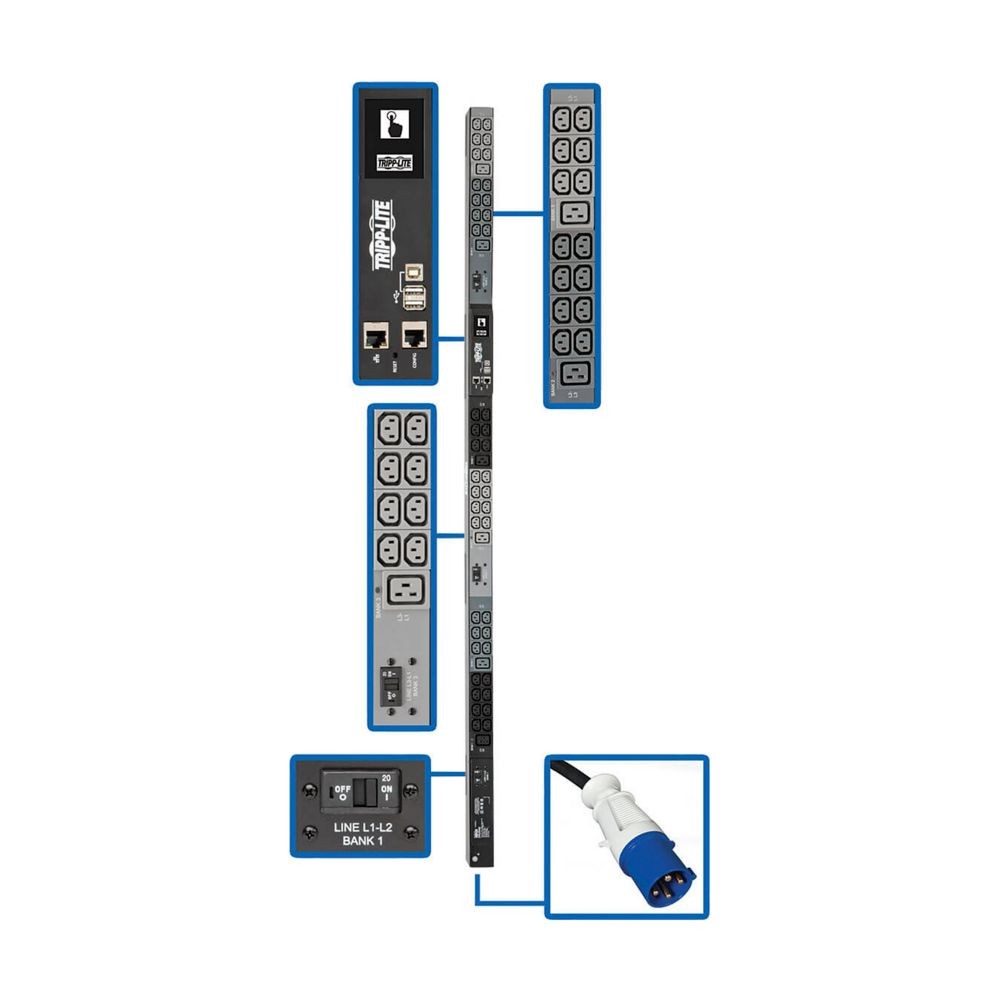

Eaton PDU3EVN6G60B – 14.5kW 3-Phase Monitored PDU
Eaton PDU3EVN6G60B – 14.5kW 3-Phase Monitored PDU is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Product Overview
The Eaton PDU3EVN6G60B is a 0U vertical, 3-phase monitored rack PDU rated for 14.5kW, built for data center and server room racks running mixed C13/C19 equipment loads. It uses the LX platform interface for local load monitoring and connects via an industrial IEC-60309 60A blue input plug. Buyers researching a 3-phase monitored PDU with a large outlet count for a data center rack will find this model sized for large, high-density racks. It suits colocation, enterprise data center, and server room deployments.
Product Description
The PDU3EVN6G60B draws 200-240V 3-phase power through an IEC-60309 60A blue (3P+E) plug on a 6 ft. cord, rated for up to 35A input and 14.5kW of output capacity. It delivers 48 total outlets — 42 IEC C13 and 6 IEC C19 — giving rack designers room to mix standard 1U/2U servers with higher-draw network switches, blade chassis, or storage controllers on a single PDU. The LX interface provides monitored PDU functionality with remote management visibility into overall load, letting facilities and IT teams track circuit draw without deploying a separate metering appliance. Its 0U vertical, roughly 70-inch chassis mounts along the rear rail of the rack, keeping all 48 outlets within reach along the cabinet height while leaving every rack unit available for active equipment. This PDU is a good fit for data center racks, server rooms, and large AV/IT equipment cabinets that need a 3-phase circuit split across a high outlet count with basic load monitoring rather than full outlet-level switching.
Key Features
- 14.5kW 3-Phase Capacity — Supports high-density rack loads split across 48 outlets.
- 48 Outlets (42 C13 / 6 C19) — Mixed receptacle count for standard servers plus higher-draw equipment.

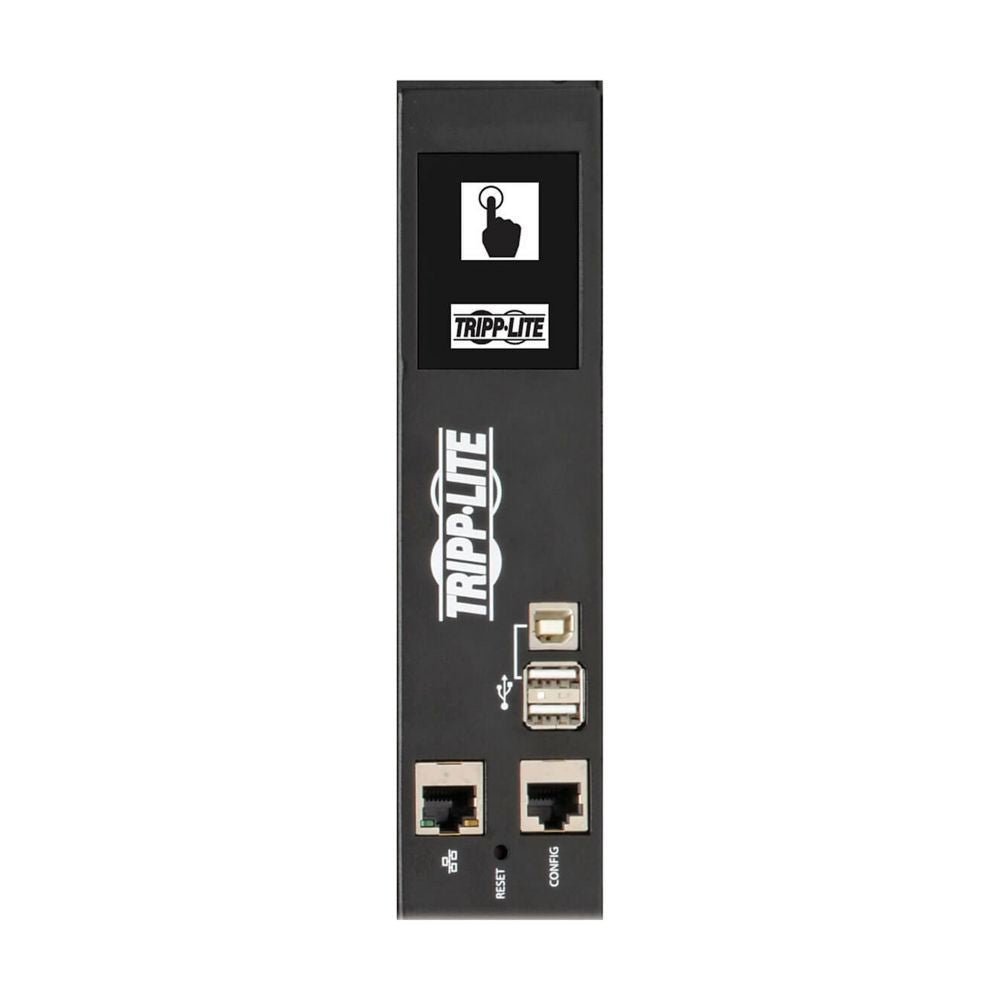

- LX Platform Monitoring — Local and remote visibility into PDU load.
- IEC-60309 60A Blue Input — Industrial-grade locking plug rated for 3-phase branch circuits.
- 0U Vertical Mounting — Preserves rack unit space across the full height of the cabinet.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 200-240V, 3-phase |
| Max Input Current | 35A |
| Input Plug | IEC-60309 60A Blue (3P+E) |
| Cord Length | 6 ft. |
| Max Output Power | 14.5kW |
| Output Receptacles | 42x C13, 6x C19 (48 total) |
| Form Factor | 0U, vertical |
| Dimensions (H x W x D) | 70 in x 2.17 in x 2.52 in |
| Weight | 18.66 lb |
| Monitoring | LX platform interface (monitored) |
