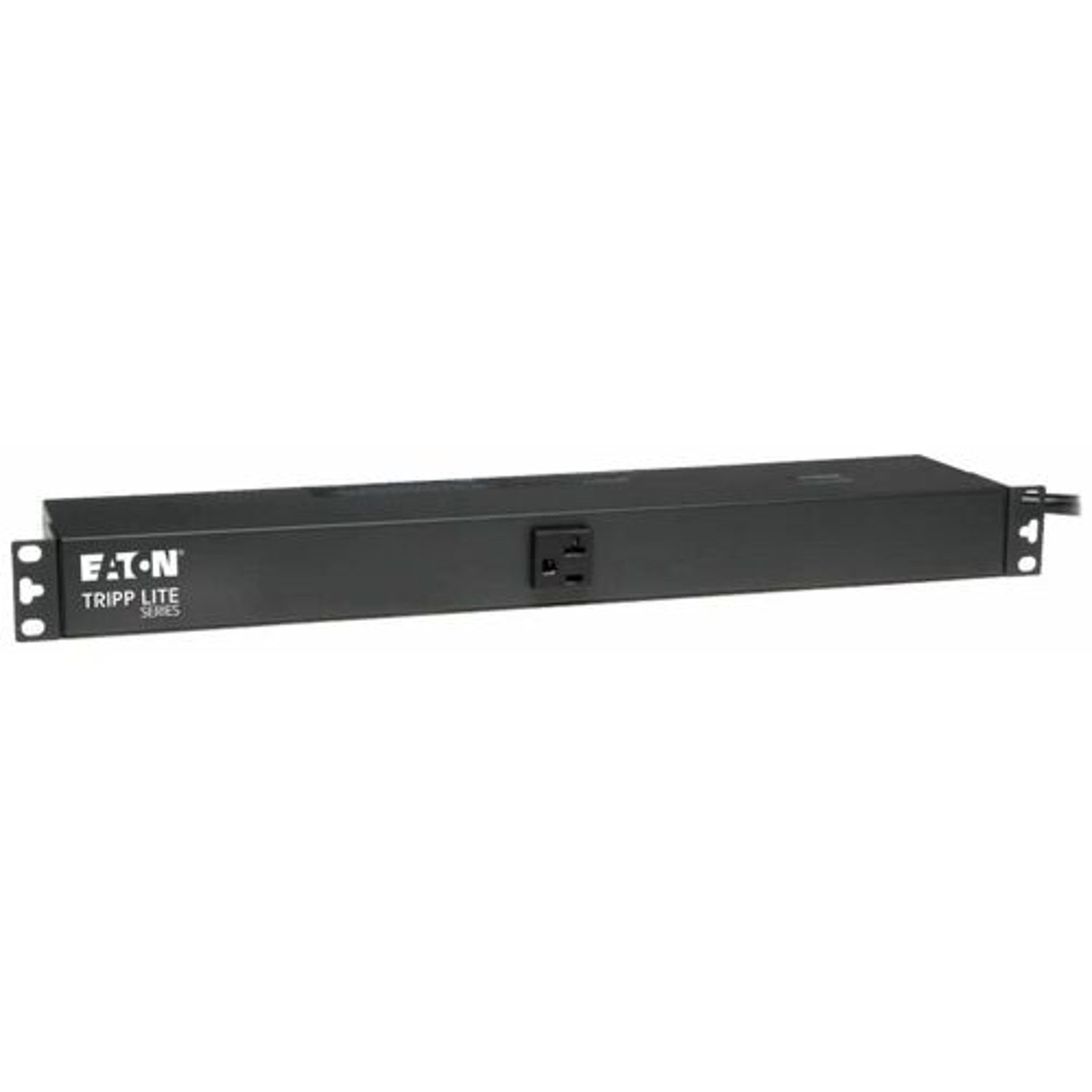

Eaton PDU1226 – 2.4kW 120V Basic PDU, 13 Outlets, 1U
Eaton PDU1226 – 2.4kW 120V Basic PDU, 13 Outlets, 1U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Eaton PDU1226 – 2.4kW 120V Basic PDU, 13 Outlets, 1U
Product Overview
The Eaton PDU1226 is a 2.4kW single-phase basic PDU built to distribute network-grade 120V power to multiple loads from a compact 1U rack-mount unit. With 13 NEMA 5-15/20R outlets, this basic PDU is a no-frills option for networking, telecom, security, and audio/video applications in high-density IT racks.
Product Description
The PDU1226 features a single breakered load bank with 13 NEMA 5-15/20R outlets, 12 mounted in the rear and one in front for quick access to a spare receptacle. A six-foot cord terminating in a NEMA 5-20P input plug connects to facility AC power, a generator, or a protected UPS system, distributing that power reliably to connected servers, switches, and networking equipment. Recommended for high-density IT environments, the PDU1226 is well suited to networking, telecom, security, audio/video, and sound reinforcement applications where a straightforward, unmetered PDU is all that is needed. Its 1U rack-mount housing keeps the footprint compact in shared cabinets, and the single load bank design simplifies both installation and cable management for smaller equipment rollouts.
Key Features
- 13 NEMA 5-15/20R Outlets — Twelve rear-facing and one front-facing outlet support a range of server and networking equipment cords.
- Compact 1U Rack-Mount Design — The housing installs into a standard 19-inch rack without consuming excess space.
- NEMA 5-20P Input Plug — A 6-ft. cord connects to facility power, a generator, or a protected UPS system.
- Single Breakered Load Bank — A dedicated breaker protects connected equipment from overcurrent conditions.
