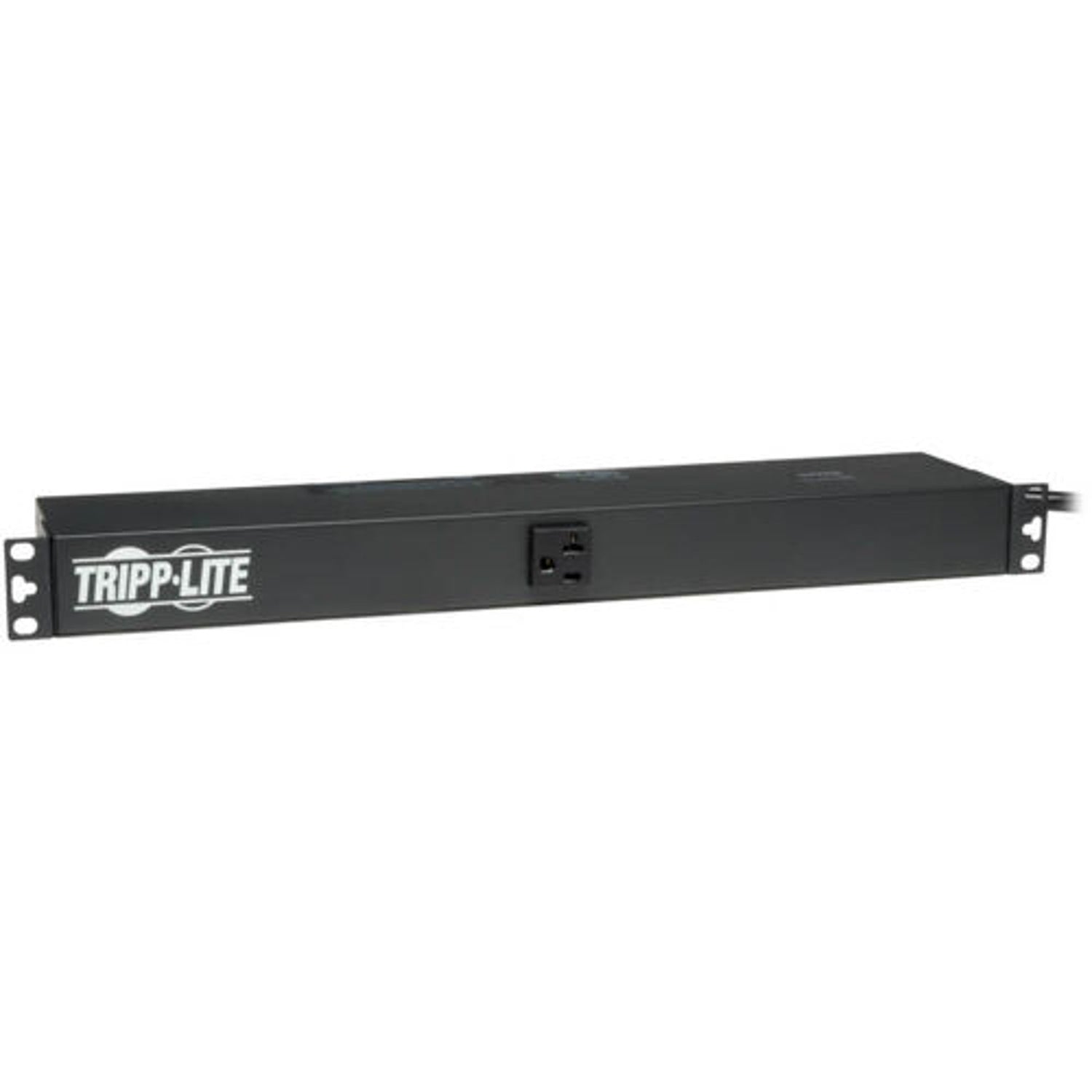

Eaton PDU1220T – 2.4kW Basic PDU, 13 Outlets, 1U/0U
Eaton PDU1220T – 2.4kW Basic PDU, 13 Outlets, 1U/0U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Eaton PDU1220T – 2.4kW Basic PDU, 13 Outlets, 1U/0U
Product Overview
The Eaton PDU1220T is a basic 120V, 20A power distribution unit providing 13 NEMA 5-15/20R outlets in a compact, multi-mount cabinet. Detachable mounting flanges support wallmount, under-counter, or 1U/0U rackmount installation, making it a flexible choice for server rooms, network closets, and small equipment rooms. Its shallow 4.5-inch depth and mix of 12 rear-facing and one front-facing outlet suit tight rack spaces where a full-depth PDU won't fit. Integrators needing a simple, no-frills basic PDU for standard 120V equipment will find this unit a practical, low-cost option.
Product Description
This basic AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation, giving integrators flexibility to fit the PDU into the available space in a rack, closet, or equipment room. It uses only one rack space (1U) when installed in any 19-inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Its attractive housing includes 12 rear-facing outlets and one front-facing outlet, for a total of 13 NEMA 5-15/20R receptacles, and measures only 4.5 inches in depth, making it well suited to shallow racks or tight equipment closets where a full-depth PDU would not fit.
Key Features
- 13 NEMA 5-15/20R Outlets — 12 rear-facing and 1 front-facing outlet accommodate a mix of rack and nearby equipment.
- 2.4kW at 120V, 20A — Provides ample capacity for standard rack-mount servers, switches, and peripherals.
- Flexible Multi-Mount Design — Detachable flanges support wallmount, under-counter, or 1U/0U rackmount installation.
- Shallow 4.5 in. Depth — Fits tight rack spaces and equipment closets where full-depth PDUs won't fit.
- 1U/0U Rackmount Compatible — Uses only 1U when rack-mounted, with the option for 0U mounting in cable management areas.
Technical Specifications
| Power Capacity | 2.4kW |
| Voltage | 120V |
| Current Rating | 20A |
| Outlets | 13 x NEMA 5-15/20R (12 rear, 1 front) |
| Form Factor | 1U/0U rackmount, wallmount, or under-counter |
| Depth | 4.5 in. |
