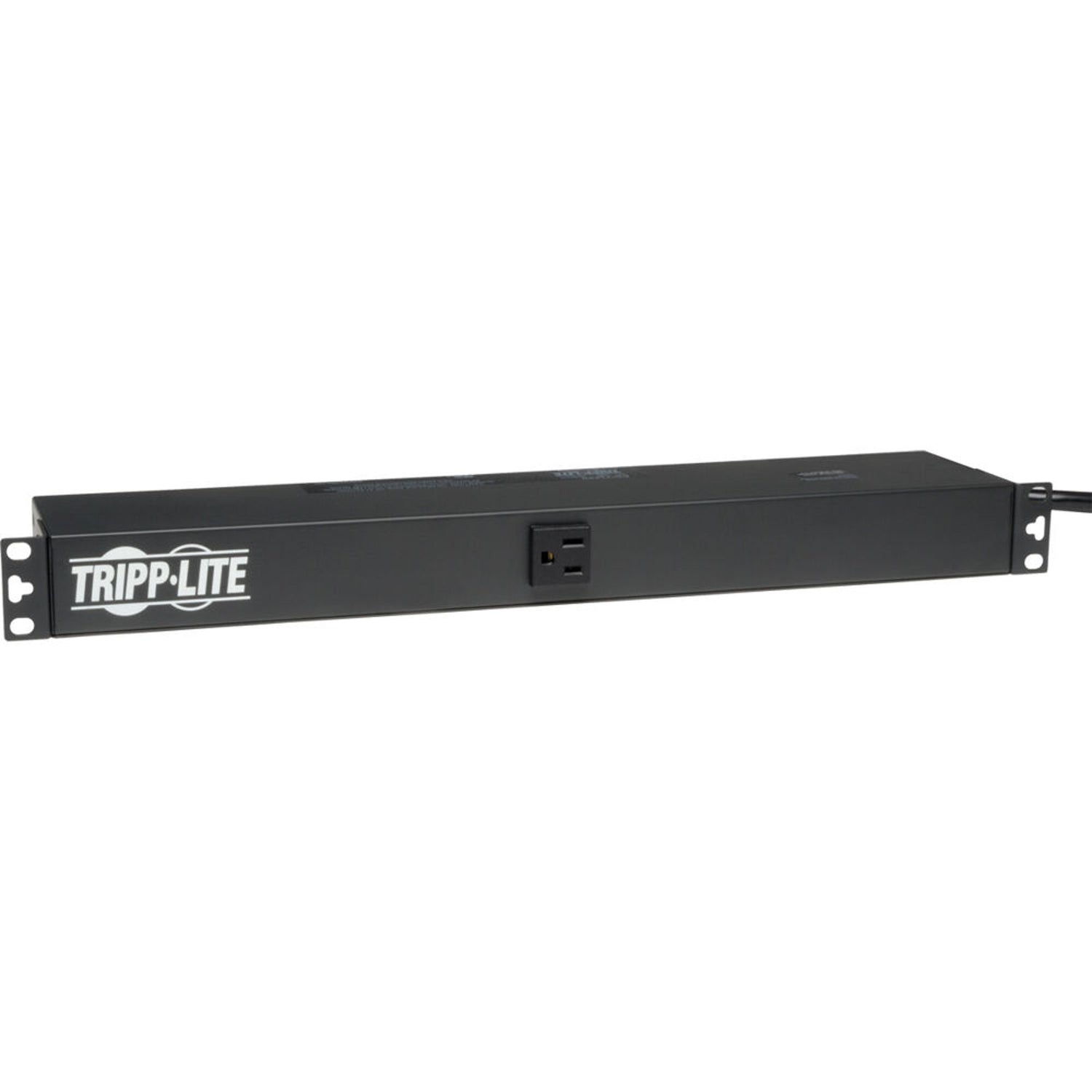

Eaton PDU1215 – 120V 15A Rackmount PDU, 12 Outlets

Product Overview

The Eaton PDU1215 is a 120V, 15 amp power distribution unit built for versatile mounting in rack enclosures, network closets, and under-counter installations. It provides 12 rear-facing NEMA 5-15R outlets, a 15-foot front-facing power cord, and a 15 amp circuit breaker in a rugged all-metal case that uses just 1U of rack space. Detachable mounting flanges support wallmount, under-counter, or 1U/0U rackmount configurations, making it a flexible power distribution option for data center and network equipment.

Product Description

This PDU offers unfiltered electrical pass-through with no power switch, which makes it well suited to distributing alternate waveform UPS or generator power to rack-mounted equipment without introducing an additional point of failure. Its 1U rack-mount design occupies minimal vertical space in a 19-inch rack, and the unit can alternatively be mounted 0U in the cable management area of many rack enclosures, effectively adding outlet capacity without consuming usable rack units. The 12 rear-facing NEMA 5-15R outlets accommodate a full complement of switches, servers, and other 120V equipment, while the single front-facing 15-foot AC power cord simplifies routing to an upstream UPS or wall circuit. A 15 amp circuit breaker and grounding lug provide basic overcurrent protection and proper grounding for the connected equipment. The compact 4.5-inch depth housing keeps the unit unobtrusive in shallow cabinets or under-desk installations, and detachable mounting flanges allow it to be configured for wallmount, under-counter, or rack-mount use depending on the installation. This flexibility makes the PDU1215 a practical fit for network closets, small data centers, and server rooms that need reliable, unfiltered power distribution without the cost or complexity of a metered or switched PDU. It is best specified where basic, dependable outlet distribution is the priority rather than remote monitoring or outlet-level switching.

Key Features

• 12 NEMA 5-15R Outlets — Provides ample rear-facing outlet capacity for racked switches and servers.
• 1U/0U Flexible Mounting — Uses only 1 rack space, or can be mounted 0U in the cable management area.
• Detachable Mounting Flanges — Configurable for wallmount, under-counter, or rackmount installation.
• 15 Amp Circuit Breaker — Provides overcurrent protection along with a grounding lug for proper equipment grounding.
• Rugged All-Metal Case — Compact 4.5-inch depth housing built for durability in rack and network closet environments.
• Unfiltered Pass-Through — No power switch, making it well suited for distributing UPS or generator power to rack equipment.

Technical Specifications
