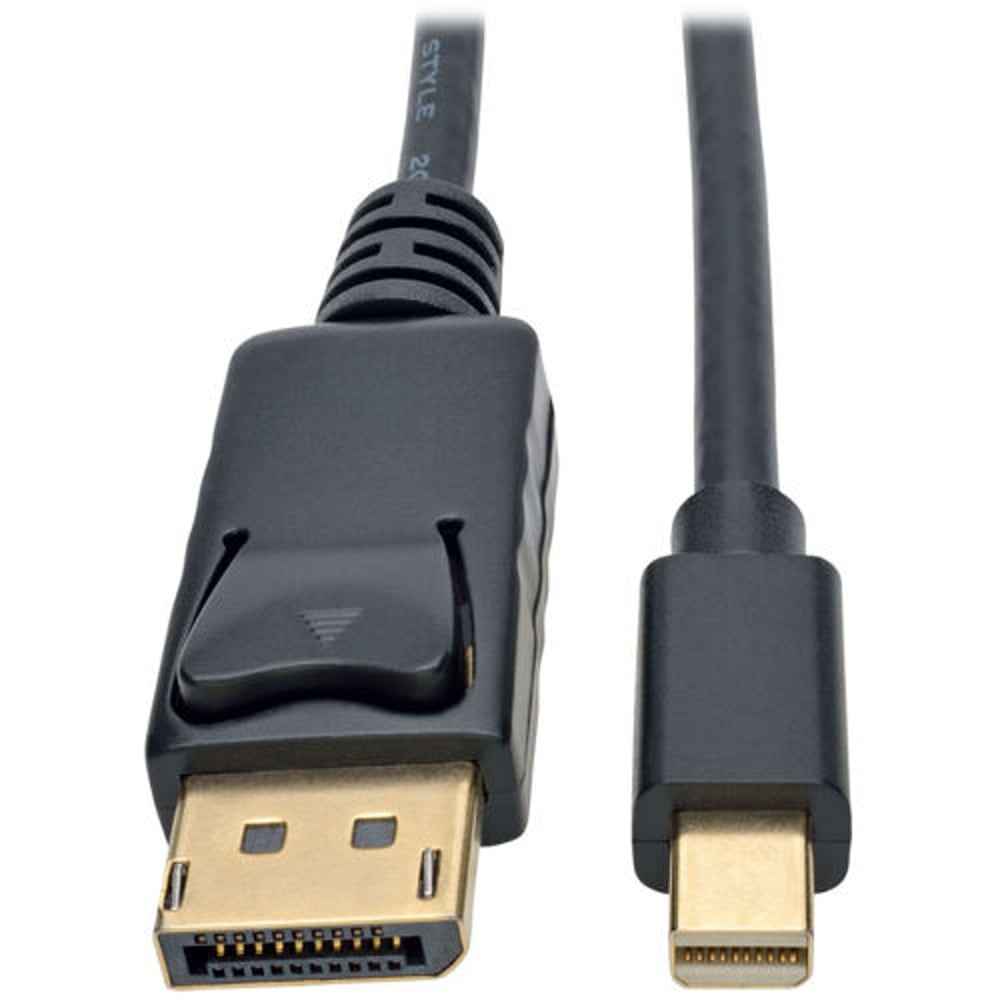

Eaton P583-010-BK – Mini DisplayPort to DisplayPort 4K Cable, 10ft

Product Overview

The Eaton P583-010-BK is a 10 ft mini DisplayPort to DisplayPort adapter cable built for commercial AV and IT installations that require a reliable 4K video connection between a laptop or workstation and a display, projector, or AV switcher. This mini displayport to displayport cable supports 4K resolution at 60Hz, making it a dependable choice for conference room and huddle room video runs where signal integrity matters. The DP latching connector on the display end locks the connection in place, reducing the risk of accidental disconnects during live meetings or presentations. Integrators specify this cable for laptop docking station hookups, video wall staging, and general commercial-grade AV cable runs where a secure, repeatable connection is required.

Product Description

This adapter cable connects a mini DisplayPort output, common on laptops, docking stations, and compact workstations, to a standard DisplayPort input on monitors, projectors, and AV switching equipment. It supports resolutions up to 3840 x 2160 (4K) at 60Hz and complies with DisplayPort 1.2 bandwidth standards, delivering enough throughput for sharp text and video during presentations, training sessions, and collaboration in a conference room or multi-purpose room. The DisplayPort connector uses a locking design that clicks into place and requires a release before it can be pulled free, which is a meaningful detail for installations where a cable run gets bumped, stepped on, or tugged during a room reset. The cable is a passive, male-to-male design with gold-plated connectors and contacts for consistent conductivity over the life of the installation. It carries a PVC jacket with a VW-1 flame rating, supports bidirectional signal transmission, and is EDID compatible with multi-stream transport (MST) support for multi-monitor configurations. HDCP 2.2 compliance means it passes protected 4K content without dropouts, which matters for AV setups pulling from streaming devices or protected media sources. At 10 feet, the cable gives integrators enough slack to route from a table box or floor box to a display or switcher without adding a coupler, which keeps the signal path clean in a commercial deployment. This is a straightforward, purpose-built cable for IT and AV teams that need dependable mini DisplayPort to DisplayPort connectivity without introducing an active adapter or additional point of failure into the signal chain.

Key Features

• 4K 60Hz Support — Passes 3840 x 2160 resolution at 60Hz for sharp video and text during presentations and collaboration sessions.
• DP Latching Connector — The DisplayPort end locks into the receiving port, preventing accidental disconnection in high-traffic conference room and huddle room environments.
• DisplayPort 1.2 Compliant — Supports HBR2 bandwidth up to 21.6 Gbps for stable signal transmission on longer commercial AV cable runs.
• HDCP 2.2 Compliant — Passes protected 4K content without interruption, important for rooms sourcing from streaming or protected media devices.
• MST and EDID Support — Compatible with multi-stream transport for multi-monitor setups and EDID handshaking for correct display detection.
• Gold-Plated Connectors — Resists corrosion and maintains signal conductivity over repeated connect/disconnect cycles common in shared meeting spaces.
• VW-1 Rated PVC Jacket — Flame-rated jacket construction suited for general commercial installation environments.
• Lifetime Limited Warranty — Backed by Eaton's worldwide lifetime limited warranty for long-term commercial deployment confidence.
