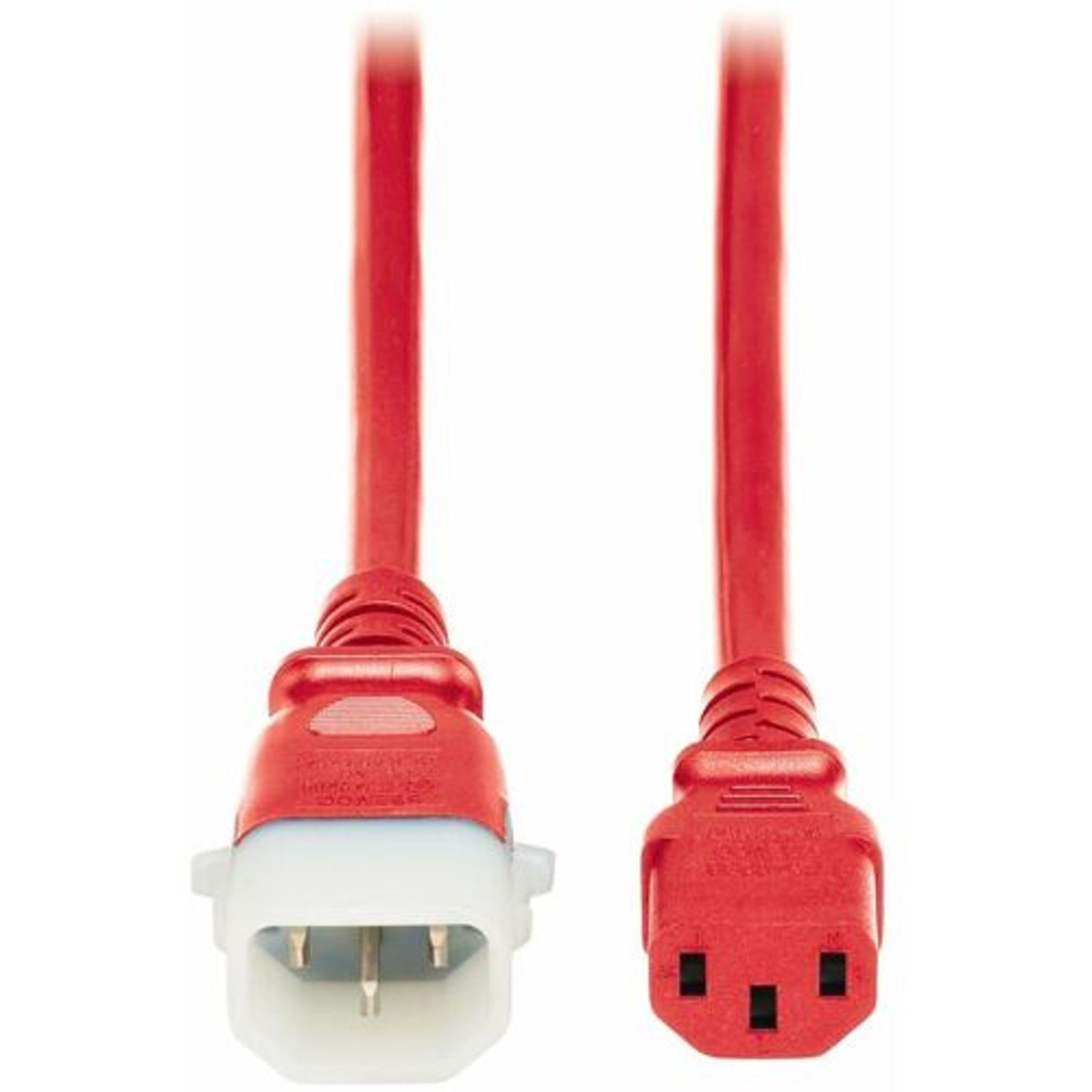

Eaton P005-E03-ARD-6 – C13 to C14 Heavy-Duty PDU Cords, 6-Pack

Product Overview

The Eaton P005-E03-ARD-6 is a six-pack of C13-to-C14 PDU power cords built for data center and server room deployments that need a heavy-gauge, high-current connection between rack PDUs and network devices. Each cord in this pack uses 14 AWG wire and a locking P-Lock C14 connector rated for 15A at 250V, making it a reliable choice for large-scale server rollouts and equipment refreshes. Supplied in red for circuit identification, this power cord pack is sized for close-quarter rack connections at 3 ft. (0.9 m).

Product Description

Standard C13-to-C14 jumper cords are often too light-gauge for equipment that draws sustained high current, which is where the P005-E03-ARD-6 fits in. Its 14 AWG conductors are rated for heavier loads than typical 18 AWG cords, reducing voltage drop and heat buildup on densely populated PDU circuits. The P-Lock C14 connector locks into the PDU outlet, preventing accidental disconnects in racks with tight cable management or frequent technician access. Rated 15A at 250V, the cord is compatible with standard rack PDUs and server power supplies using an IEC C13/C14 interface. Because the pack includes six identical 3 ft. red cords, it is well suited to large-scale rack builds, data center rollouts, and colocation deployments where dozens of servers need to be connected to PDUs quickly and consistently. Color-coded red cords also make it easier for technicians to trace primary versus redundant power feeds across dual-corded servers and network switches. This cord pack is a practical companion purchase alongside any rack PDU or basic power distribution unit already installed in the cabinet.

Key Features

• 14 AWG Heavy-Gauge Wire — Thicker conductors support higher current draw and reduce voltage drop compared to standard jumper cords.
• P-Lock C14 Connector — The locking connector helps prevent accidental disconnects in high-traffic rack environments.
• 15A, 250V Rating — The cord safely supports demanding server and networking power loads.
• Red Cable Color — Red jacketing simplifies circuit identification and A/B power feed tracing in dual-corded racks.
• Six-Pack Quantity — A single order supplies enough cords for a full rack or small server rollout without repeat purchases.

Technical Specifications
