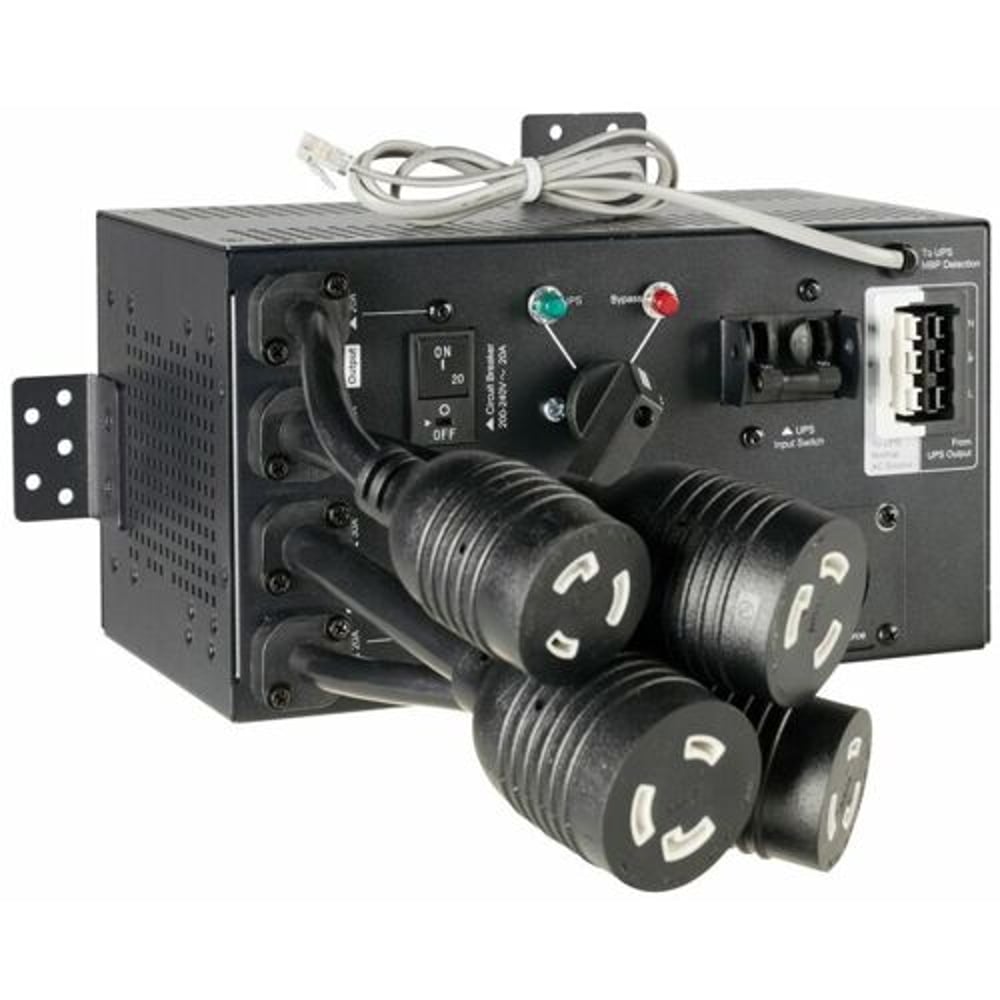

Eaton MBP6K208G2 – 9PX G2 Maintenance Bypass 3-6kVA

Product Overview

The Eaton MBP6K208G2 is a 0U rack-mount maintenance bypass unit built for commercial UPS installations that require service continuity during battery or module replacement. It pairs directly with Eaton 9PX G2 UPS systems in the 3kVA to 6kVA range, making it a core component of a resilient data center and network closet power protection design. Integrators specifying a rack-mount maintenance bypass for a 9PX G2 deployment use this unit to route load through a manual bypass path without dropping power to connected equipment. It installs behind the UPS in a standard equipment rack, keeping the front-of-rack footprint unchanged in server room and network closet installations.

Product Description

The MBP6K208G2 is an Eaton 9PX G2 maintenance bypass accessory designed to let facilities and IT teams service a 3kVA to 6kVA UPS without interrupting power to the load. During UPS maintenance, battery replacement, or firmware updates, the bypass switch routes utility power directly to connected equipment, so critical infrastructure in a server room or data center stays online. The unit mounts in a 0U rear-mount configuration, meaning it does not consume front rack space, which matters in dense network closet and data center rack layouts where every rack unit is accounted for. Output is provided through two NEMA L6-20R and two NEMA L6-30R receptacles, plus a hardwired output option, giving integrators flexibility when terminating to PDUs, downstream equipment, or hardwired branch circuits. Input accepts either an L6-30P plug or a hardwired connection, so electrical contractors can match the bypass to existing wiring during a commercial UPS installation. The unit ships with a rack mounting kit and cable glands, simplifying integration into new or existing rack elevations. Because the bypass carries the full 6kVA/6kW output capacity of the paired 9PX G2 UPS at 208V, 220V, 230V, or 240V nominal output, it is suited to mixed-voltage commercial and international deployments. This maintenance bypass is a practical addition for any data center, network closet, or server room build-out where planned maintenance cannot be allowed to interrupt uptime.

Key Features

• 0U Rear-Mount Design — Installs behind the UPS in the rack without consuming additional front rack units, preserving space in dense data center and network closet elevations.
• Maintenance Without Downtime — Routes load through a manual bypass path during UPS servicing, battery replacement, or firmware updates so connected equipment stays powered.
• Flexible Output Termination — Two NEMA L6-20R and two NEMA L6-30R outlets plus a hardwired output option support PDUs, rack equipment, or direct hardwired circuits.
• Flexible Input Connection — Accepts an L6-30P plug or hardwired input, matching the unit to existing branch circuit wiring during commercial installation.
• Multi-Voltage Output Support — Supports nominal output voltages of 208V, 220V, 230V, and 240V at 50/60 Hz for broad commercial and international compatibility.
• Full 6kVA/6kW Capacity — Rated to carry the full output capacity of paired Eaton 9PX G2 UPS systems in the 3kVA to 6kVA range.
• Complete Mounting Kit Included — Ships with rack mounting hardware and cable glands for a clean commercial installation.
• 3-Year Limited Warranty — Backed by Eaton's 3-year limited warranty covering parts and electronics.

Typical Applications

• Data center
• Network closet
• Server room

Technical Specifications

Frequently Asked Questions

• Which UPS systems is the MBP6K208G2 compatible with? The MBP6K208G2 is designed for Eaton 9PX G2 UPS systems in the 3kVA to 6kVA range. Confirm your exact UPS model number against Eaton's compatibility documentation before ordering.
• Does the maintenance bypass require an electrician to install? Yes. Because the unit supports hardwired input and output connections and ties into building branch circuits, installation should be performed by a licensed electrician familiar with commercial UPS installations.
• Can I service the UPS without shutting down connected equipment? Yes. That is the core function of a maintenance bypass. Once load is transferred to bypass, the UPS can be powered down for battery replacement, firmware updates, or repair while connected equipment continues to receive utility power.
• How much rack space does this unit require? The MBP6K208G2 is a 0U, rear-mount unit. It mounts behind the UPS and does not consume additional front rack units in the elevation.
• What output receptacles are available? The unit provides two NEMA L6-20R outlets, two NEMA L6-30R outlets, and a hardwired output option, allowing integration with PDUs or direct equipment connections.
• What is the input connection type? Input can be terminated with the included L6-30P plug or wired directly as a hardwired connection, depending on the electrical infrastructure at the installation site.
• What warranty does the MBP6K208G2 carry? Eaton backs the MBP6K208G2 with a 3-year limited warranty covering parts and electronics.
• Do you offer support for commercial UPS and maintenance bypass integration? Creation Networks supports AV/IT integrators and facilities teams with product selection and compatibility questions for commercial power protection deployments. Contact us for help matching a maintenance bypass to your specific UPS system.
