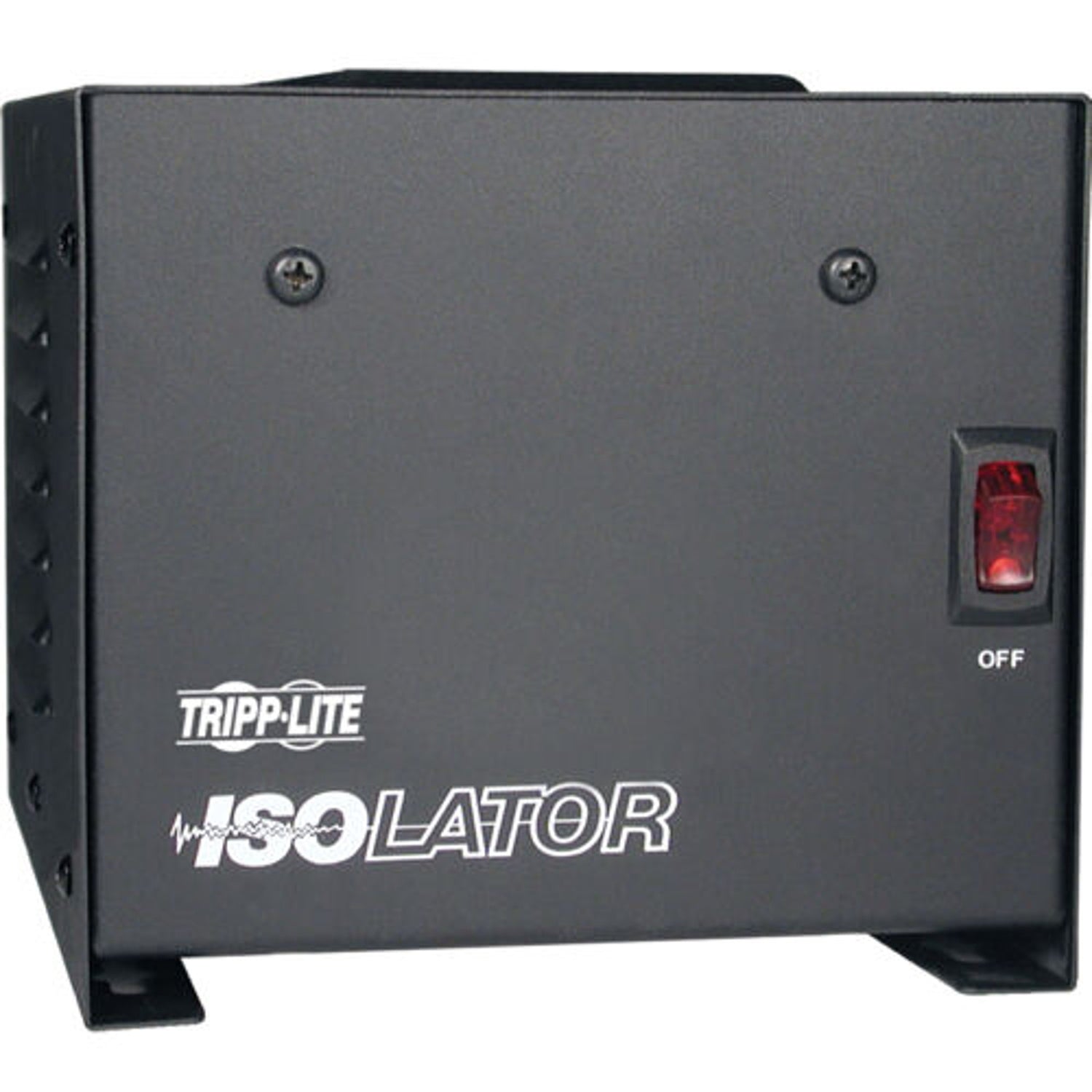

Eaton IS500 – 500W Isolation Transformer Power Conditioner

Product Overview

The Eaton IS500 Isolator Series is a 120V, 500-watt isolation transformer-based power conditioner built to protect sensitive electronics from line noise, EMI/RFI and surge conditions. It provides complete electrical isolation from the input AC line along with continuous noise filtering, making it a fit for industrial, medical, office and network environments where clean, stable power is a requirement rather than a convenience. Facilities managers and system integrators specify isolation transformer power conditioners like the IS500 as an alternative to installing dedicated circuits or making site electrical upgrades. With four widely spaced output receptacles and a rugged all-metal housing, the IS500 installs as a tower or wall-mount unit near the equipment it protects.

Product Description

The IS500 isolation transformer power conditioner uses an internal low-impedance isolation transformer with a Faraday Shield to provide 100% isolation from the input AC line, protecting connected equipment from utility switching transients, background spikes generated by other on-site loads, and utility- or lightning-related surge conditions. Secondary neutral-to-ground bonding eliminates common mode noise, giving sensitive equipment an isolated ground reference without the cost of running a dedicated circuit. Additional surge suppression components at both the line input and transformer output work alongside the full line isolation to deliver continuous filtering across a full range of power line noise. Because the active transformer filtering has no wearable parts, it maintains performance over time even in demanding power environments, reducing 6000V IEEE587 Cat A and B ring wave and combination wave test surges to only 0.5V common mode. The IS500 delivers 500 watts of capacity through four widely spaced output receptacles, paired with a 6-foot power cord, circuit breaker overload protection and a lighted power switch for at-a-glance status. The rugged all-metal housing ships ready for either upright tower placement or wall mounting, making it a practical fit for network closets, server rooms, medical equipment rooms and industrial control areas where floor or wall space is at a premium. System integrators specifying power conditioning for network racks or medical device carts use the IS500 to protect equipment without the expense of dedicated electrical infrastructure.

Key Features

• Full Line Isolation — An internal isolation transformer with Faraday Shield provides 100% isolation from the input AC line.
• Common Mode Noise Elimination — Secondary neutral-to-ground bonding removes common mode noise and provides an isolated ground reference.
• Surge Suppression — Line input and transformer output surge components reduce 6000V test surges to only 0.5V common mode.
• 500W Capacity, 4 Outlets — Delivers 500 watts through four widely spaced output receptacles for connected equipment.
• Circuit Breaker Protection — Overload protection and a lighted power switch help prevent equipment damage and provide status visibility.
• Tower or Wall-Mount Housing — A rugged all-metal unit ships ready for upright tower placement or wall mounting to fit tight equipment spaces.

Typical Applications

• Network closet power conditioning
• Server room equipment protection
• Healthcare/hospital equipment rooms

Technical Specifications

Frequently Asked Questions

Does the IS500 replace the need for a dedicated circuit?

In many cases, yes. The isolation transformer and grounding design are intended as a lower-cost alternative to installing a dedicated circuit or making site electrical upgrades.

Can this unit be rack- or wall-mounted in a network closet?

The IS500 ships ready for either upright tower placement or wall mounting, making it suitable for network closets and equipment rooms with limited floor space.

What kind of equipment benefits most from this conditioner?

Sensitive electronics in industrial, medical, office and network environments that are vulnerable to line noise, EMI/RFI or surge conditions are the primary use case.

How many devices can be connected at once?

The unit provides four widely spaced output receptacles for connected equipment within the 500W capacity.

What warranty comes with the IS500?

The IS500 includes a 2-year manufacturer warranty; contact Creation Networks for details on any extended coverage options.

Can Creation Networks help determine if the IS500 is sized correctly for our load?

Yes, our team can review your connected equipment's power requirements to confirm the IS500's 500W capacity is an appropriate fit.
