Eaton EVMOGU23X – Universal-Input 0U Metered Outlet PDU

Product Overview

The Eaton EVMOGU23X is a universal-input, metered-by-outlet rack PDU built for data centers and server rooms that need granular power visibility down to the individual receptacle. Supporting 208V through 415V input and up to 23kW capacity, this 0U vertical PDU is designed for global deployments where a single SKU needs to work across multiple regional voltage standards. Commercial AV/IT integrators and facilities managers evaluating a metered outlet rack PDU for capacity planning or billback purposes will find this model's outlet-level metering and toolless mounting well suited to high-density server racks.

Product Description

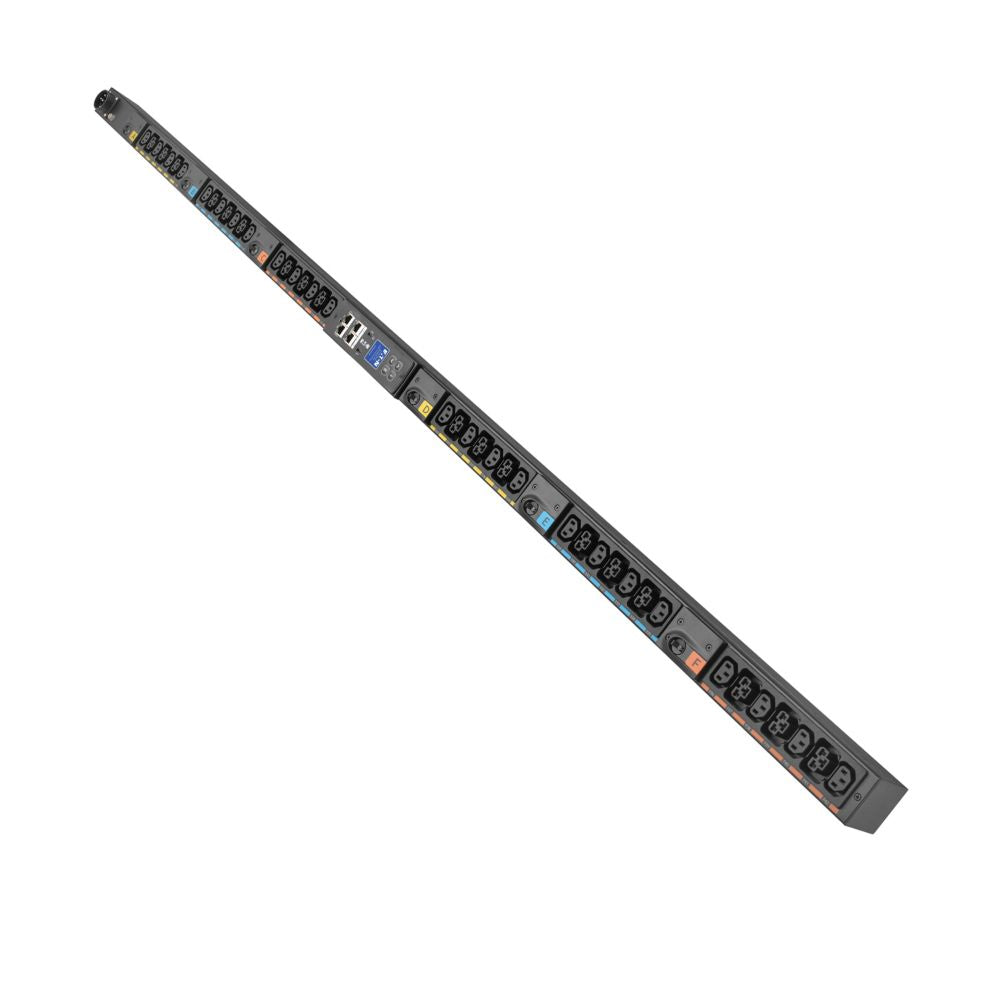

The EVMOGU23X (see the accompanying product photo for the vertical strip layout and outlet spacing) is a 3-phase, universal-input rack PDU from Eaton's ePDU G4 metered-outlet family, indicated by the "EVMO" naming convention Eaton uses for metered-outlet ePDU G3/G4 platform products. It accepts a wide input range — 208, 220, 230, 240, 400, or 415 VAC — through a universal connection point, with current ratings from 16A up to 55A depending on the cordset selected (63A peak), supporting an output range of roughly 5kW to 17.3kW depending on configuration, with a stated maximum capacity of 23kW/23kVA for the platform. The unit provides 42 outlets total: 24 C13 receptacles for standard IT equipment and 18 C39 receptacles that accept both C14 and C20 plugs, giving flexibility for mixed equipment loads. An integrated LCD pixel display shows outlet-level current, voltage, power, and energy readings directly at the PDU, while a Gigabit network module with Ethernet and serial ports enables SNMP-based remote monitoring and environmental sensor support. Six 2-pole 20A circuit breakers protect the outlet banks, and measurement accuracy is rated at plus/minus 1% for current, voltage, and power readings. The 0U vertical, toolless-mounting aluminum housing installs in the rack's rear channel without consuming rack units, making it a practical fit for dense colocation or enterprise server racks where per-outlet power accounting matters for chargeback or capacity forecasting.

Key Features

• Universal Voltage Input — Supports 208-415V input, simplifying global PDU standardization across regions.
• Outlet-Level Metering — LCD display and network reporting show current, voltage, power, and energy per outlet.
• 42-Outlet Configuration — 24 C13 and 18 C39 receptacles support a wide range of connected equipment.
• 0U Vertical, Toolless Mounting — Aluminum housing with toolless buttons installs quickly without consuming rack units.
• Gigabit Network Module — Ethernet and serial connectivity enable SNMP monitoring and environmental sensor integration.
• High Measurement Accuracy — Plus/minus 1% accuracy on current, voltage, and power supports reliable capacity planning.
• Six 2-Pole 20A Breakers — Protects outlet banks and isolates faults without taking down the entire PDU.
• Up to 23kW Capacity — Supports high-density racks with headroom for future equipment additions.
